£39.82
excl. VAT
£47.78 incl. VAT
£47.78
incl. VAT
£39.82 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 6 |
| FWorking width | 25 mm |
| Hub diameter | 92 mm |
| Hub width | 20 mm |
| JChamber diameter | 156 mm |
| Lock type | 1610 |
| Material | Cast iron |
| Max. bore diameter | 42 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 5 mm |
| Number of grooves | 1 |
| OPulley outside diameter | 195.5 mm |
| PPitch diameter | 190 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245677 |
|---|---|
| Unit of measure | EA |
| Weight | 2462 g |
| Dimensions | 195 × 195 × 25 mm |
| Dangerous goods | No |
You might also like

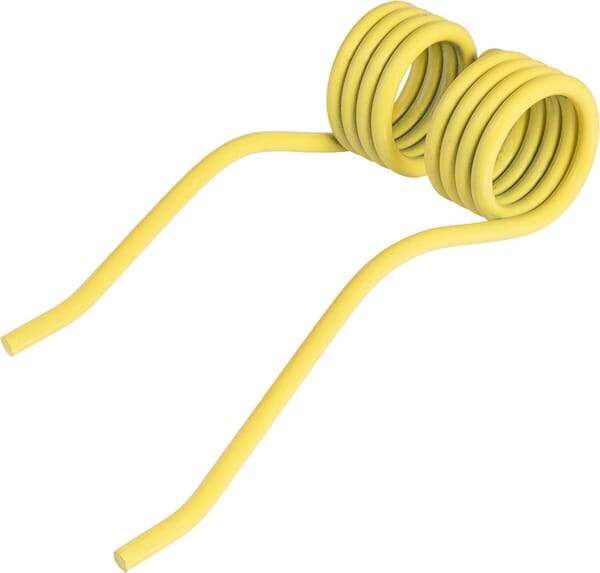

BPA000131520
Kramp Rotary tine yellow RH suitable for Farendlose 511066KR
£20.73 excl.
£24.88 incl.
Backorder available
Usually ships within 3–8 weeks

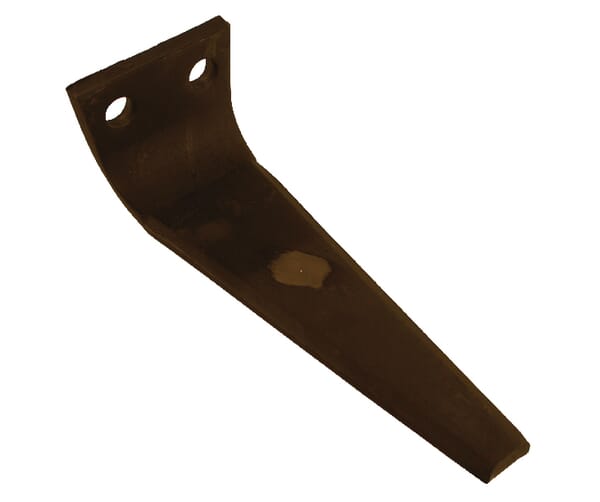

BPA000297431
Kramp Power harrow tine LH/RH, length 305mm, suitable for Top, KE0404
£20.25 excl.
£24.30 incl.
In stock
Expected to ship on Friday 18 September

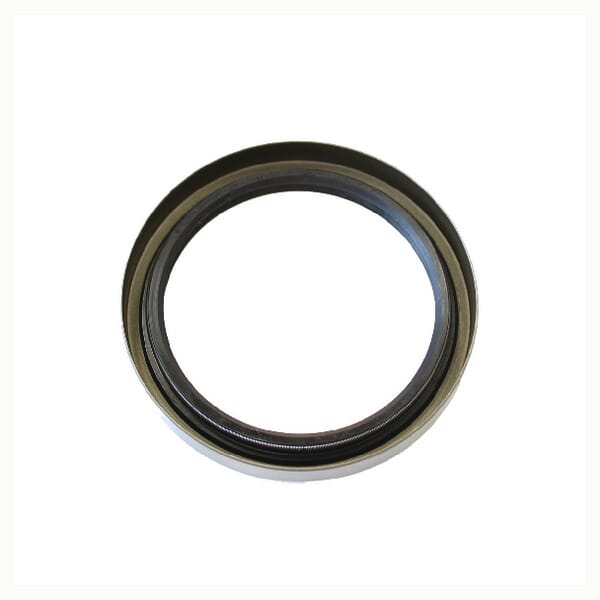

BPA000327022
Kramp Seal NWS00571
£10.95 excl.
£13.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318220
Kramp Bearing NWB06354
£19.73 excl.
£23.68 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000204785
Kramp Countersunk screw DIN966 M3x10 steel zinc-plated 4.8 966310P100
£0.04 excl.
£0.05 incl.
In stock
Expected to ship on Friday 18 September

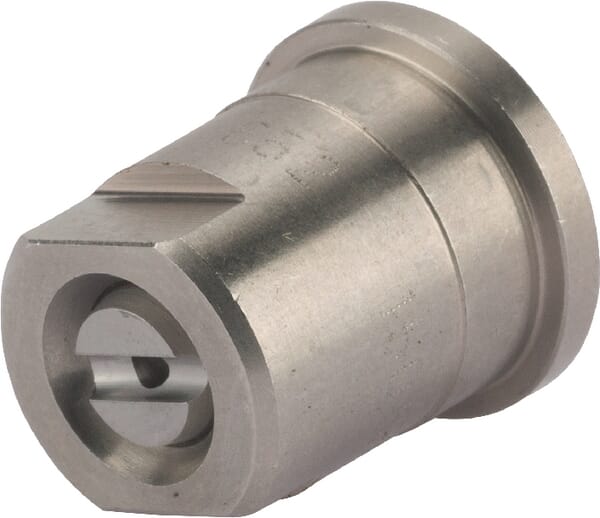

BPA000284124
