£10.12
excl. VAT
£12.14 incl. VAT
£12.14
incl. VAT
£10.12 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Bore diameter | 10 mm |
| BWorking width | 16 mm |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| dMax. bore diameter | 27 mm |
| Hub diameter | 50 mm |
| LHub width | 28 mm |
| Lock type | n/a |
| Material | Cast iron |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 67 mm |
| PPitch diameter | 63 mm |
| Pulley type | 1 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 467 g |
| Dimensions | 68 × 68 × 24 mm |
| Dangerous goods | No |
You might also like
BPA000173757

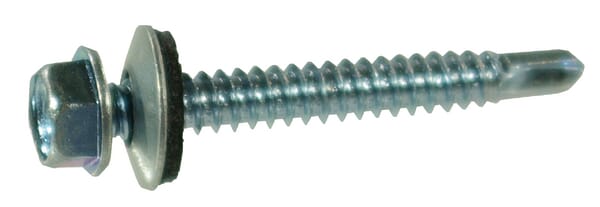

Kramp Self tapping screw 6.3x63mm, 10mm flange hex head, DIN 7504 7504KNEO6363P100
£0.24 excl.
£0.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000119458

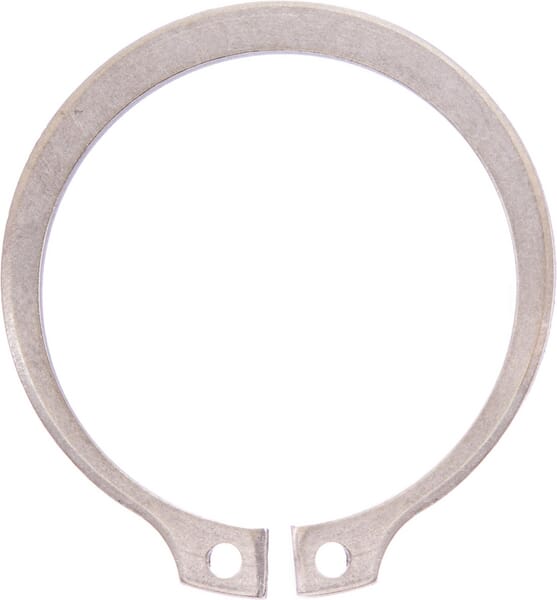

Kramp Circlip external 38x1.8mm DIN471 Stainless steel 47139RVS
