£164.78
excl. VAT
£197.74 incl. VAT
£197.74
incl. VAT
£164.78 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| ECore disc thickness | 25 |
| FWorking width | 50 mm |
| Hub diameter | 159 mm |
| Hub width | 51 mm |
| JChamber diameter | 280 mm |
| KHub offset 1 | 0.5 mm |
| Lock type | 3020 |
| Material | Cast iron |
| Max. bore diameter | 75 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 0.5 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 320.5 mm |
| PPitch diameter | 315 mm |
| Pulley type | 7 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486246049 |
|---|---|
| Unit of measure | EA |
| Weight | 9614 g |
| Dimensions | 320 × 320 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000309650

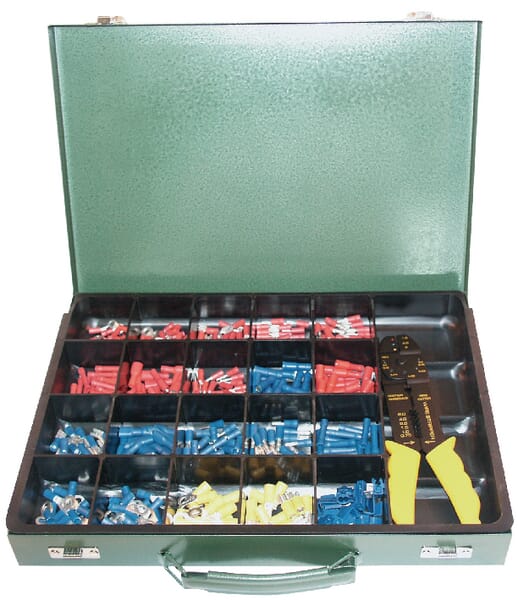

Kramp Assortment box Crimp connectors with pliers, LAA2000KR
£77.12 excl.
£92.54 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000355486
Kramp Side window RT6005010162N
£91.21 excl.
£109.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000271217

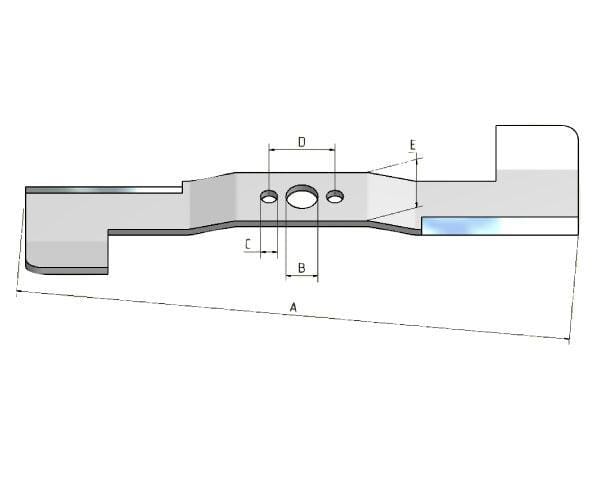

Kramp Blade, L: 425mm, round hole: diameter 14.5 suitable for Iseki by FGP012869
£16.03 excl.
£19.24 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000302332

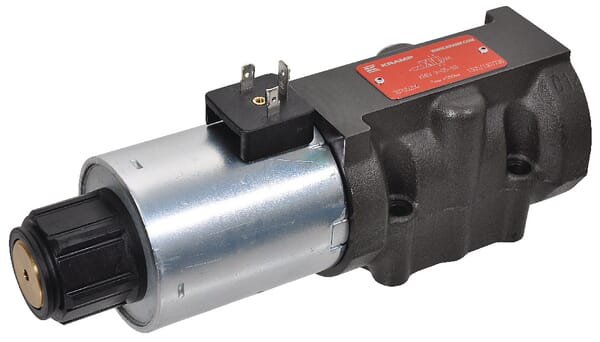

Kramp Electrical valve NG10 KREV05C3B012C
£230.48 excl.
£276.58 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404006

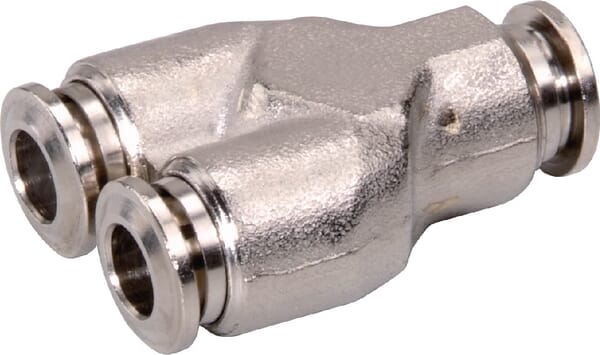

Kramp Y piece push-in connector 4mm YC4B
