£24.38
excl. VAT
£29.26 incl. VAT
£29.26
incl. VAT
£24.38 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 13 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | A, SPA, AVX13 |
| Details | With taperlock bore |
| FWorking width | 50 mm |
| Hub width | 25 mm |
| JChamber diameter | 55 mm |
| KHub offset 1 | 25 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 90.5 mm |
| PPitch diameter | 85 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB13 - 71 mm, For SPA - 90 mm, For XPA - 71 mm |
| Unit | Each |
Logistics
| EAN | 4014486245035 |
|---|---|
| Unit of measure | EA |
| Weight | 1012 g |
| Dimensions | 90 × 90 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000269308
Kramp Elbow 90° 8" 219,1x6,3mm FG9008
£78.64 excl.
£94.37 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000060085
Kramp Skim share right hand suitable for Besson 19114N
£16.28 excl.
£19.54 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000334392
Kramp O-ring 123.42x3.53mm 90 shore OR1234235390P001
£1.73 excl.
£2.08 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000364412

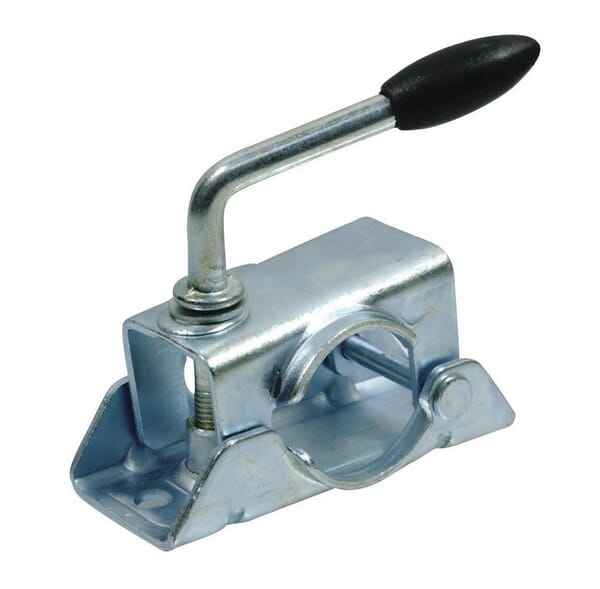

Kramp Mounting clamp for STR1620 STR162002
£4.13 excl.
£4.96 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000268783
Kramp Weld-on reducer Stainless steel 33.7-26.9mm FG2471RVS
£4.21 excl.
£5.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000128204

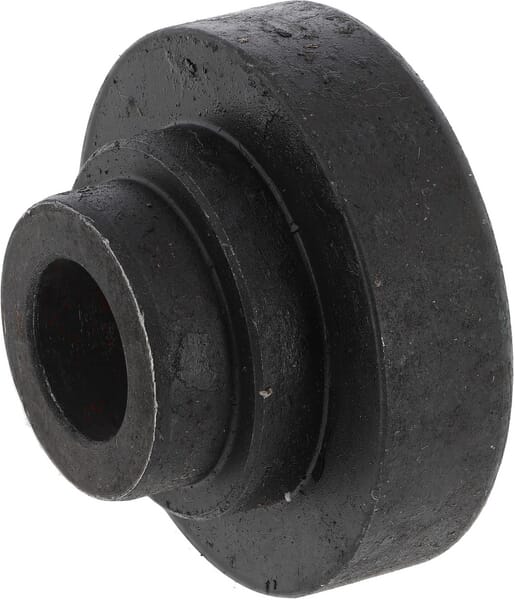

Kramp Ring 502847N
