£141.54
excl. VAT
£169.85 incl. VAT
£169.85
incl. VAT
£141.54 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 17 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | B, SPB |
| Details | With taperlock bore |
| ECore disc thickness | 15 |
| FWorking width | 63 mm |
| Hub diameter | 117 mm |
| Hub width | 45 mm |
| JChamber diameter | 181 mm |
| Lock type | 2517 |
| Material | Cast iron |
| Max. bore diameter | 60 mm |
| Max. speed | 30 m/s |
| MHub offset 2 | 18 mm |
| Number of grooves | 3 |
| OPulley outside diameter | 231 mm |
| PPitch diameter | 224 mm |
| Pulley type | 6 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB17 - 112 mm, For SPB - 140 mm, For XPB - 112 mm |
| Unit | Each |
Logistics
| EAN | 4014486247114 |
|---|---|
| Unit of measure | EA |
| Weight | 7478 g |
| Dimensions | 230 × 230 × 63 mm |
| Dangerous goods | No |
You might also like
BPA000087617
Kramp Saw chain .325" 1.5mm 64 DL 32515C64KR
£18.62 excl.
£22.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000157728

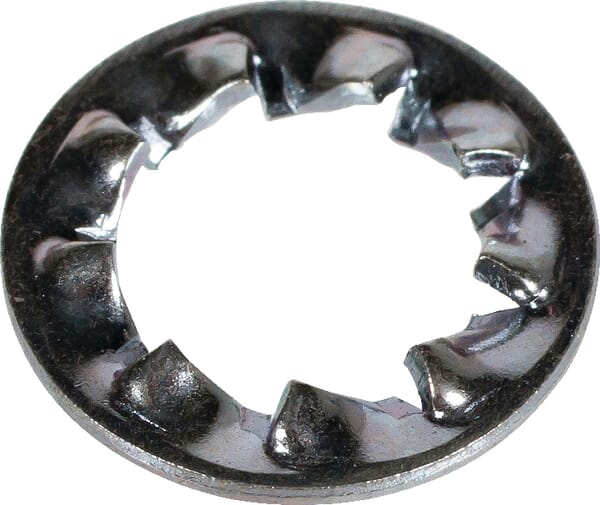

Kramp Serrated lock washer M10x18x0.9mm, Steel Zinc-plated DIN 6798 6798J10
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Friday 18 September
BPA000270808
Kramp Blade L: 464mm, round hole: diameter 10 suitable for Westwood by FGP011025
£32.38 excl.
£38.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000113422

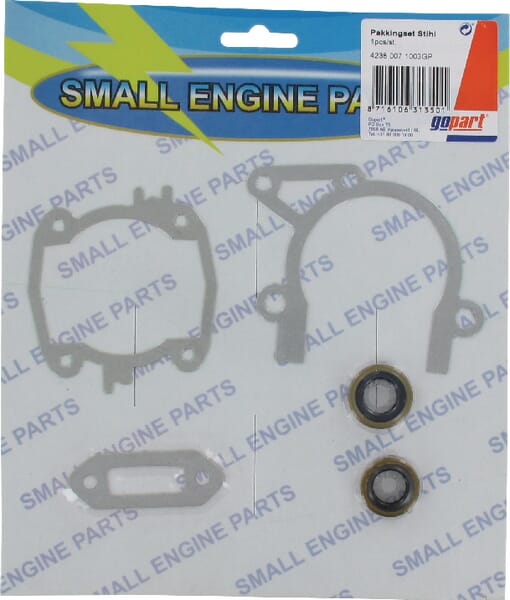

Kramp Gasket set 42380071003KR
£11.51 excl.
£13.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000361219
Kramp Tie rod end SHP551KR
£125.34 excl.
£150.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000158177

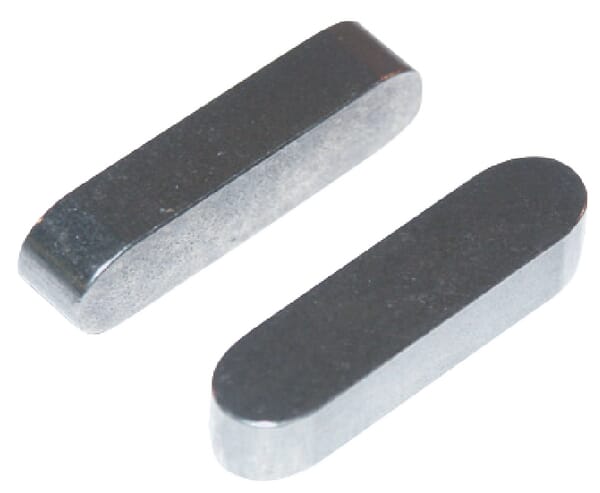

Kramp Feather key 14x9x110 6885149110
