£18.11
excl. VAT
£21.73 incl. VAT
£21.73
incl. VAT
£18.11 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 40 mm |
| Hub width | 25 mm |
| JChamber diameter | 51 mm |
| KHub offset 1 | 15 mm |
| Lock type | 1210 |
| Material | Cast iron |
| Max. bore diameter | 32 mm |
| Max. speed | 30 m/s |
| Number of grooves | 3 |
| OPulley outside diameter | 79 mm |
| PPitch diameter | 75 mm |
| Pulley type | 8 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249859 |
|---|---|
| Unit of measure | EA |
| Weight | 571 g |
| Dimensions | 80 × 80 × 40 mm |
| Dangerous goods | No |
You might also like
BPA000066805

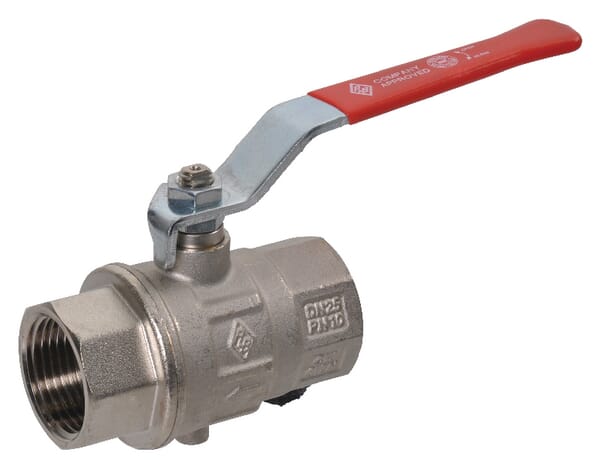

Kramp Ball vlv 1" in/in+breather 217924
£76.08 excl.
£91.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000329702
Kramp O-ring 42x2.5mm 70 shore 10x OR42250P010
£2.64 excl.
£3.17 incl.
In stock
Expected to ship on Friday 18 September
BPA000318518
Kramp Bearing NWB06664
£35.45 excl.
£42.54 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000079765

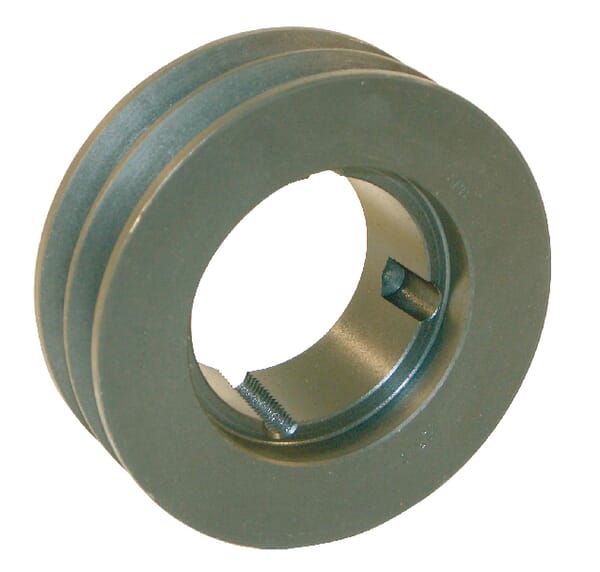

Kramp V-belt pulley 2 groove B or SPB diameter 307mmfor taperlockbush 2517 300B2TL
£122.85 excl.
£147.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000151379
Kramp Star head M10x50 L=30mm 6336S105030
£4.63 excl.
£5.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000269050

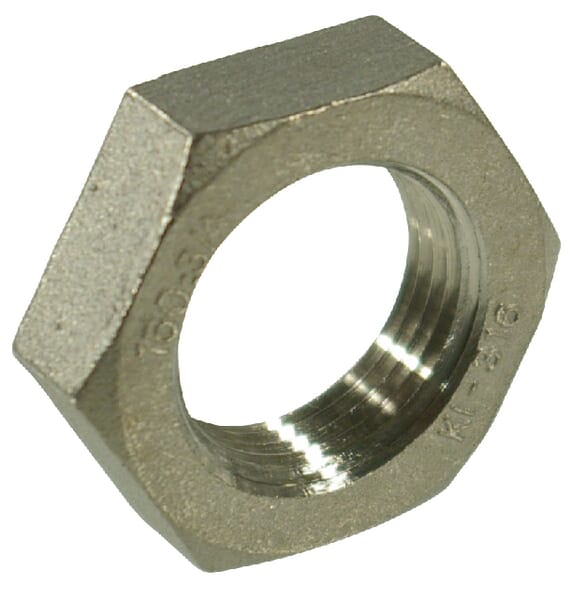

Kramp Fixing nut S.S. 2" FG3122RVS
