About this product

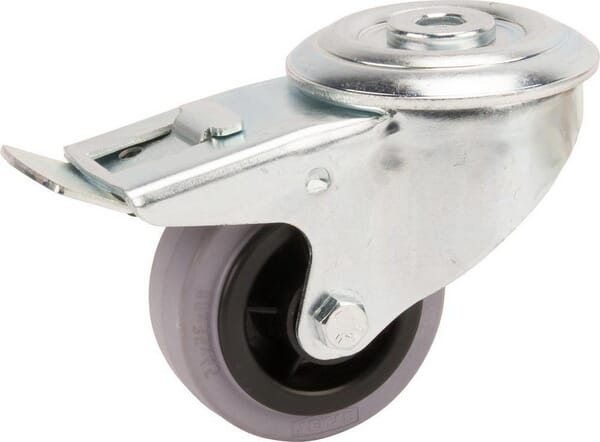

A swivel caster wheel with 150 mm diameter rubber tread and 32 mm width, rated for 100 kg dynamic load capacity and supplied as a single unit. The wheel features a steel body with ball bearing, single bolt hole attachment (11 mm centre hole), and integrated brake. Operating temperature range is −20 °C to +60 °C. Total height is 185 mm with 36 mm offset. The caster conforms to EN 12530 and weighs 0.981 kg. Dimensions are 180 mm length × 165 mm width × 60 mm height. EAN 4031582050684.
Product details
| Bearing type | Ball |
|---|---|
| Body material | Steel |
| Center hole diameter | 11 mm |
| Dynamic load capacity | 100 kg |
| EN Standard | 12530 |
| Fitting type | Single bolt hole |
| Max working temperature | 60 °C |
| Min working temperature | -20 °C |
| Offset | 36 mm |
| Total height | 185 mm |
| Unit | Each |
| Weight | 0.981 kg |
| Wheel diameter | 150 mm |
| Wheel material | Rubber |
| Wheels type | Swivel wheel |
| Wheel width | 32 mm |
| With break | Yes |
Logistics
| EAN | 4031582050684 |
|---|---|
| Unit of measure | EA |
| Weight | 995 g |
| Dimensions | 180 × 165 × 60 mm |
| Dangerous goods | No |
