£28.62
excl. VAT
£34.34 incl. VAT
£34.34
incl. VAT
£28.62 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass opening pressure | 1.75 BAR |
|---|---|
| Colour | White |
| Filter mounting thread diameter | 3/4 Inch |
| Filter mounting thread type | BSP |
| Indicator port thread diameter | 1/8 Inch |
| Indicator port type | Thread |

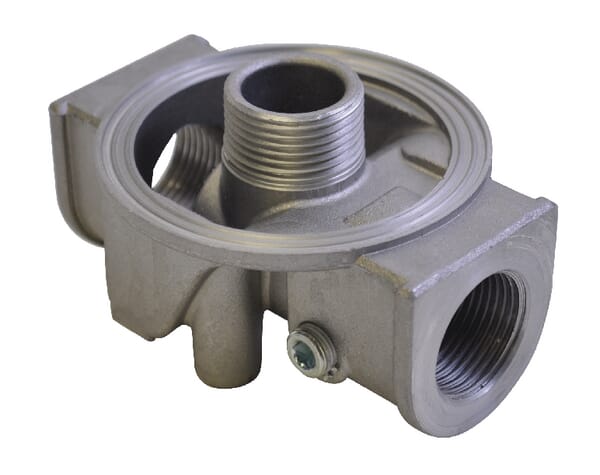

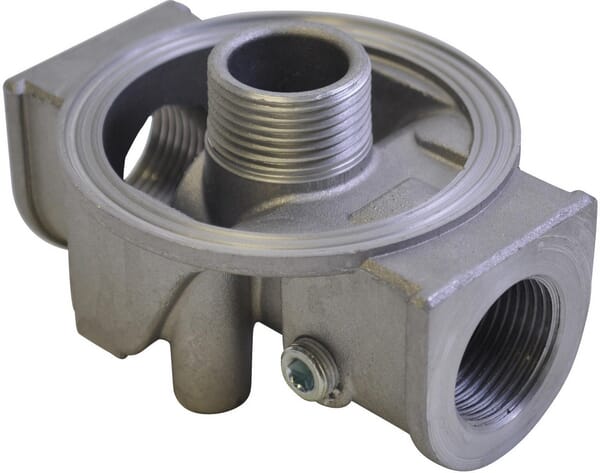

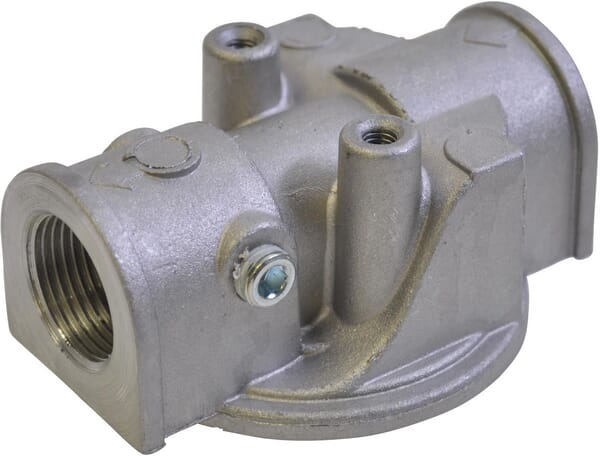

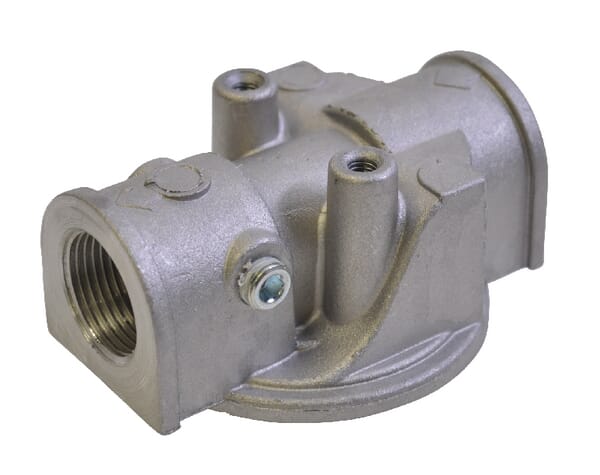

| Long description | The MPS spin-on filters are used as safety and work filters and, according to international guidelines (ISO 4406), are designed to protect a single pump, a valve or the entire hydraulic circuit from impurities in the fluids used. The aluminium filter head is mounted inline and can be fitted with a dirt indicator. In combination with filters type CS. |
| Material | Aluminium |
| Max working pressure | 12 BAR |
| Max working temperature | 110 °C |
| Medium | Mineral oil |
| Min working temperature | -25 °C |

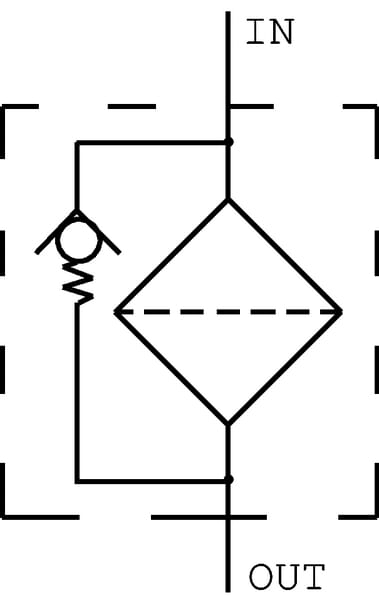

| Product details | SG1 = Suction filterhead with bypass 0.3 bar, RG1 = Return filterhead with bypass valve 1.75 bar, OG1 = Without bypass valve, Maximum pressure filter head : 12 bar, Mounting: Pipe mounting, filter in vertical position, In combination with filter elements type CS, Medium: Suitable for mineral oil, Filtering: From the outside in, Flow rate depends on build size and filter choice., Filter elements available in fibreglass (A), paper (P) or metal (M), Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 297 g |
| Dimensions | 108 × 105 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000321505

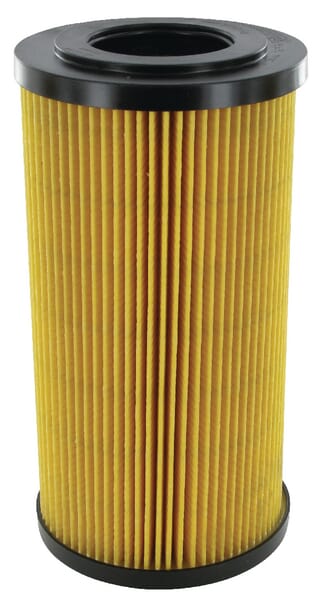

MP Filtri Filter element 10 µm MF4003P10NB
£36.17 excl.
£43.40 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000253700
MP Filtri Filter element 10 µm CU100A10N
£56.82 excl.
£68.18 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000287715

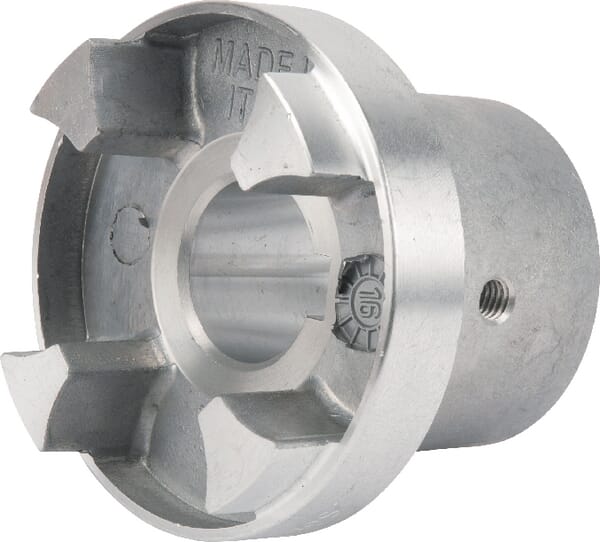

MP Filtri Motor half-coupling diameter 24 L=44 GEM224L44
£16.42 excl.
£19.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321479

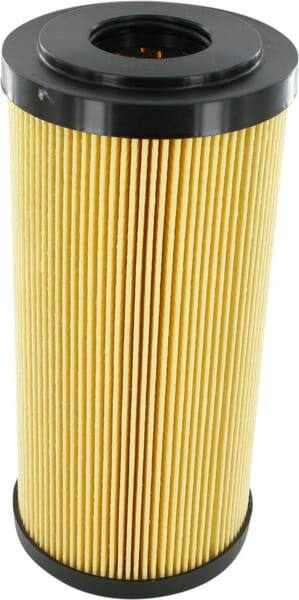

MP Filtri Filter element 25 µm MF1801P25NB
£22.37 excl.
£26.84 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000319340

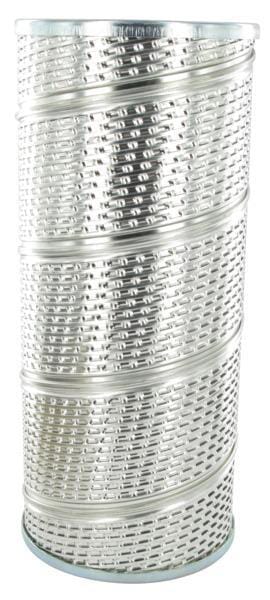

MP Filtri Filter element 25 µm MR6302A25A
£116.11 excl.
£139.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288952

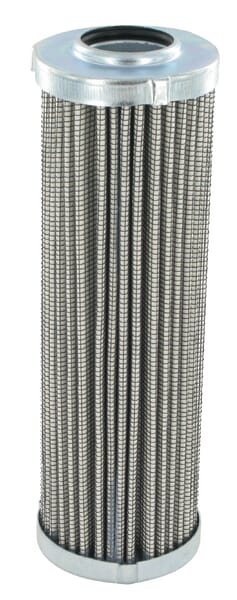

MP Filtri Filter element 16 µm HP0501A16AN
