£250.94
excl. VAT
£301.13 incl. VAT
£301.13
incl. VAT
£250.94 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass opening pressure | 1.75 BAR |
|---|---|
| Colour | White |
| Indicator port thread diameter | 1/8 Inch |
| Indicator port type | Thread |
| Inlet port thread diameter | 1-1/2 Inch |

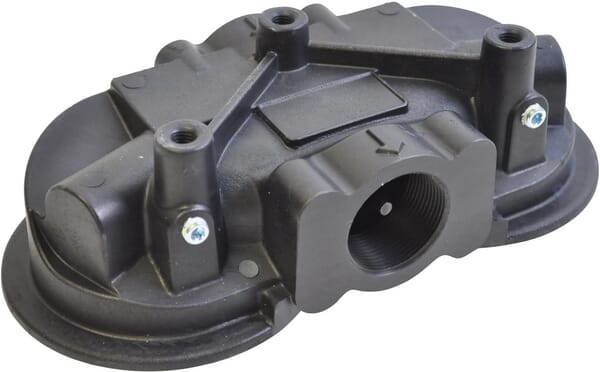

| Long description | The MPS spin-on filters are used as safety and work filters and, according to international guidelines (ISO 4406), are designed to protect a single pump, a valve or the entire hydraulic circuit from impurities in the fluids used. The aluminium filter head is mounted inline and can be fitted with a dirt indicator. In combination with filters type CS |
| Max working pressure | 12 BAR |

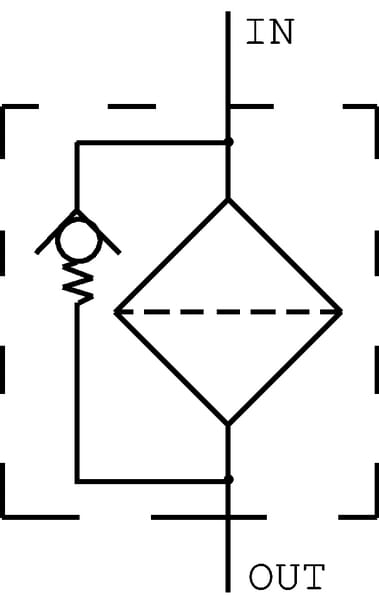

| Product details | SG1 = Suction filterhead with bypass 0.3 bar, RG1 = Return filterhead with bypass valve 1.75 bar, OG1 = Without bypass valve, Maximum pressure filter head : 12 bar, Mounting: Pipe mounting, filter in vertical position, In combination with filter elements type CS, Medium: Suitable for mineral oil, Filtering: From the outside in, Flow rate depends on build size and filter choice., Filter elements available in fibreglass (A), paper (P) or metal (M), Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2667 g |
| Dimensions | 283 × 126 × 134 mm |
| Dangerous goods | No |
You might also like
BPA000321476

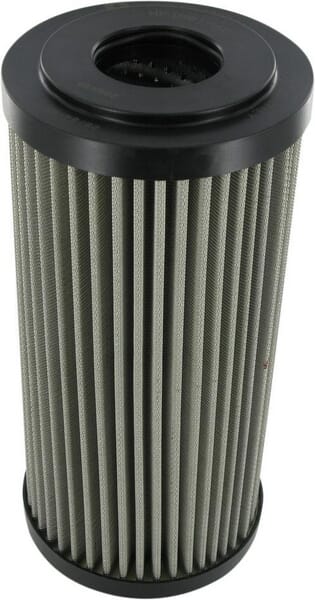

MP Filtri Filter element 60 µm MF1801M60NB
£66.38 excl.
£79.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000303943
MP Filtri Bell housing GR-2- 250mm L2252
£35.02 excl.
£42.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000273429

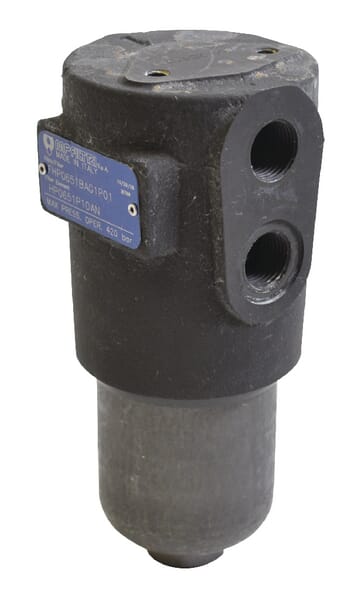

MP Filtri High pressure filter FHP1351A25N
