£370.57
excl. VAT
£444.68 incl. VAT
£444.68
incl. VAT
£370.57 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Bypass | Yes |
|---|---|
| Bypass opening pressure | 6 BAR |
| Filter finess | 10 µm |
| Filtration material | Microfibers |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 1-1/4 Inch |
| Inlet port thread type | G |
| Length | 340 mm |
| Long description | The FMM series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 450 bar. |
| Max flow rate | 160 l/min |
| Max working pressure | 300 BAR |
| Max working temperature | 110 °C |
| Medium | Oil |
| Min working temperature | -25 °C |
| Outside diameter | 88 mm |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 450 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sealing material | Nitrile rubber |
| Unit | Each |
| Width | 115 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 8997 g |
| Dimensions | 355 × 138 × 120 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279004
MP Filtri Pressure filter 1-1/4" 10µm FMM1501BVD2A10P01
£313.04 excl.
£375.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000241655
MP Filtri Filter element 60 µm CH150M60A
£357.84 excl.
£429.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000321488

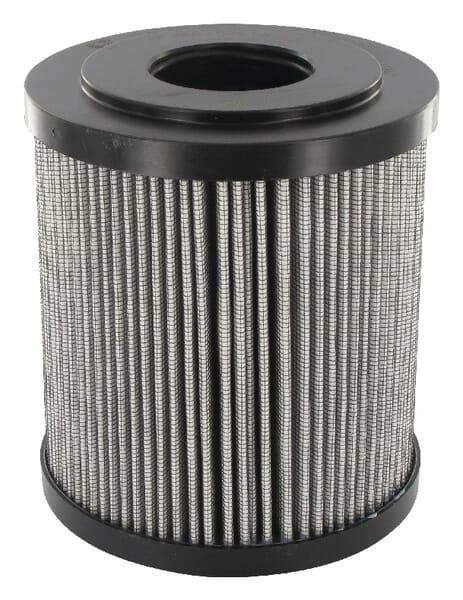

MP Filtri Filter element 25 µm MF4001M25NB
£123.04 excl.
£147.65 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000364451

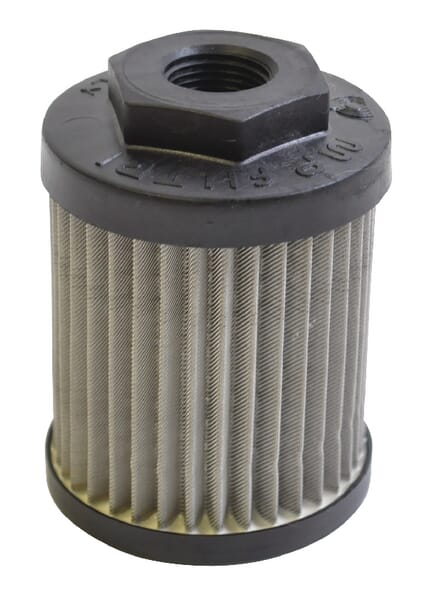

MP Filtri Suction 070/1-08-S-M90 1/2 STR701M90
£20.40 excl.
£24.48 incl.
In stock
Expected to ship on Friday 18 September
BPA000288968

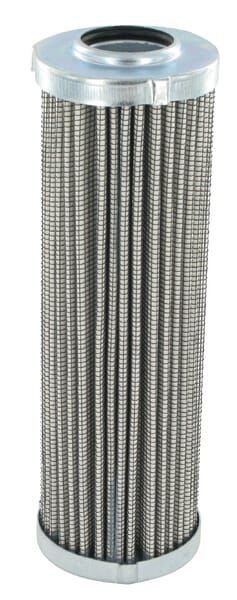

MP Filtri Filter element 6 µm HP0503A06AN
£68.36 excl.
£82.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288934

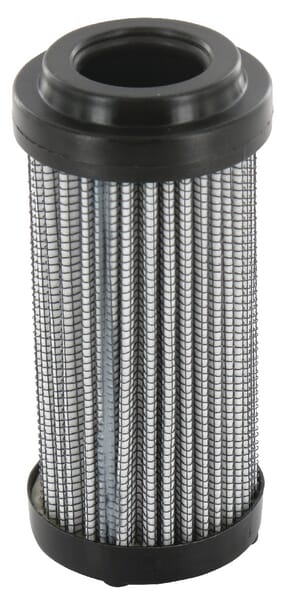

MP Filtri Filter element 6 µm HP0392A06AN
