£203.27
excl. VAT
£243.92 incl. VAT
£243.92
incl. VAT
£203.27 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |
| Height | 237 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 3/4 Inch |
| Length | 237 mm |
| Long description | The FMM series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 450 bar. |
| Max flow rate | 130 l/min |
| Max working pressure | 450 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMM050-3-B-A-D-A25-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 90 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 450 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sensor port | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
HP0503A03AN
MP Filtri Filter element 3 µm HP0503A03AN
£71.30 excl.
£85.56 incl.
HP0503A03AR
MP Filtri Filter element 3 µm HP0503A03AR
£90.04 excl.
£108.05 incl.
HP0503A06AN
MP Filtri Filter element 6 µm HP0503A06AN
£68.36 excl.
£82.03 incl.
HP0503A10AN
MP Filtri Filter element 10 µm HP0503A10AN
£45.64 excl.
£54.77 incl.
HP0503A10AS

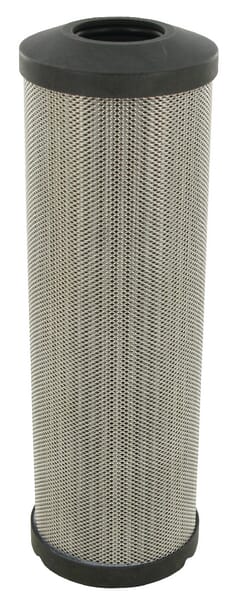

MP Filtri Filter element 10 µm HP0503A10AS
£173.70 excl.
£208.44 incl.
HP0503A25AR
MP Filtri Filter element 25 µm HP0503A25AR
£53.41 excl.
£64.09 incl.
HP0503A25AS
MP Filtri Filter element 25 µm HP0503A25AS
£142.09 excl.
£170.51 incl.

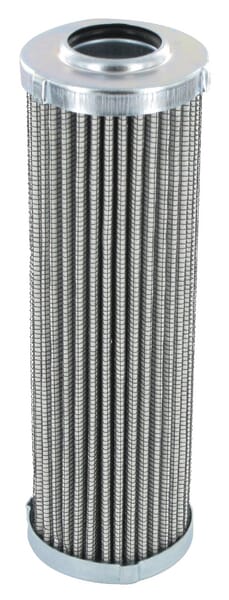

HP0503A25N
MP Filtri Filter element HP 050/3-A25-N (tbv FMM) HP0503A25N
£47.47 excl.
£56.96 incl.
HP0503M10AN
MP Filtri Filter element 10 µm HP0503M10AN
£95.79 excl.
£114.95 incl.
HP0503M25AN
MP Filtri Filter element 25 µm HP0503M25AN
£80.12 excl.
£96.14 incl.
HP0503M60AN

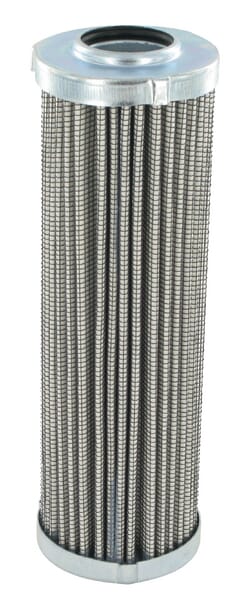

MP Filtri Filter element 60 µm HP0503M60AN
£76.55 excl.
£91.86 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9T2H
MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V7
MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4104 g |
| Dimensions | 260 × 105 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279001
MP Filtri Pressure filter 3/4" 25 µm FMM0504BADA25NP01
£230.98 excl.
£277.18 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000279003
MP Filtri Pressure filter 3/4" 25 µm FMM0505BADA25NP01
£313.26 excl.
£375.91 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000289032

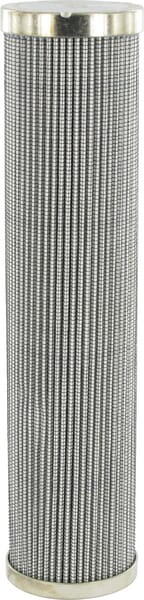

MP Filtri Filter element 10 µm HP1352A10AH
£220.59 excl.
£264.71 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000248060

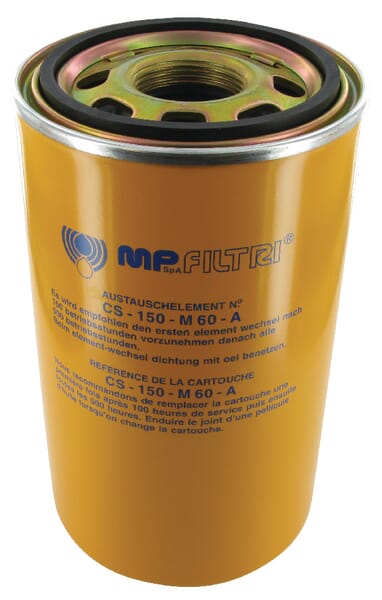

MP Filtri Filter element 60 µm CS150M60
£141.85 excl.
£170.22 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279019

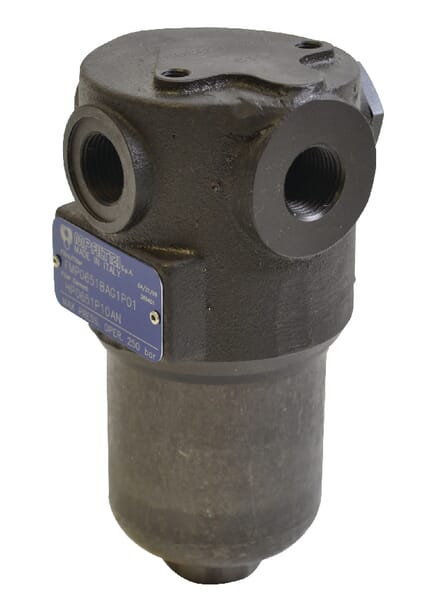

MP Filtri Pressure filter FMP 065-1-B-08-A-A10-N-T2 (1/2BSP) FMP0651A10N
£233.97 excl.
£280.76 incl.
In stock
Expected to ship on Monday 21 September
BPA000287729

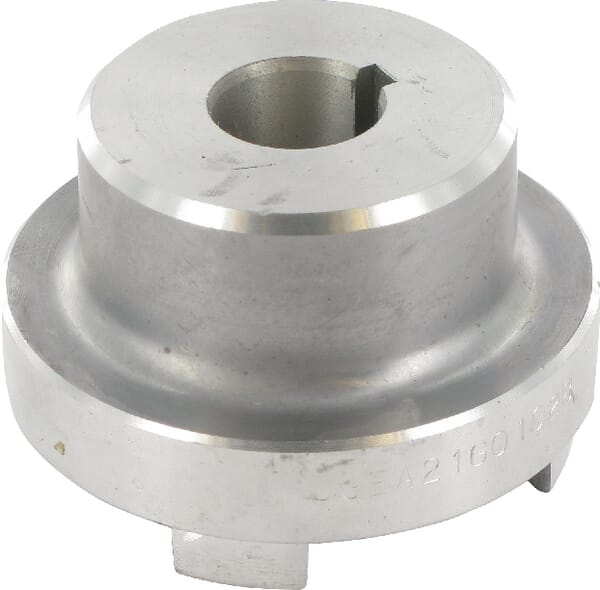

MP Filtri Pump half GEP005M
