£230.98
excl. VAT
£277.18 incl. VAT
£277.18
incl. VAT
£230.98 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

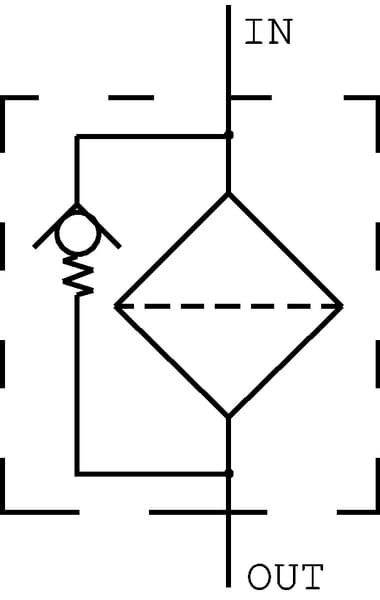

| Bypass | Yes |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Absolute |
| Filtration material | Glass fibre |

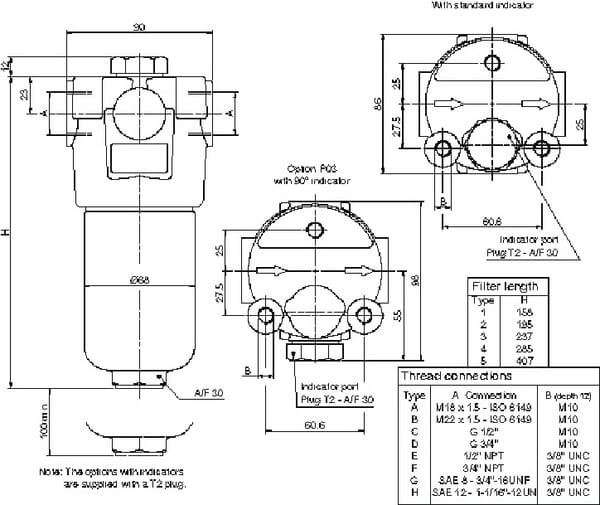

| Height | 285 mm |
| Housing material | Steel |
| Includes | Filter comes standard without indicator plug |
| Inlet port thread diameter | 3/4 Inch |
| Length | 285 mm |
| Long description | The FMM series consists of versatile high-pressure filters that protect sensitive components in hydraulic high-pressure systems up to 450 bar. |
| Max flow rate | 134 l/min |
| Max working pressure | 450 BAR |
| Max working temperature | 110 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Original number equivalent | FMM050-4-B-A-D-A25-N-P01 |
| Outlet port thread diameter | 3/4 Inch |
| Outside diameter | 90 mm |
| Pressure collapse | 20 BAR |
| Product details | Suitable for mineral oil, Maximum pressure difference across element 20 bar (N series) or 210 bar (S series), Filtering from the outside in, Maximum operating pressure 450 bar, Burst pressure 1260 bar, Temperature -25°C to +110°C, Working height is the free space needed under the filter for replacing the element, Bypass opening pressure: 6 bar +-10%, Flow rate depends on build size and filter choice, Filter elements available in Fibreglass (A) or Metal (M), Filter elements available as A03 / A06 / A10 / A16 /A25 / M25 (in µm) |
| Pros | Can be placed in any position through pipe installation |
| Sensor port | Yes |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
HP0504A06AN
MP Filtri Filter element 6 µm HP0504A06AN
£90.73 excl.
£108.88 incl.
HP0504A10AN

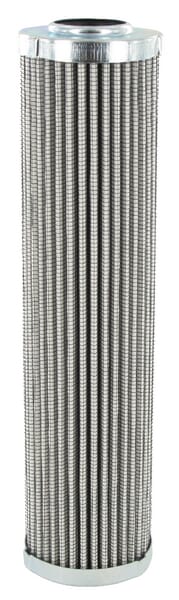

MP Filtri Filter element 10 µm HP0504A10AN
£78.13 excl.
£93.76 incl.
HP0504A10AR
MP Filtri Filter element 10 µm HP0504A10AR
£76.33 excl.
£91.60 incl.
HP0504A25AN
MP Filtri Filter element 25 µm HP0504A25AN
£66.77 excl.
£80.12 incl.
HP0504A25AR
MP Filtri Filter element 25 µm HP0504A25AR
£60.52 excl.
£72.62 incl.
HP0504A25AS
MP Filtri Filter element 25 µm HP0504A25AS
£197.27 excl.
£236.72 incl.
HP0504M10AN
MP Filtri Filter element 10 µm HP0504M10AN
£124.14 excl.
£148.97 incl.
HP0504M25AN

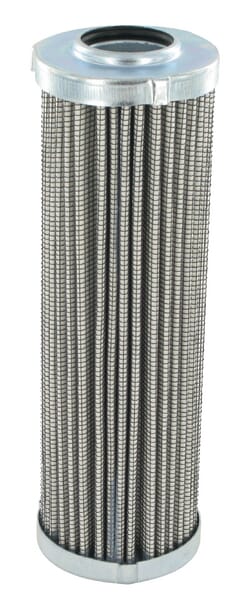

MP Filtri Filter element 25 µm HP0504M25AN
£102.99 excl.
£123.59 incl.
MP9E7
MP Filtri Electr/visual differential indicator 5 bar LMP/FMP/FHP/FMM MP9E7
£155.36 excl.
£186.43 incl.
MP9T2H
MP Filtri Indicator plug MP9T2H
£12.01 excl.
£14.41 incl.
MP9V7
MP Filtri Visual differential indicator 5 bar LMP /FMP/FHP/FMM MP9V7
£84.53 excl.
£101.44 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4496 g |
| Dimensions | 428 × 102 × 102 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000279003

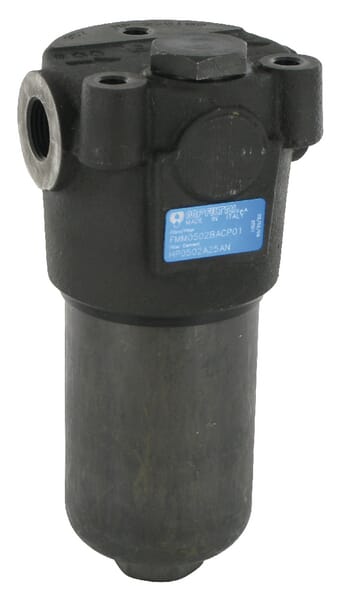

MP Filtri Pressure filter 3/4" 25 µm FMM0505BADA25NP01
£313.26 excl.
£375.91 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000278998
MP Filtri Pressure filter 3/4" 25 µm FMM0503BADA25NP01
£203.27 excl.
£243.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000358364

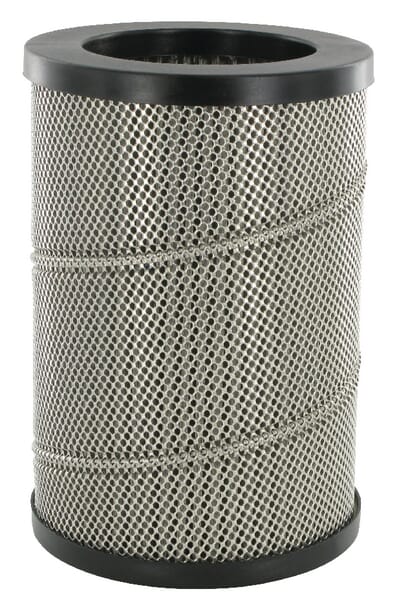

MP Filtri Filter element 25 µm SF504M25N
£198.90 excl.
£238.68 incl.
In stock
Expected to ship on Monday 21 September
BPA000316628

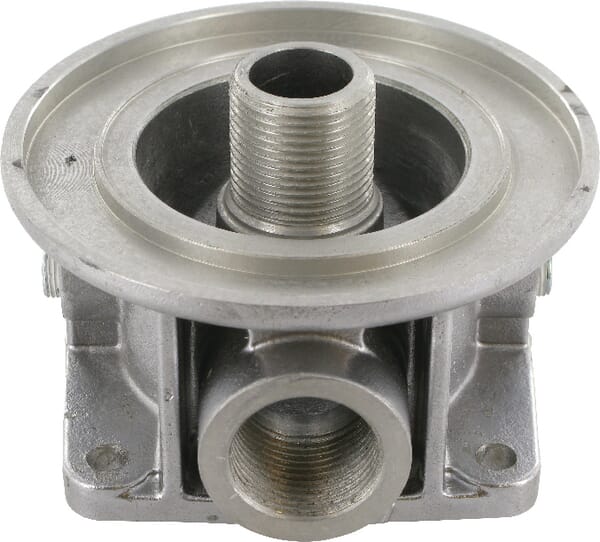

MP Filtri Filter head MST050AG1 MST9050AG1
£66.68 excl.
£80.02 incl.
In stock
Expected to ship on Monday 21 September

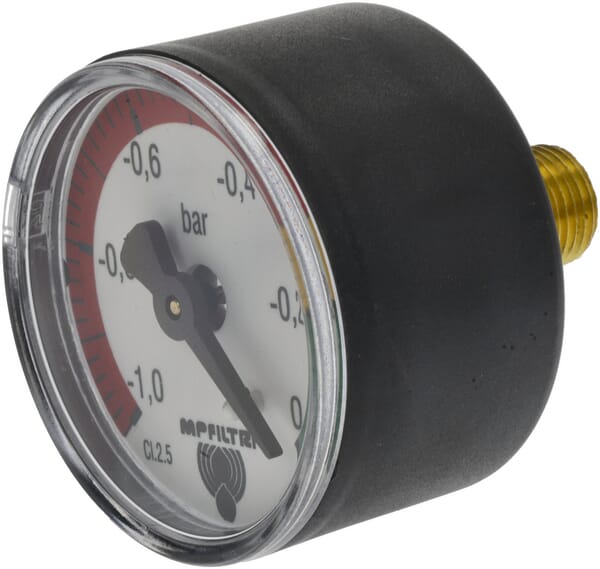

BPA000318874
MP Filtri Visual indicator MP9VB20P01
£26.95 excl.
£32.34 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000318960

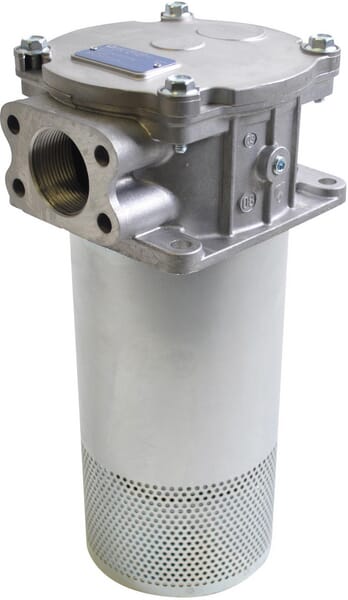

MP Filtri Return filter MPH2504P10
