Product details
| Bypass | Yes |
|---|---|
| Filtration level | Absolute |
| Height | 295 mm |

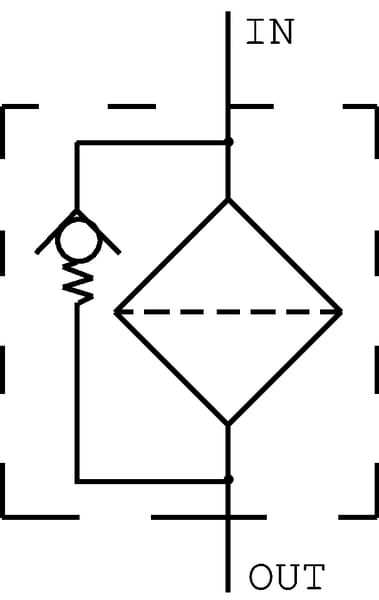

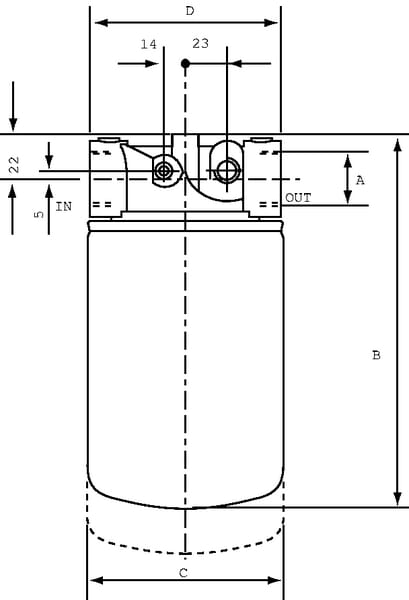

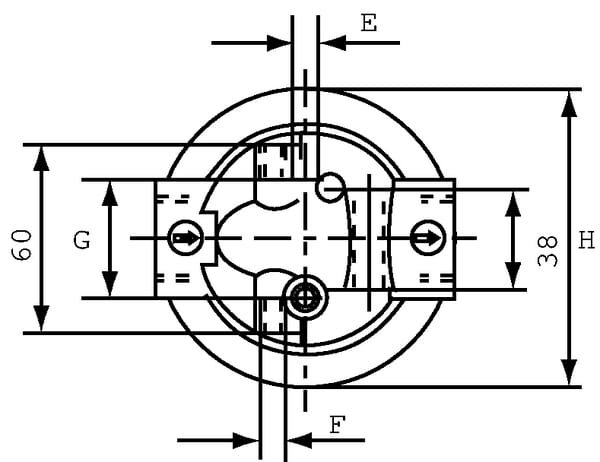

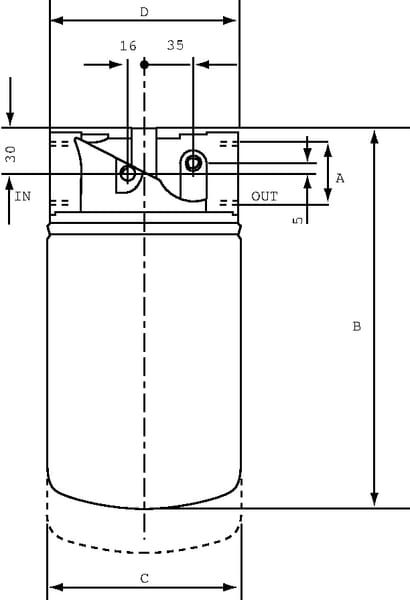

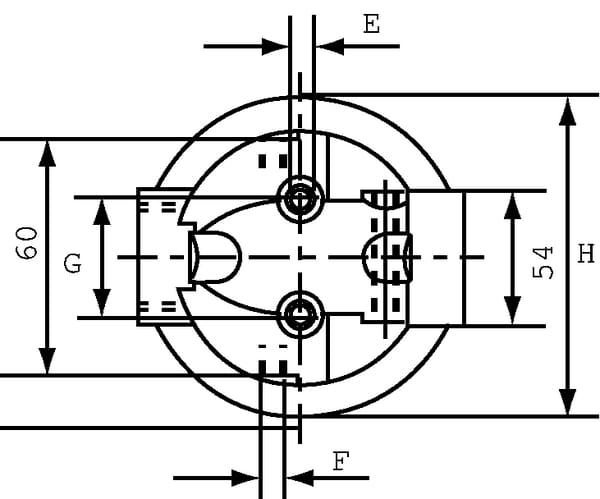

| Long description | The MPS-S is a combination of an MPS filter head with a CS suction filter. The aluminium filter head can be mounted easily and quickly between piping and is a good alternative to a built-in filter in terms of price. The filter head is fitted with a bypass as standard and can optionally be extended with a dirt indicator. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min working temperature | -25 °C |
| Outside diameter | 133 mm |
| Product details | Application: Suction filter, Mounting: Pipe mounting, filter in vertical position, In combination with filter elements type CS, Operating pressure: Max. 12 bar, Material: Aluminium, Medium: Suitable for mineral oil, Temperature: -25°C to +110°C, Filtering: From the outside in, Bypass opening pressure suction filter : 0.3 bar, Flow rate depends on build size and filter choice., Filter elements available in fibreglass (A), paper (P) or metal (M), Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm) |
| Pros | Ideal in places where there is little space around the oil reservoir for servicing., Good alternative to a built-in filter in terms of price., Easy to retrofit into a system. |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2480 g |
| Dimensions | 295 × 145 × 145 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000241611
MP Filtri Filter element 25 µm CH050P25
£111.12 excl.
£133.34 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321532

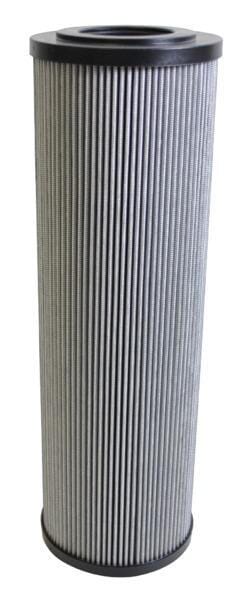

MP Filtri Filter element 25 µm MF7501P25NB
