£605.99
excl. VAT
£727.19 incl. VAT
£727.19
incl. VAT
£605.99 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Bypass | No |
|---|---|
| Filter finess | 60 µm |
| Filtration level | Nominal |
| Filtration material | Metal |
| Height | 108 mm |
| Includes | Filter housing, Filter element |

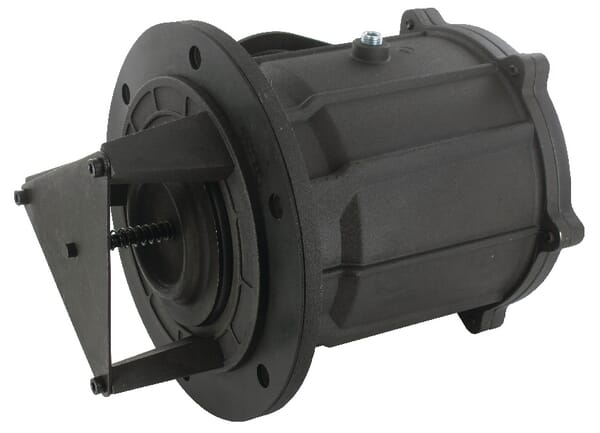

| Long description | The SF2-500-540 series suction filters are designed for horizontal tank installation below the oil level. The filter housing is equipped with a shut-off valve with hand wheel that makes it possible to change the filter element without emptying the tank. To prevent unintended start-up while the diaphragm is not open, an optional safety switch is available. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min flow rate | 650 l/min |
| Min working temperature | -25 °C |
| Outlet port thread diameter | 4 Inch |
| Outside diameter | 180 mm |
| Product details | Application: Suction filter, Mounting : Tank mounting, below oil level, In combination with filter elements type SF, Material : Aluminium, Medium: Suitable for mineral oil, Temperature: -25°C to +110°C, Filtering: From the inside (IN) out (OUT), Flow rate up to 850 l/min depends on build size and filter choice, Filter elements available as Metal (M), available as M25 / M60 / M90 / M250, Seal N.B.R.; viton on request, Equipped with integrated valve so that no oil is lost during a filter change, These suction filters cannot be equipped with a bypass valve, Equipped with magnetic core to catch metal particles, S = without microswitch, without hand wheel, D = with microswitch and hand wheel, C= with microswitch, without hand wheel |
| Pros | Protects pumps against coarse dirt, Replace filters without emptying tank |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5718 g |
| Dimensions | 259 × 391 × 319 mm |
| Dangerous goods | No |
You might also like
BPA000253568

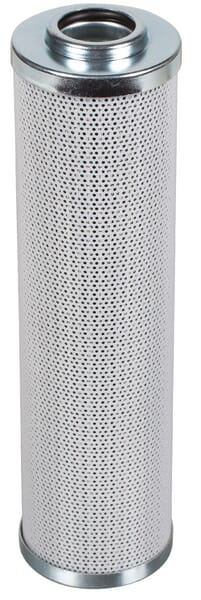

MP Filtri Hydraulic filter DP058A006ANP01
£55.87 excl.
£67.05 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318880

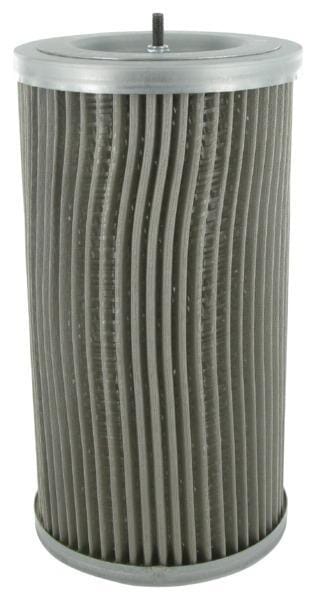

MP Filtri Suction filter MPA 050-G1- M90 MPA050M90
£34.21 excl.
£41.05 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000288938

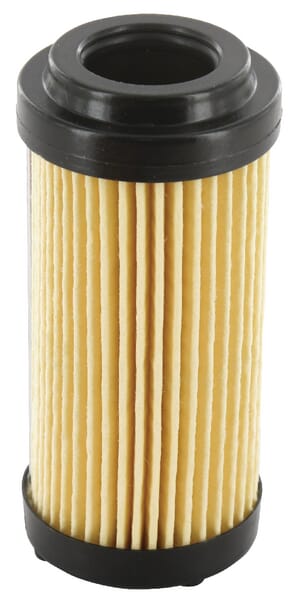

MP Filtri Filter element 10 µm HP0392P10AN
£25.92 excl.
£31.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318891
MP Filtri Return filter MPF 030/1-08-A10 MPF0301A10H
£59.76 excl.
£71.71 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000318875

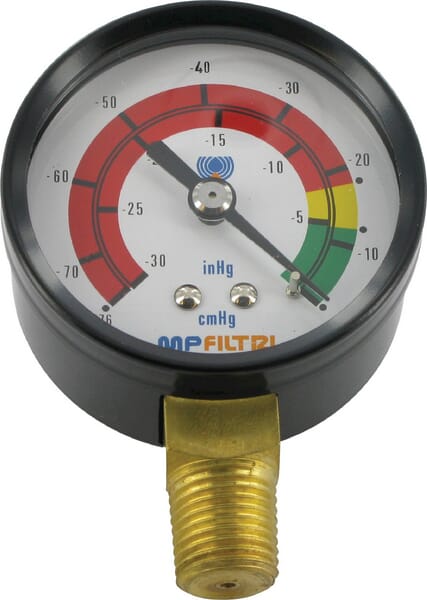

MP Filtri Visual vacuum gauge 1/4 bottom SF2 MP9VP01
£25.84 excl.
£31.01 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000273428

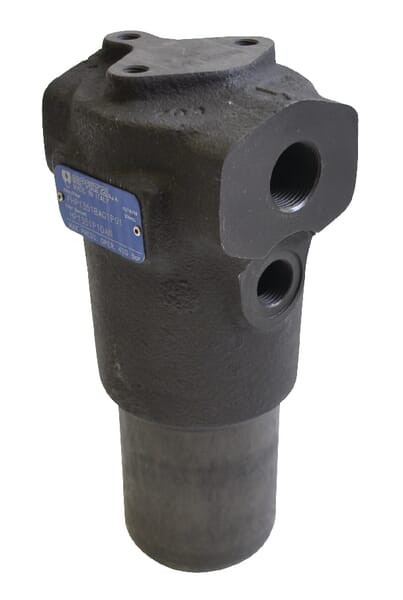

MP Filtri Press FHP135/1-B-12-A10 3/4 FHP1351A10
