£367.93
excl. VAT
£441.52 incl. VAT
£441.52
incl. VAT
£367.93 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Bypass | Yes |
|---|---|
| Filter finess | 25 µm |
| Filtration level | Nominal |
| Filtration material | Metal |
| Height | 254 mm |
| Includes | Filter housing, Filter element |
| Long description | The SF2-250 series suction filters are designed for horizontal tank installation below the oil level. The filter housing is equipped with a shut-off valve that makes it possible to change the filter element without emptying the tank. It will close immediately when the filter lid is opened. |
| Max working temperature | 100 °C |
| Medium | Hydraulic oil |
| Min flow rate | 60 l/min |
| Min working temperature | -25 °C |
| Outlet port thread diameter | 1-1/2 Inch |
| Outside diameter | 114 mm |
| Product details | Application: Suction filter, Mounting : Tank mounting, below oil level, In combination with filter elements type SF, Material : Aluminium, Medium: Suitable for mineral oil, Temperature: -25°C to +110°C, Filtering: From the inside (IN) out (OUT), Flow rate up to 160 l/min depends on build size and filter choice, Filter elements available as Metal (M), available as M25 / M60 / M90 / M250, Seal N.B.R.; viton on request, Equipped with integrated valve so that no oil is lost during a filter change, different version on request, S= with bypass 0.3 bar, without magnetic core |
| Pros | Protects pumps against coarse dirt, Replace filters without emptying tank |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2500 g |
| Dimensions | 391 × 190 × 167 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000278994
MP Filtri Pressure filter 1/2" 25 µm FMM0501BACA25NP01
£193.98 excl.
£232.78 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000353417

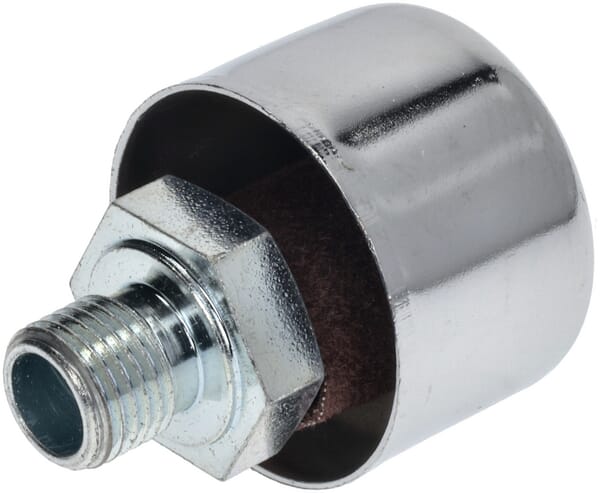

MP Filtri Ventilation filter SA036-G1-L40-A SA036G1L40A
£15.31 excl.
£18.37 incl.
In stock
Expected to ship on Friday 18 September
BPA000353423
MP Filtri Air filter SA075G1L10
£33.01 excl.
£39.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000318901

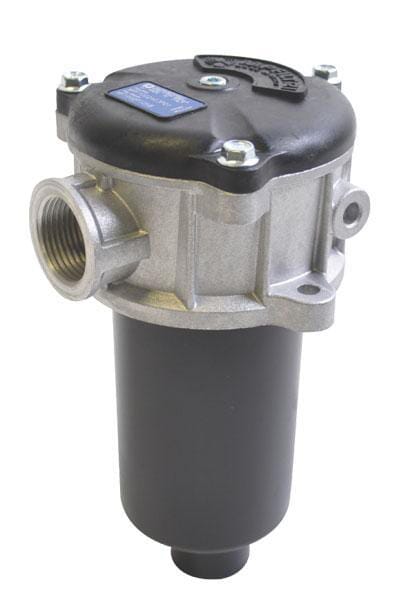

MP Filtri Return MPF100/1-12-M60-T 3/4" MPF1001M60
£65.41 excl.
£78.49 incl.
In stock
Expected to ship on Monday 21 September
BPA000253566
MP Filtri Filter element DP040A025ANP01
£33.37 excl.
£40.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000319229

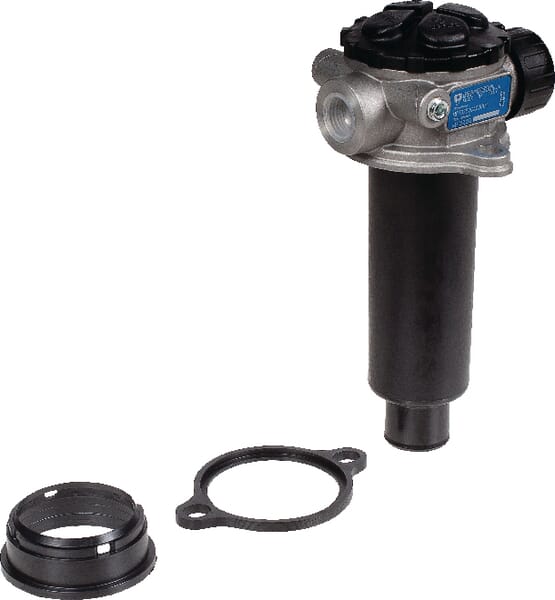

MP Filtri FILTER HOUSING 1/2 W. VENT. FI MPT90252
