£216.82
excl. VAT
£260.18 incl. VAT
£260.18
incl. VAT
£216.82 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details

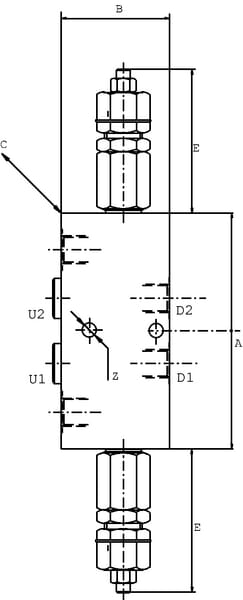

| ATotal length | 141 mm |
|---|---|
| BTotal height | 65 mm |
| Connections thread diameter | 3/8 Inch |
| Connections thread type | BSP |
| Designed for medium | Mineral oil |
| Material | Aluminium |
| Max flow rate | 35 l/min |
| Max working pressure | 210 BAR |
| Number of connections | 2 |
| Pilot ratio | 1:4.0 |
| Sealing material | Buna-N |
| Surface treatment | n/a |
| Technical info | This valve has a relieved spring housing and operates independent of the pressure in the return |
| Type | Double |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1259 g |
| Dimensions | 249 × 85 × 30 mm |
| Dangerous goods | No |
