About this product

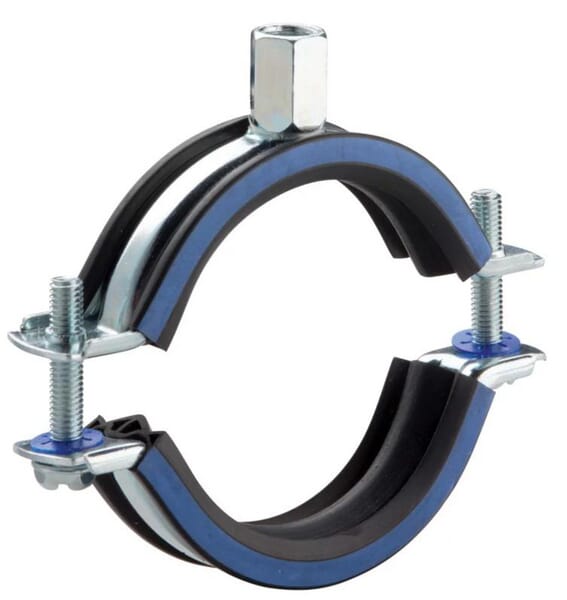

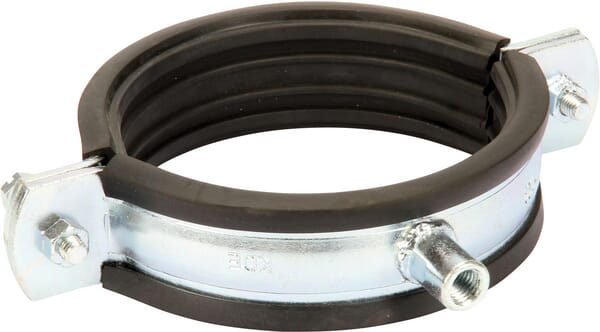

A heavy-duty pipe clamp designed for steel and plastic pipes in the 88–93 mm diameter range, supplied as a single unit. The clamp features an EPDM sound protection insert and is fitted with multi-function screws offering both slotted and hexagonal head options. Mounting threads are available in M10 and M12 sizes to suit the installation requirement.
The clamp is manufactured from zinc-plated steel with an ethylene propylene diene monomer (EPDM) insert that provides an average sound reduction of 22 dB and conforms to DIN 4109 specifications. The EPDM material maintains performance across a temperature range of –50 °C to +110 °C and achieves fire class E per DIN EN 13501-1.

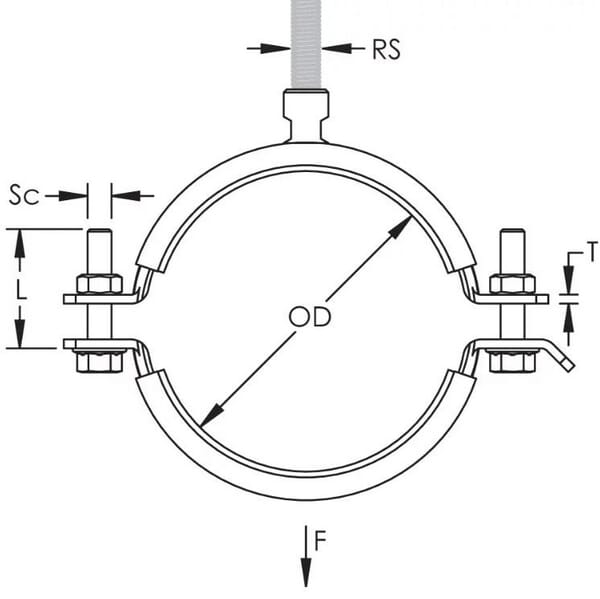

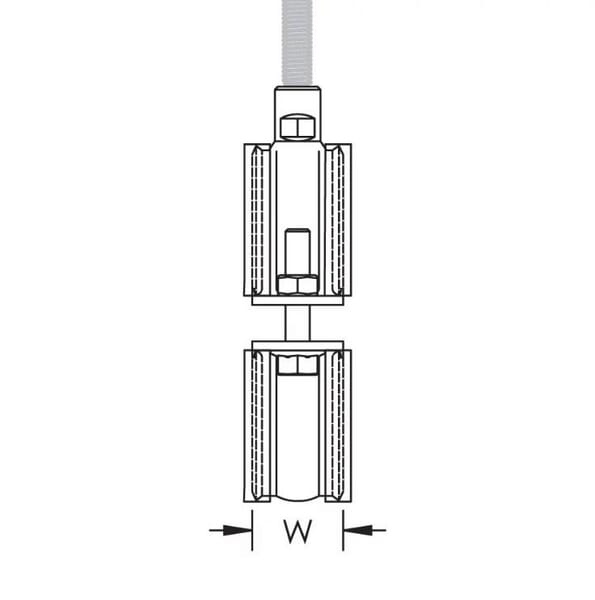

The clamp weighs approximately 380 g and measures 172 mm in length, 134 mm in width, and 37 mm in height. It carries the EAN 8711893045697 for ordering and stock management.
Product details
| Application range | For steel and plastic pipes from 88 mm to 315 mm, With internal thread M10/M12, M12/M16 or M16/M20 |
|---|---|
| Benefits | Average improvement of 22 dB |
| Details | EPDM sound protection insert for DIN 4109 |
| Material | Ethylene propylene diene monomer [EPDM] |
| Max. working diameter | 93 mm |
| Min. working diameter | 88 mm |
| Mounting thread diameter | M10, M12 |
| Properties | Multi-function screws with slotted and hexagonal head, Temperature range with EPDM (I) from -50ºC to +110ºC, Fire class: DIN EN 13501-1:E |
| Surface treatment | Zinc-plated |
| Type | Pipe clamp |
| Unit | Each |
Logistics
| EAN | 8711893045697 |
|---|---|
| Unit of measure | EA |
| Weight | 380 g |
| Dimensions | 172 × 134 × 37 mm |
| Dangerous goods | No |
