£212.01
excl. VAT
£254.41 incl. VAT
£254.41
incl. VAT
£212.01 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 12 cm³ |
|---|---|

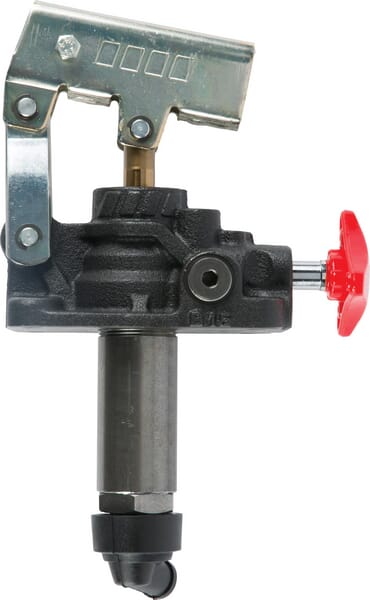

| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMS 9-12AFD, PMS 9-25AFD, PMS 9-45AFD |
| Max. delivery pressure | 350 BAR |
| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever., Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively., Suitable for use in single-acting applications., To be used for medium pressure, PMS 12 cc : piston diameter Ø14 x 173 mm, PMS 25 cc : piston diameter Ø17 x 148 mm, PMS 45 cc : piston diameter Ø22 x 157 mm |

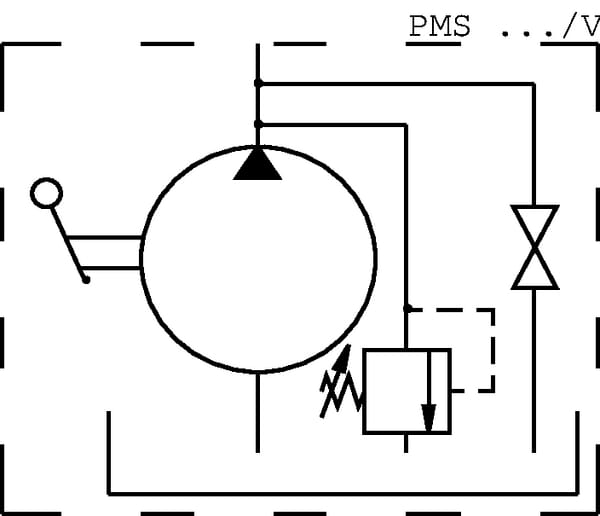

| Relief valve | Yes |
| Reservoir capacity | 0 l |
| Suitable for application type | Single acting cylinders |
| Unit | Each |
| Valve type | Lowering valve |
| Working type | Single acting |
Logistics
| EAN | 8719607010160 |
|---|---|
| Unit of measure | EA |
| Weight | 2915 g |
| Dimensions | 314 × 242 × 222 mm |
| Dangerous goods | No |
