£226.32
excl. VAT
£271.58 incl. VAT
£271.58
incl. VAT
£226.32 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 25 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMS 9-12AFD, PMS 9-25AFD, PMS 9-45AFD |
| Max. delivery pressure | 300 BAR |

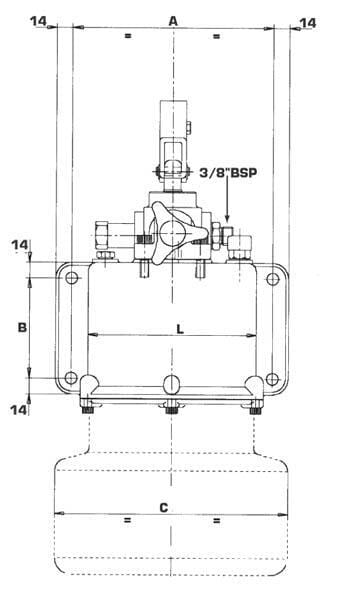

| Mounting holes distance in length | 110 mm |
| Mounting holes distance in width | 96 mm |

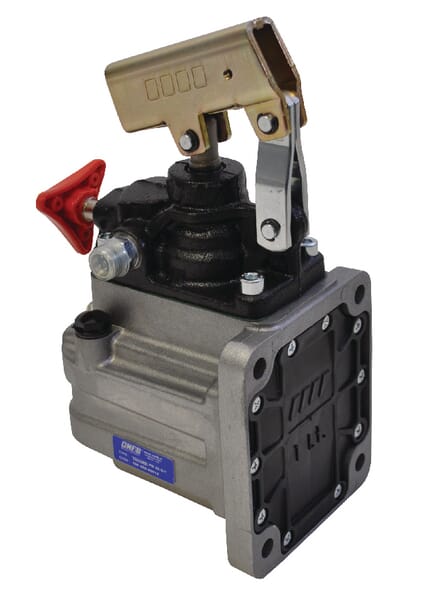

| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever., Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively., Suitable for use in single-acting applications., To be used for medium pressure, PMS 12 cc : piston diameter Ø14 x 173 mm, PMS 25 cc : piston diameter Ø17 x 148 mm, PMS 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | No |
| Reservoir capacity | 1 l |
| Suitable for application type | Single acting cylinders |
| Total length | 145 mm |
| Total width | 124 mm |
| Unit | Each |
| Valve type | Lowering valve |
| Working type | Single acting |
Compatible accessories
Parts and components that work with this product.
PMS912SCH
OMFB Hinge piece for PMS/PMSD 12/25/45/50 PMS912SCH
£31.98 excl.
£38.38 incl.
PMS925AFD2004
OMFB Seal kit PMS25 from 2004 PMS925AFD2004
£26.60 excl.
£31.92 incl.
PMS925AFD
OMFB Gasket set PMS 25 PMS925AFD
£30.20 excl.
£36.24 incl.
PMS9500117
OMFB Shut-off valve PMS PMS9500117
£51.52 excl.
£61.82 incl.
PMS9514316
OMFB Tank 1L. PMS PMS9514316
£92.11 excl.
£110.53 incl.
PMS96901332
OMFB Handle for PMS handpump PMS96901332
£14.47 excl.
£17.36 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4160 g |
| Dimensions | 287 × 175 × 164 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340860
OMFB Manual pump+Tank PMS1203
£265.95 excl.
£319.14 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340861
OMFB Manual pump+Tank PMS1205
£245.65 excl.
£294.78 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340870
OMFB Manual pump+Tank PMS2503
£196.37 excl.
£235.64 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340871
OMFB Manual pump+Tank PMS2505
£241.57 excl.
£289.88 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340858
OMFB Manual pump+Tank PMS1201
£255.04 excl.
£306.05 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000340859
OMFB Manual pump+Tank PMS1202
£265.09 excl.
£318.11 incl.
In stock
Expected to ship on Thursday 24 September
Recently viewed
Free shipping
BPA000340858
OMFB Manual pump+Tank PMS1201
£255.04 excl.
£306.05 incl.
In stock
Expected to ship on Thursday 24 September
BPA000096882

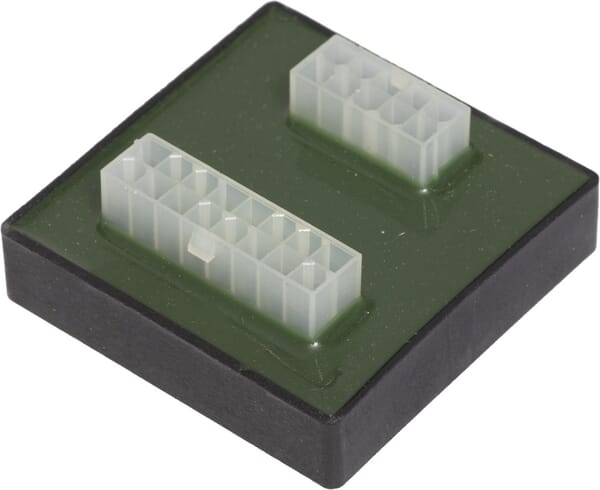

Landini Circuit 3665984M3
