£245.65
excl. VAT
£294.78 incl. VAT
£294.78
incl. VAT
£245.65 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 24 September
Product details
| Displacement | 12 cm³ |
|---|---|
| Includes | Pump part, Control lever not included |
| Long description | Technical information:, To be used for middle pressure, Other remarks:, Seals, Order no.: with nr. PMS 9-12AFD, PMS 9-25AFD, PMS 9-45AFD |
| Max. delivery pressure | 350 BAR |

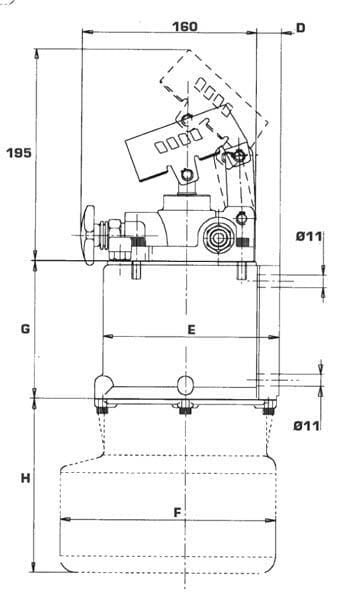

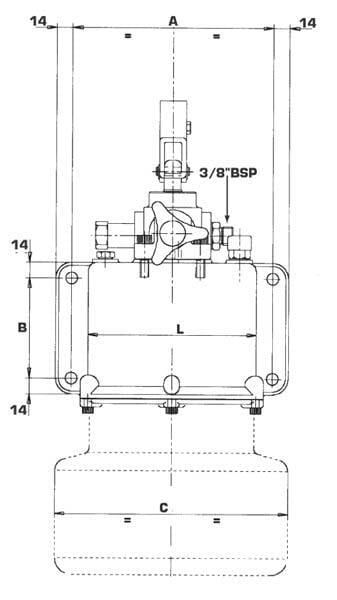

| Mounting holes distance in length | 180 mm |
| Mounting holes distance in width | 90 mm |

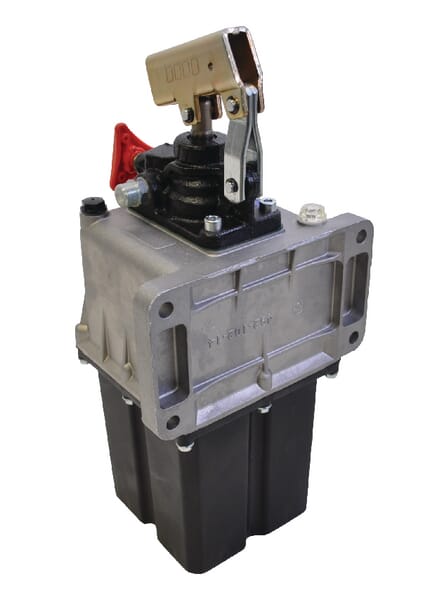

| Product details | Double-acting hand pumps, the pump can both push and pull oil to the lever., Per stroke (pushing and pulling) the pumps move 12, 25 or 45cc (cm³) of oil, respectively., Suitable for use in single-acting applications., To be used for medium pressure, PMS 12 cc : piston diameter Ø14 x 173 mm, PMS 25 cc : piston diameter Ø17 x 148 mm, PMS 45 cc : piston diameter Ø22 x 157 mm |
| Relief valve | No |
| Reservoir capacity | 5 l |
| Suitable for application type | Single acting cylinders |
| Tank length | 182 mm |
| Total length | 304 mm |
| Total width | 208 mm |
| Unit | Each |
| Valve type | Lowering valve |
| Working type | Single acting |
Compatible accessories
Parts and components that work with this product.
PMS912AFD2004
OMFB Seal kit PMS12 from 2004 PMS912AFD2004
£27.27 excl.
£32.72 incl.
PMS912AFD
OMFB Gasket set PMS 12 PMS912AFD
£35.28 excl.
£42.34 incl.
PMS912SCH
OMFB Hinge piece for PMS/PMSD 12/25/45/50 PMS912SCH
£31.98 excl.
£38.38 incl.
PMS9500117
OMFB Shut-off valve PMS PMS9500117
£51.52 excl.
£61.82 incl.
PMS9514587
OMFB Oil Tank 5 LH PMS PMS9514587
£45.46 excl.
£54.55 incl.
PMS96901332
OMFB Handle for PMS handpump PMS96901332
£14.47 excl.
£17.36 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5097 g |
| Dimensions | 450 × 210 × 182 mm |
| Dangerous goods | No |
