£5.53
excl. VAT
£6.64 incl. VAT
£6.64
incl. VAT
£5.53 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Height | 2.3 mm |
|---|---|

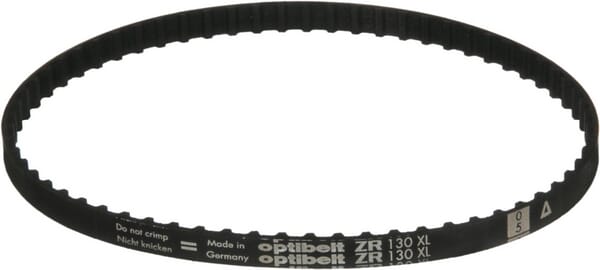

| Long description | Optibelt ZR timing belts are high-quality chloroprene belts with highly flexible fibreglass tensioning elements and an abrasion-resistant protective fabric. The timing belts are used in synchronous drives in transport technology, packaging machines, hand machines and gardening machines, among others. It ensures even power transmission and low load on bearings and, due to its high pliability, is very suitable for extremely small pulley diameters. |
| Material | Neoprene |
| Max working speed | 60 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Number of teeth | 65 |
| Pitch length | 330.2 mm |
| Product details | Limited oil, heat and cold resistant |
| Profile | XL |
| Pros | Low bearing load, Even power distribution, High flexibility, Maintenance-free, Large performance range |
| Teeth pitch | 5.08 mm |
| Unit | Each |
| Weight | 0.013 kg/m |
| Width | 6.35 mm |
Logistics
| EAN | 4014486026887 |
|---|---|
| Unit of measure | EA |
| Weight | 20 g |
| Dimensions | 120 × 100 × 5 mm |
| Dangerous goods | No |
You might also like
BPA000383029
Optibelt V-belt B73 1/2 17x1865 VB171865
£29.28 excl.
£35.14 incl.
In stock
Expected to ship on Friday 18 September
BPA000367937

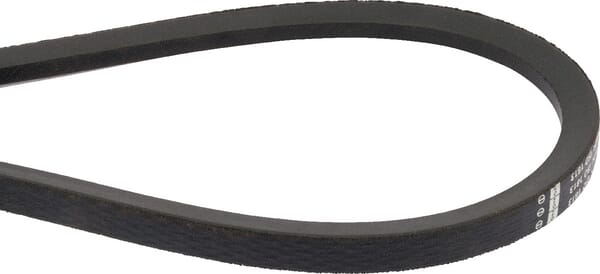

Optibelt V-belt SPA 13x1732 SPA1732
£26.30 excl.
£31.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000228666
Optibelt V-belt AP1004362
£15.83 excl.
£19.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000228656

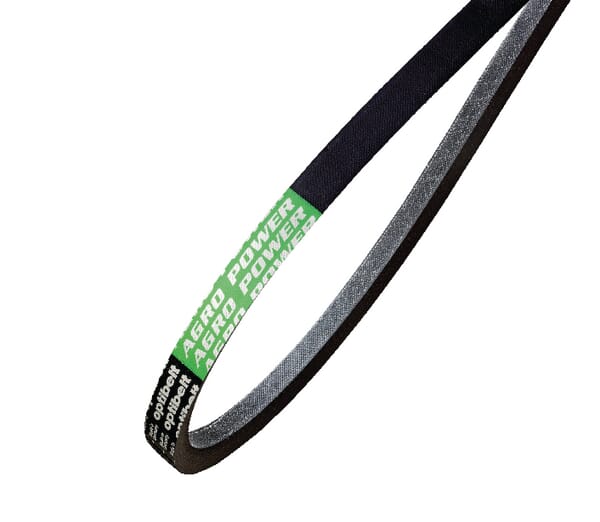

Optibelt Power belt AP1004251
£387.25 excl.
£464.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000101014

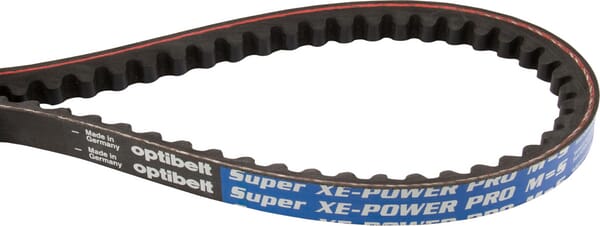

Optibelt V-belt super XE power 3VX315XEP
