£152.48
excl. VAT
£182.98 incl. VAT
£182.98
incl. VAT
£152.48 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M52 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOL |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 51 mm |
| Connection 2, diameter | 42 mm |
| Connection 2, thread diameter | M52 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 center to end distance | 56 mm |
| Connection no 1 diameter | 42 mm |
| Connection no 1 wrench size | 60.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 250 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 42L |
| Shape | Elbow 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 944 g |
| Dimensions | 88 × 85 × 70 mm |
| Dangerous goods | No |
You might also like
BPA000376144
PH Hydraulik T piece 28L SS TS28LSS
£58.43 excl.
£70.12 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287794

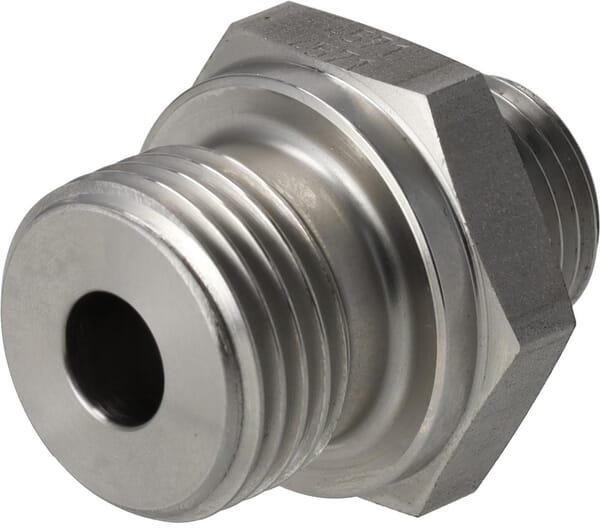

PH Hydraulik Male Stud coupling 10L x 1/2" BSP SS GES10LR12SS
