£13.27
excl. VAT
£15.92 incl. VAT
£15.92
incl. VAT
£13.27 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type code | DKOS |
| Connection 1, type - male/female | Male |
| Connection 2, centre to end distance | 24 mm |
| Connection 2, diameter | 8 mm |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 17.0 mm |
| Connection no 1 center to end distance | 27.5 mm |
| Connection no 1 diameter | 8 mm |
| Connection no 1 wrench size | 19.0 mm |
| Includes | Coupling with pre-assembled union nut with O-ring, Without cutting rings and nuts |
| Max working pressure | 800 BAR |
| Product details | Bend 90°, Metric cutting ring fitting, Metric pre-assembled union nuts with cone and FPM O-ring, Position adjustable, Stainless steel: AISI 316 ti, Temperature range: -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Seal material | FKM |
| Series connection 1 | 8S |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 66 g |
| Dimensions | 38 × 37 × 20 mm |
| Dangerous goods | No |
You might also like

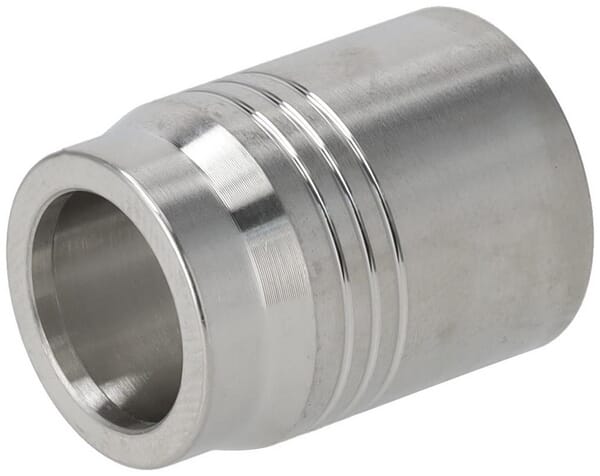

BPA000358844
PH Hydraulik Ferrule SFWPTFE25SS
£22.47 excl.
£26.96 incl.
In stock
Expected to ship on Wednesday 23 September

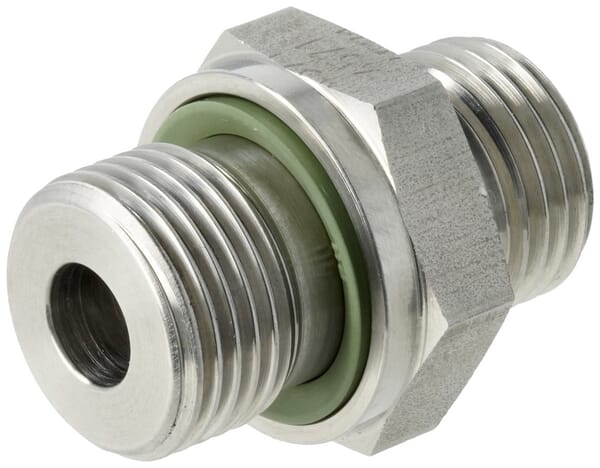

BPA000287893
PH Hydraulik Male Stud coupling 12L x 1/2" BSP WD SS GES12LR12WDSS
£8.48 excl.
£10.18 incl.
In stock
Expected to ship on Thursday 24 September

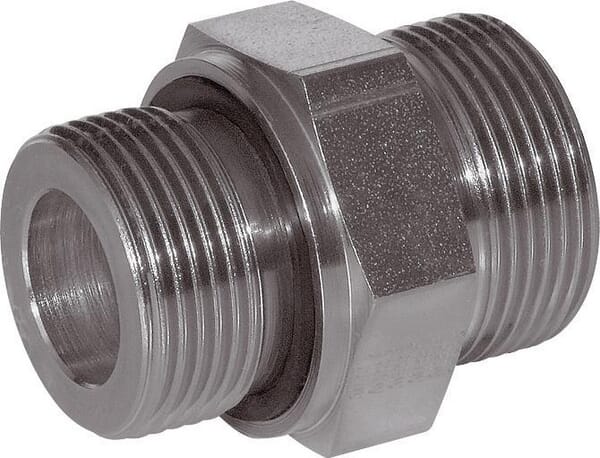

BPA000288360
PH Hydraulik Male Stud coupling 8L x 1/8" BSP WD SS GES8LR18WDSS
£3.39 excl.
£4.07 incl.
In stock
Expected to ship on Thursday 24 September
BPA000348225
PH Hydraulik Reducing coupling 22Lx10L SS REDSD2210LSS
£21.89 excl.
£26.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000358664
PH Hydraulik Ferrule SFPTFE25SS
£19.35 excl.
£23.22 incl.
In stock
Expected to ship on Wednesday 23 September

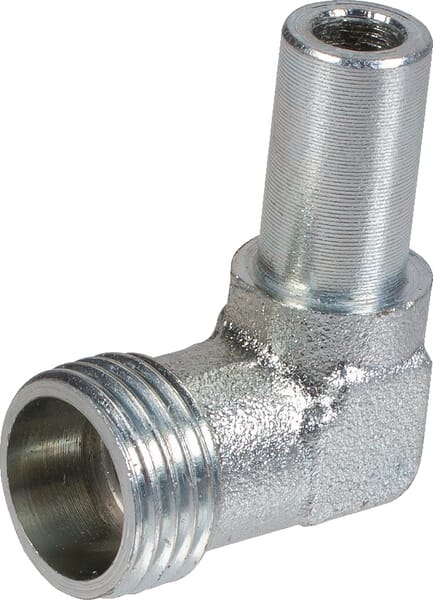

BPA000268282
