£183.30
excl. VAT
£219.96 incl. VAT
£219.96
incl. VAT
£183.30 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M36 |
| Connection thread pitch | 2.00 mm |
| Connection thread type | Metric |
| Connection type | Thread |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 46.0 mm |
| Dedicated pipe diameter | 28 mm |
| Housing height | 63 mm |
| Housing length | 66 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 400 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M6 |
| Nominal inner diameter | 24 mm |
| Number of ports | 2 |
| Number of positions | 2 |
| Outside diameter | 65 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | L |
| Total length | 108 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 1.8 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1835 g |
| Dimensions | 228 × 115 × 63 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000237840

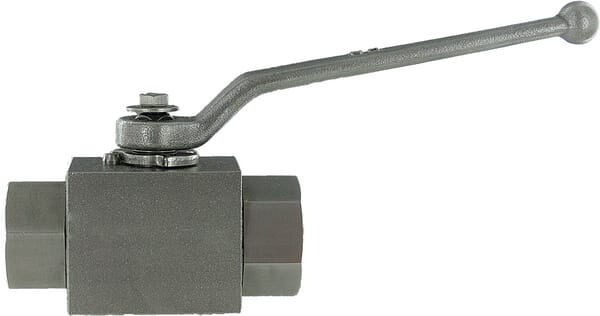

PH Hydraulik Ball valve 28L SS BVM28LSS
£202.25 excl.
£242.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341052
PH Hydraulik Insert DN13-1/2-BSPT SS PNT138SS
£16.38 excl.
£19.66 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287937

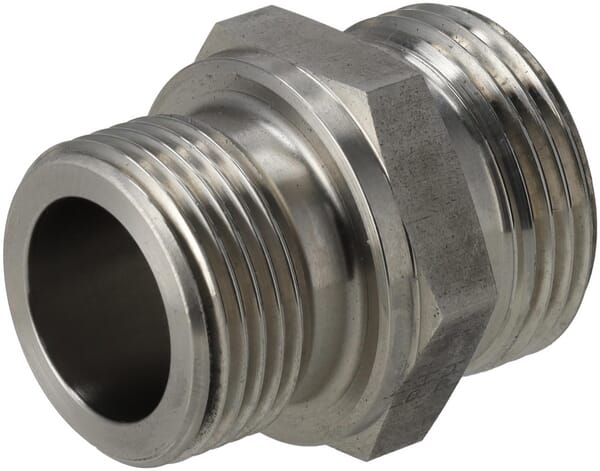

PH Hydraulik Male Stud coupling 12S x 1/2" BSP SS GES12SR12SS
