£76.94
excl. VAT
£92.33 incl. VAT
£92.33
incl. VAT
£76.94 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 2, type - male/female | Female |
|---|---|
| Connection thread diameter | M12 |
| Connection thread pitch | 1.50 mm |
| Connection thread type | Metric |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 22.0 mm |
| Dedicated pipe diameter | 5 mm |
| Housing height | 32 mm |
| Housing length | 36 mm |
| Housing material | Stainless steel |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 500 BAR |
| Min medium temperature | -20 °C |
| Mounting thread diameter | M5 |
| Nominal inner diameter | 5 mm |
| Number of ports | 2 |
| Outside diameter | 35 mm |
| Product details | 2-way ball valves, Round construction, Metric cutting ring connections, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Series code | L |
| Total height | 43.5 mm |
| Total length | 67 mm |
| Type | Manual valve |
| Unit | Each |
| Weight | 0.3 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 372 g |
| Dimensions | 170 × 75 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000237826

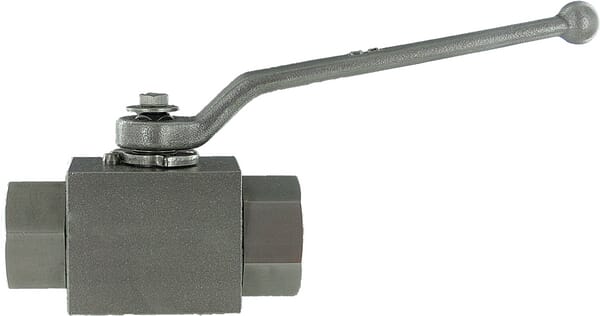

PH Hydraulik Ball valve 6L SS BVM06LSS
£76.94 excl.
£92.33 incl.
In stock
Expected to ship on Thursday 24 September
BPA000402373
PH Hydraulik Male Stud Elbow 6LL x 1/8" BSPT SS WES6LLRK18SS
£6.15 excl.
£7.38 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000288108

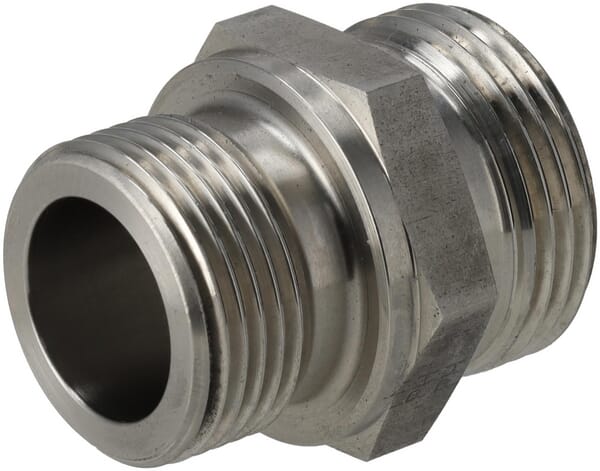

PH Hydraulik Male Stud coupling 20S x M30x2 SS GES20SR1SS
£19.18 excl.
£23.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000287862
PH Hydraulik Male Stud coupling 12L x M14 SS GES12LM14SS
£4.13 excl.
£4.95 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000336546
PH Hydraulik Insert DN16-1" ORFS-45° SS PAV161645SS
£122.49 excl.
£146.99 incl.
In stock
Expected to ship on Thursday 24 September
BPA000342938

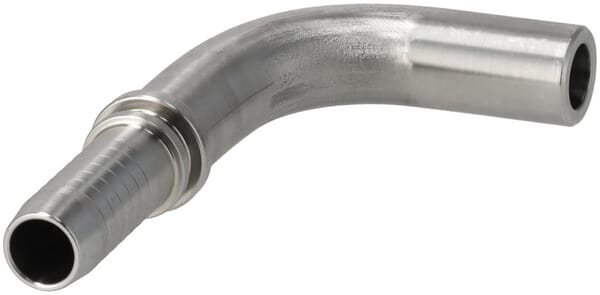

PH Hydraulik Insert DN06-diameter 6mm-90°-SS PT6690SS
