£42.16
excl. VAT
£50.59 incl. VAT
£50.59
incl. VAT
£42.16 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| AThread diameter | 42 mm |
|---|---|
| Connection 1, type | Thread |
| DIN standard | 3861 |
| Includes | Stop |
| LLength | 34 mm |
| Material | Stainless steel AISI 316L |
| Max working pressure | 420 BAR |
| Nominal diameter | 30 mm |
| Product details | Sealing plugs, metric with straight thread, Cutting ring fitting with 24° cone, Outer hex drive, Standard : W DIN 3861, Stainless steel : AISI 316 ti, Temperature range : -20°C to +200°C, When fitting stainless steel parts, grease the threads with ceramic, teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series | S |
| Shape | Straight |
| SWWrench/Spanner size | 46 mm |
| Thread length | 20 mm |
| Thread pitch | 2.00 mm |
| Thread type | Metric |
| Type | Swivel plug |
| Type - male/female | Male |
| Unit | Each |
| Working diameter | 30 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 322 g |
| Dimensions | 54 × 54 × 38 mm |
| Dangerous goods | No |
You might also like
BPA000237854
PH Hydraulik Ball valve 16S SS BVR16SSS
£82.50 excl.
£99.00 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287211
PH Hydraulik Straight Coupling 30S SS GS30SSS
£33.93 excl.
£40.72 incl.
In stock
Expected to ship on Thursday 24 September
BPA000288211
PH Hydraulik Male Stud coupling 35L x 1-1/4" NPT SS GES35L114NPTSS
£37.09 excl.
£44.51 incl.
In stock
Expected to ship on Thursday 24 September

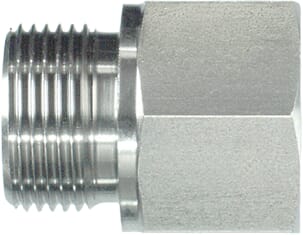

BPA000395989
PH Hydraulik Adaptor M/F 3/8" BSPx1/2" BSP SS VRB0608SS
£14.27 excl.
£17.12 incl.
Backorder available
Usually ships within 3–8 weeks

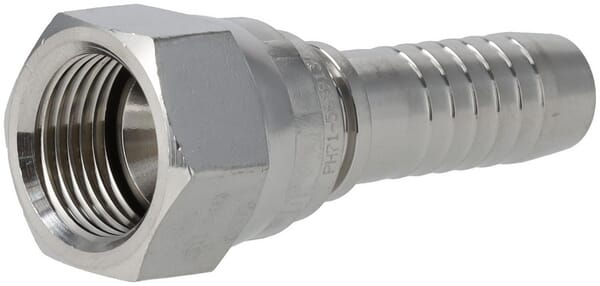

BPA000336276
