£25.14
excl. VAT
£30.17 incl. VAT
£30.17
incl. VAT
£25.14 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 16 mm |
| Connection 2, thread diameter | M24 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 16 mm |
| Includes | Coupling, Without cutting ring and nut |
| Inside length | 71 mm |
| Outside diameter | 35 mm |

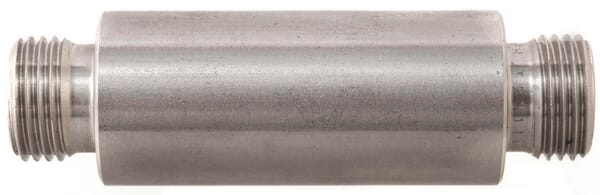

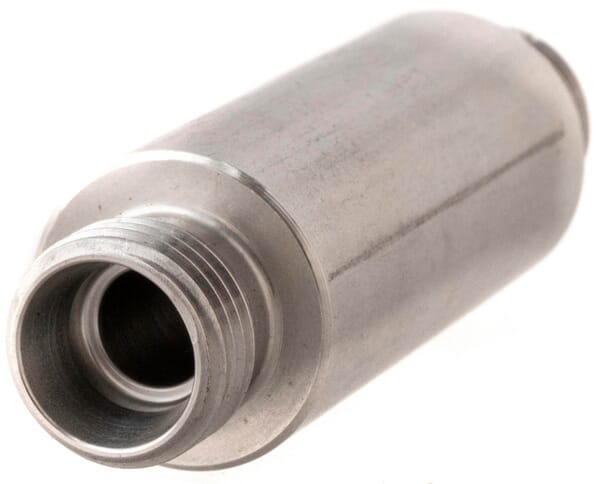

| Product details | Bulkhead couplings, weldable, Metric cutting ring connection, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 16S |
| Shape | Straight |
| Total length | 88 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 456 g |
| Dimensions | 105 × 36 × 36 mm |
| Dangerous goods | No |
