£18.30
excl. VAT
£21.96 incl. VAT
£21.96
incl. VAT
£18.30 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M18 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 22.0 mm |
| Connection no 1 center to end distance | 17 mm, 56 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 wrench size | 22.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 24 mm |
| Includes | Bulkhead coupling, Nut, Without cutting rings and union nuts |
| Inside diameter | 10 mm |
| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. |
| Material | Stainless steel |
| Max working pressure | 315 BAR |
| Product details | Bulkhead couplings 90°, with mounting nut, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 12L |
| Series connection 2 | 12L |
| Shape | Bulkhead 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 105 g |
| Dimensions | 70 × 40 × 30 mm |
| Dangerous goods | No |
You might also like

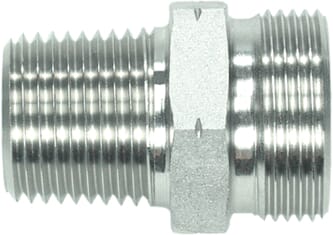

BPA000288271
PH Hydraulik Male Stud coupling 6LL x M8 K SS GES6LLMK8SS
£3.21 excl.
£3.85 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287976
PH Hydraulik Male Stud coupling 15L x 3/8" NPT SS GES15L38NPTSS
£8.69 excl.
£10.43 incl.
In stock
Expected to ship on Thursday 24 September

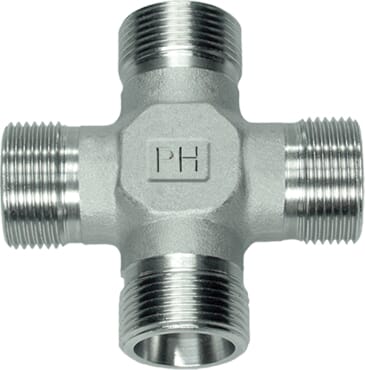

BPA000306339
PH Hydraulik Cross Fitting 6L SS KS6LSS
£17.08 excl.
£20.50 incl.
In stock
Expected to ship on Thursday 24 September

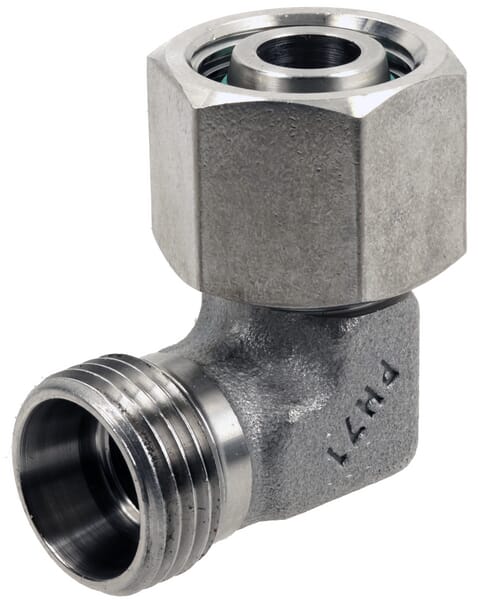

BPA000268309
PH Hydraulik Adjustable Elbow 12L SS EWSD12LSS
£15.51 excl.
£18.61 incl.
In stock
Expected to ship on Thursday 24 September
BPA000402352
PH Hydraulik Male Stud Elbow 18L x 1/2" BSPT SS WES18LRK12SS
£15.05 excl.
£18.06 incl.
Backorder available
Usually ships within 3–8 weeks

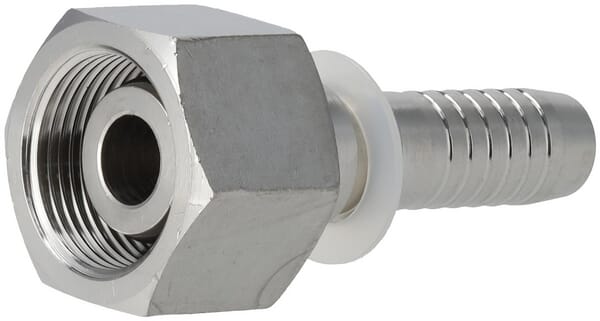

BPA000344175
