£110.97
excl. VAT
£133.16 incl. VAT
£133.16
incl. VAT
£110.97 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details
| Cone angle | 24 ° |
|---|---|
| Connection 1, thread diameter | M45 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Cutting ring |
| Connection 1, type - male/female | Male |
| Connection 2, diameter | 35 mm |
| Connection 2, thread diameter | M45 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Cutting ring |
| Connection 2, type - male/female | Male |
| Connection 2, wrench/spanner size | 50.0 mm |
| Connection no 1 center to end distance | 34.5 mm, 86 mm |
| Connection no 1 diameter | 35 mm |
| Connection no 1 wrench size | 50.0 mm |
| DIN standard | 80750, 2401, 2353 |
| Hexagon nut size | 55 mm |
| Includes | Bulkhead coupling, Nut, Without cutting rings and union nuts |
| Inside diameter | 30 mm |
| Long description | Bulkhead couplings are used where hydraulic pipes must pass through a wall or bulkhead, with a focus on maintaining the seal and integrity of the system. |
| Material | Stainless steel |
| Max working pressure | 160 BAR |
| Product details | Bulkhead couplings 90°, with mounting nut, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 35L |
| Series connection 2 | 35L |
| Shape | Bulkhead 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 794 g |
| Dimensions | 115 × 80 × 58 mm |
| Dangerous goods | No |
You might also like
BPA000396375
PH Hydraulik Threaded Port plug 1" BSP WD SS VSR16WDSS
£16.89 excl.
£20.27 incl.
In stock
Expected to ship on Wednesday 23 September

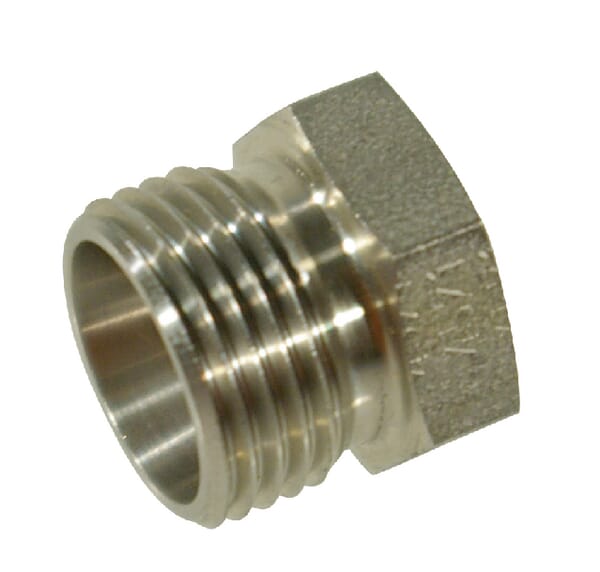

BPA000396298
PH Hydraulik Blanking End 30S SS VSK30SSS
£42.16 excl.
£50.59 incl.
In stock
Expected to ship on Wednesday 23 September

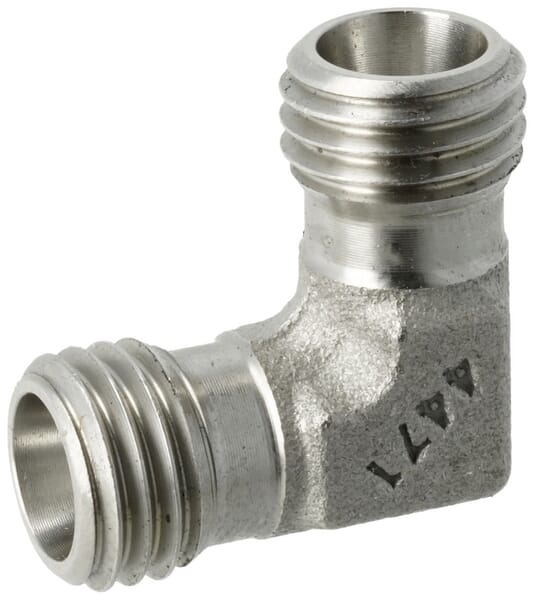

BPA000399934
PH Hydraulik Elbow 6L SS WS6LSS
£5.57 excl.
£6.68 incl.
Backorder available
Usually ships within 3–8 weeks

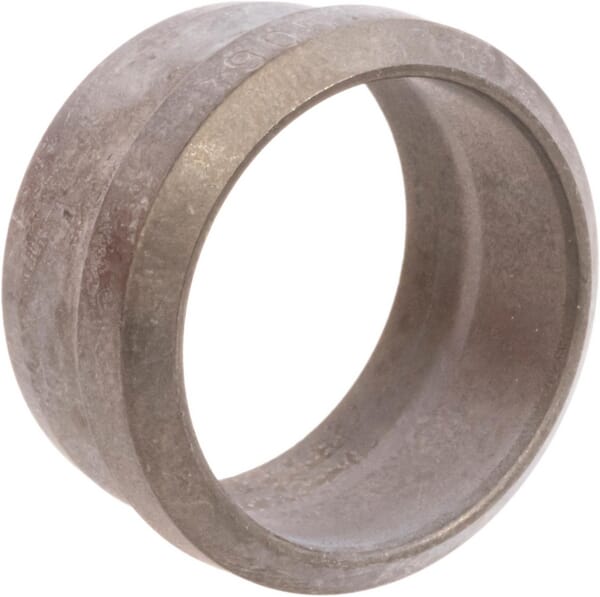

BPA000341443
PH Hydraulik Cutting Ring 20S SS PR20SSS
£2.57 excl.
£3.08 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000344204
PH Hydraulik Insert DN20-M30x2.0-20S SS PGSO2030SS
£34.17 excl.
£41.00 incl.
In stock
Expected to ship on Thursday 24 September

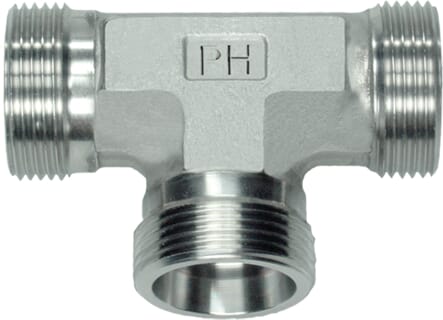

BPA000376065
