£10.17
excl. VAT
£12.20 incl. VAT
£12.20
incl. VAT
£10.17 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Connection 1, thread diameter | 3/8 Inch |
|---|---|
| Connection 1, thread type | BSPT |
| Connection 1, type | Thread |
| Connection 2, centre to end distance | 28 mm |
| Connection 2, diameter | 10 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 17.5 mm |
| Connection no 1 diameter | 10 mm |
| Connection no 1 thread length | 15.2 mm |
| Connection no 1 wrench size | 22.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 7 mm |
| ISO standard | 228 |
| Max working pressure | 630 BAR |
| Product details | Bend 90°, Screw-in side: NPT, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 10S |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 54 g |
| Dimensions | 39 × 34 × 20 mm |
| Dangerous goods | No |
You might also like

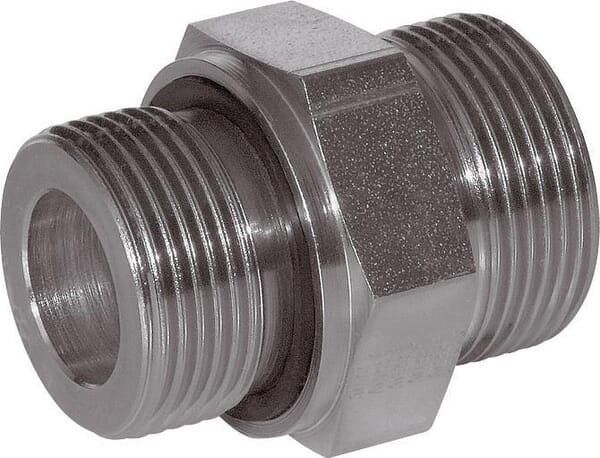

BPA000288277
PH Hydraulik Male Stud coupling 6L x M10 WD SS GES6LM10WDSS
£2.86 excl.
£3.43 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258268
PH Hydraulik Swivel Connector M/F 30S x 1" BSP WD SS EGESD30SR1WDSS
£63.48 excl.
£76.18 incl.
In stock
Expected to ship on Thursday 24 September

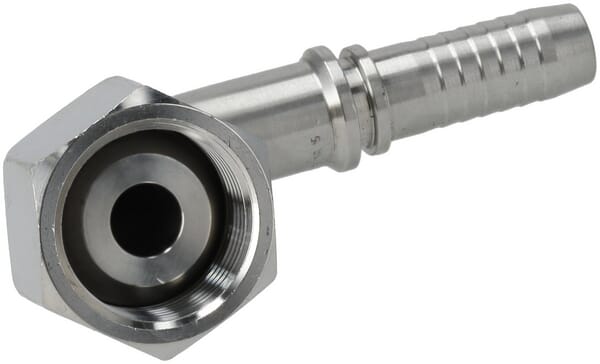

BPA000338513
PH Hydraulik Insert DN20-3/4 BSP-90º SS PF201290SS
£41.97 excl.
£50.36 incl.
In stock
Expected to ship on Thursday 24 September

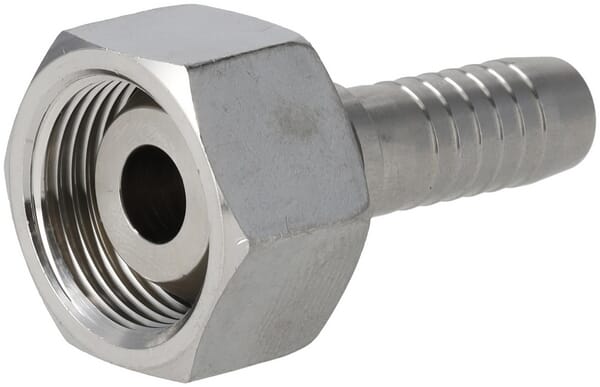

BPA000338467
