£4.34
excl. VAT
£5.21 incl. VAT
£5.21
incl. VAT
£4.34 excl. VAT
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection 1, thread diameter | 1/8 Inch |
|---|---|
| Connection 1, thread type | BSPT |
| Connection 1, type | Thread |
| Connection 2, centre to end distance | 15 mm |
| Connection 2, diameter | 6 mm |
| Connection 2, thread diameter | M12 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 12.0 mm |
| Connection no 1 center to end distance | 27 mm |
| Connection no 1 diameter | 6 mm |
| Connection no 1 thread length | 8 mm |
| Connection no 1 wrench size | 14.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 4 mm |
| ISO standard | 228 |
| Max working pressure | 315 BAR |
| Product details | Bend 90°, Screw-in side: BSP with conical thread, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 6L |
| Shape | Elbow 90° |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 21 g |
| Dimensions | 35 × 30 × 18 mm |
| Dangerous goods | No |
You might also like

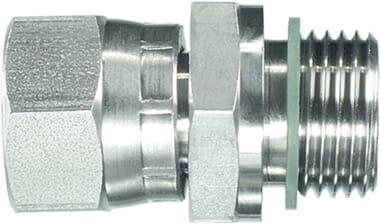

BPA000393318
PH Hydraulik Straight Adaptor M/F 1/2"x3/8" BSP SS VNBW0806SS
£13.85 excl.
£16.62 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000232566
PH Hydraulik Weld Stub coupling 30S SS ASS30SSS
£28.59 excl.
£34.31 incl.
In stock
Expected to ship on Thursday 24 September
BPA000396276
PH Hydraulik Blanking End 12L SS VSK12LSS
£4.28 excl.
£5.14 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000348283
PH Hydraulik Reducing coupling 42Lx22L SS REDSD4222LSS
£74.15 excl.
£88.98 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000348275
PH Hydraulik Reducing coupling 38Sx25S SS REDSD3825SSS
£93.10 excl.
£111.72 incl.
In stock
Expected to ship on Wednesday 23 September

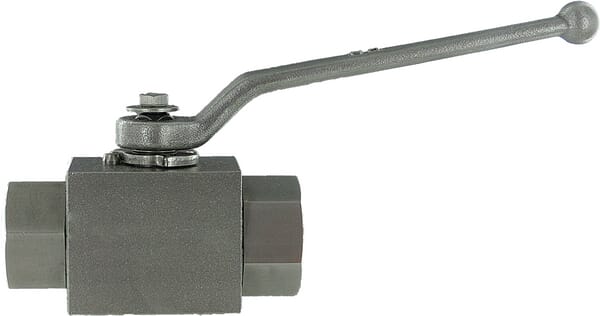

BPA000237807
