£10.28
excl. VAT
£12.34 incl. VAT
£12.34
incl. VAT
£10.28 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection 1, thread diameter | 1/4 Inch |
|---|---|
| Connection 1, thread type | NPT |
| Connection 1, type | Thread |
| Connection 2, centre to end distance | 28 mm |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Connection 2, wrench/spanner size | 19.0 mm |
| Connection no 1 center to end distance | 17 mm |
| Connection no 1 diameter | 12 mm |
| Connection no 1 thread length | 15.1 mm |
| Connection no 1 wrench size | 22.0 mm |
| DIN standard | 2401, 2353, 228, 3852 |
| Includes | Coupling, Without cutting ring and nut |
| Inside diameter | 7 mm, 9 mm |
| ISO standard | 228 |
| Max working pressure | 315 BAR |

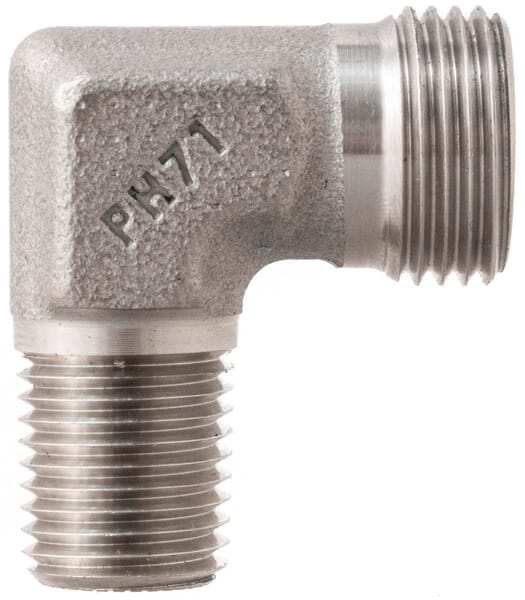

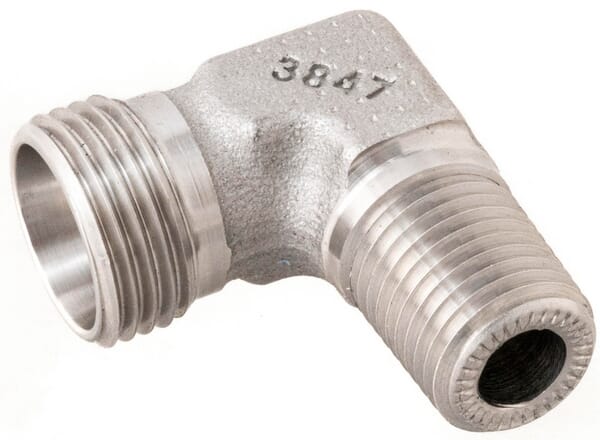

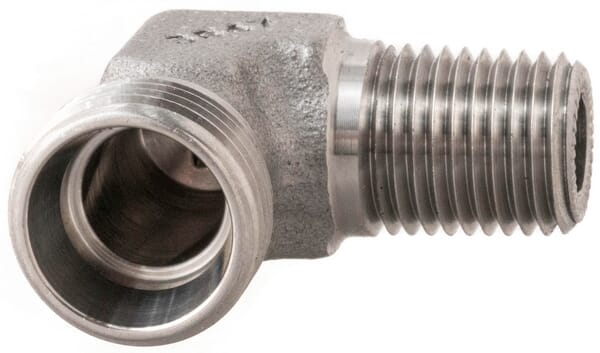

| Product details | Bend 90°, Screw-in side: NPT, Metric cutting ring fitting, Stainless steel: AISI 316 ti, Temperature range: -60°C to +400°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Suitable for extreme temperatures, Food-safe, Durable |
| Series connection 1 | 12L |
| Shape | Elbow 90° |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 47 g |
| Dimensions | 39 × 33 × 17 mm |
| Dangerous goods | No |
