£469.65
excl. VAT
£563.58 incl. VAT
£563.58
incl. VAT
£469.65 excl. VAT
Free shipping
In stock
Expected to ship on Wednesday 23 September
Product details
| Connection thread diameter | 3/4 Inch |
|---|---|
| Connection thread type | G |
| Connection type | Swivel nut |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 41.0 mm |
| Housing height | 57 mm |
| Housing length | 61 mm |
| Housing material | Stainless steel |
| Housing width | 65 mm |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 400 BAR |
| Min medium temperature | -20 °C |
| Number of ports | 2 |
| Product details | 3-way ball valves, Block shape, BSP female thread, L bore, All ports may be used as pressure connection, Seal: NBR and POM, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Sealing material | Nitrile rubber, POM |
| Total length | 96 mm |
| Type | Manual valve |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2228 g |
| Dimensions | 230 × 120 × 66 mm |
| Dangerous goods | No |
You might also like
BPA000338533
PH Hydraulik Insert DN25-1" BSP SS PF2516SS
£34.33 excl.
£41.20 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000237838

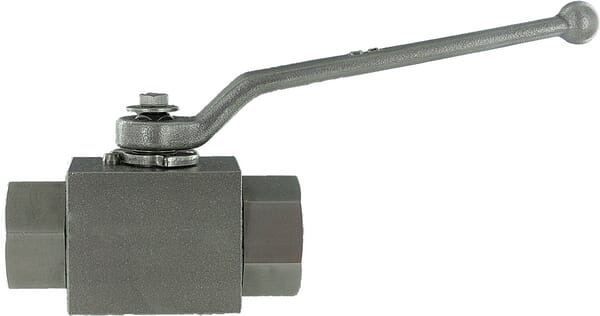

PH Hydraulik Ball valve 22L SS BVM22LSS
£173.55 excl.
£208.26 incl.
In stock
Expected to ship on Thursday 24 September
BPA000258191
PH Hydraulik Swivel Connector M/F 10S x 3/8"BSP WD SS EGESD10SR38WDSS
£12.69 excl.
£15.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000344242

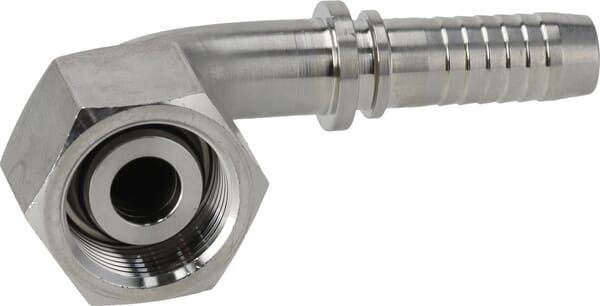

PH Hydraulik Insert DN06-M18x1.5-10S-90° SS PGSO61890SS
£22.16 excl.
£26.59 incl.
In stock
Expected to ship on Thursday 24 September
BPA000393216

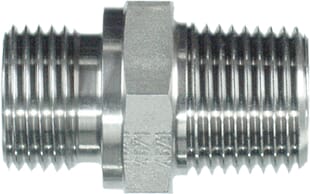

PH Hydraulik Straight Adaptor M 1/4" BSP x 1/4" NPT SS VNBN04SS
