£280.67
excl. VAT
£336.80 incl. VAT
£336.80
incl. VAT
£280.67 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connection thread diameter | 3/8 Inch |
|---|---|
| Connection thread type | BSP |
| Connection type | Thread |
| Connection type - male/female | Female |
| Connection wrench/spanner size | 27.0 mm |
| Housing height | 40 mm |
| Housing length | 42 mm |
| Housing material | Stainless steel |
| Housing width | 45 mm |
| Includes | Ball valve, Lever |
| Max medium temperature | 100 °C |
| Max working pressure | 400 BAR |
| Min medium temperature | -20 °C |
| Number of ports | 3 |
| Number of positions | 2 |

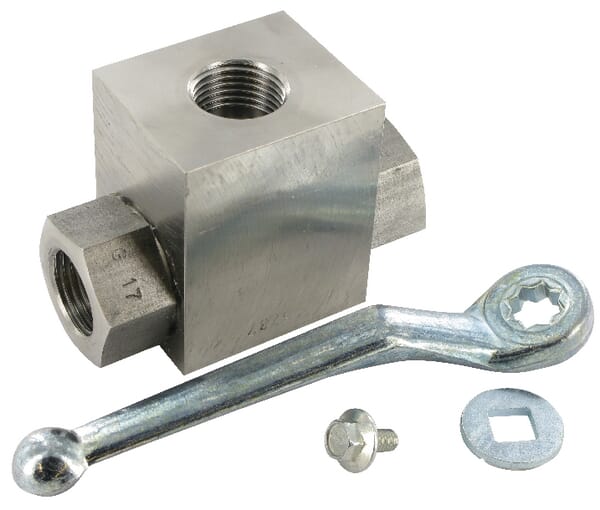

| Product details | 3-way ball valves, Block shape, BSP female thread, L bore, All ports may be used as pressure connection, Seal: NBR and POM, Stainless steel: AISI 316 ti, Temperature range: -20°C to +100°C, When fitting stainless steel parts, grease the threads with ceramic, Teflon or graphite grease |
| Pros | High corrosion resistance, Resistant to chemicals, Food-safe, Durable |
| Safety factor code | 1.5 |
| Sealing material | Nitrile rubber, POM |
| Total length | 73 mm |
| Type | Manual valve |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 744 g |
| Dimensions | 140 × 65 × 60 mm |
| Dangerous goods | No |
