£1,017.99
excl. VAT
£1,221.59 incl. VAT
£1,221.59
incl. VAT
£1,017.99 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

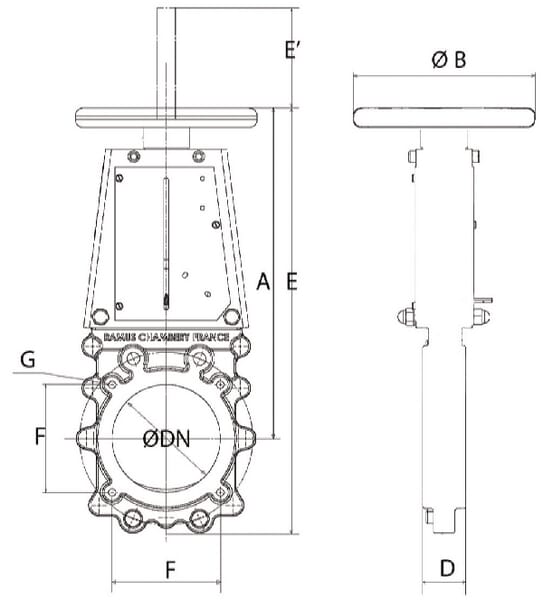

| APassage hole centre to wheel distance | 552 mm |
|---|---|
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | No stagnant areas, Perfect bi-directional seal |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DFlange thickness | 60 mm |
| E'Spindle height | 190 mm |
| EWheel to bottom distance | 710 mm |
| FFlange mounting bolts/holes distance | 180 mm |
| Flange mounting holes number | 4 |
| GFlange mounting bolts/holes thread diameter | M12 |
| Max working pressure | 2.5 BAR |
| ØBHand wheel diameter | 300 mm |
| ØDNPassage hole nominal diameter | 200 mm |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Type of drive/steering | Hand wheel |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 34000 g |
| Dimensions | 700 × 300 × 120 mm |
| Dangerous goods | No |
