£895.28
excl. VAT
£1,074.34 incl. VAT
£1,074.34
incl. VAT
£895.28 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
|---|---|
| Benefits | No stagnant areas, Perfect bi-directional seal |

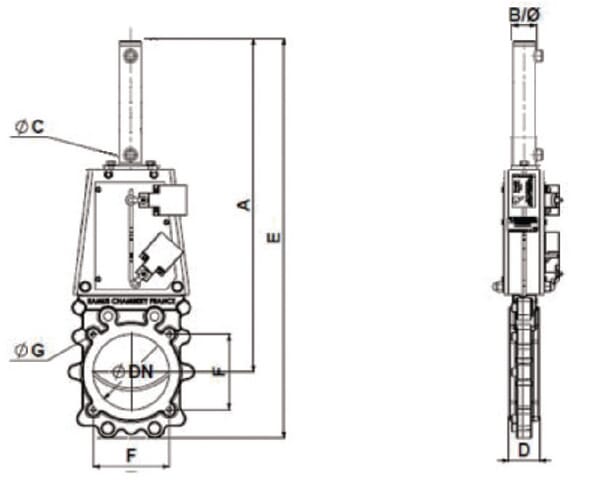

| B/ØCylinder outside diameter | 40 mm |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DTotal width | 60 mm |
| ETotal height | 956 mm |
| FFlange mounting bolts/holes circle diameter | 180 mm |
| Flange mounting holes number | 4 |
| Max working pressure | 2.5 BAR |
| ØCCylinder mounting thread diameter | 3/8 Inch |
| ØDNPassage hole nominal diameter | 200 mm |
| ØGFlange mounting bolts/holes thread diameter | M12 |
| Passage hole centre to lever end distance | 800 mm |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Unit | Each |
| Weight | 31 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 31500 g |
| Dimensions | 960 × 285 × 100 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000381904
Ramus Knife valve+hand wheel DN250 VGRH250
£2,088.53 excl.
£2,506.24 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

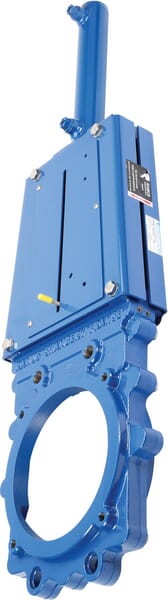

BPA000381897
Ramus Metal valve+hydraulic cylinder DN150 VGRDEH150
£901.15 excl.
£1,081.38 incl.
In stock
Expected to ship on Monday 28 September
Free shipping
BPA000381903
Ramus Knife valve+hand wheel DN200 VGRH200
£1,017.99 excl.
£1,221.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

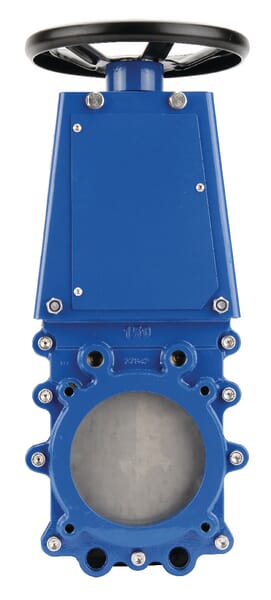

BPA000381901
Ramus Knife valve+hand wheel DN100 VGRH100
£750.36 excl.
£900.43 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

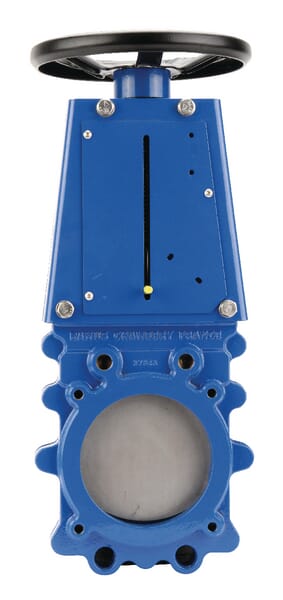

BPA000381902
Ramus Metal valve+hand wheel DN150 VGRH150
£816.01 excl.
£979.21 incl.
In stock
Expected to ship on Friday 25 September
Free shipping

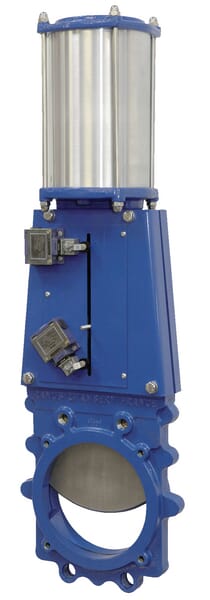

BPA000381908
