£901.15
excl. VAT
£1,081.38 incl. VAT
£1,081.38
incl. VAT
£901.15 excl. VAT
Free shipping
In stock
Expected to ship on Monday 28 September
Product details
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
|---|---|
| Benefits | No stagnant areas, Perfect bi-directional seal |

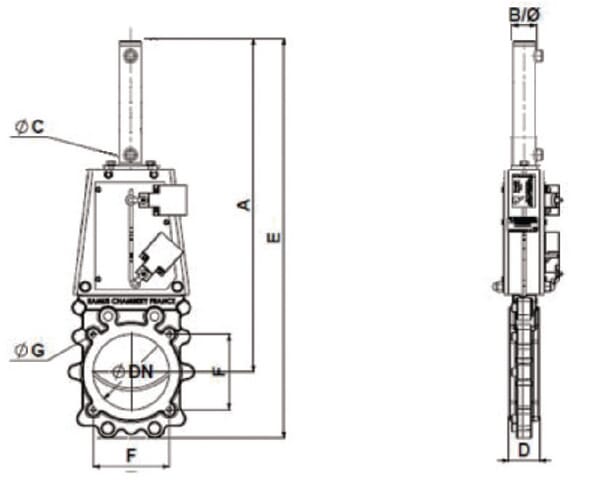

| B/ØCylinder outside diameter | 40 mm |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DTotal width | 60 mm |
| ETotal height | 795 mm |
| FFlange mounting bolts/holes circle diameter | 150 mm |
| Flange mounting holes number | 4 |
| Max working pressure | 2.5 BAR |
| ØCCylinder mounting thread diameter | 3/8 Inch |
| ØDNPassage hole nominal diameter | 150 mm |
| ØGFlange mounting bolts/holes thread diameter | M12 |
| Passage hole centre to lever end distance | 664 mm |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Unit | Each |
| Weight | 20 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 24000 g |
| Dimensions | 830 × 260 × 100 mm |
| Dangerous goods | No |
You might also like

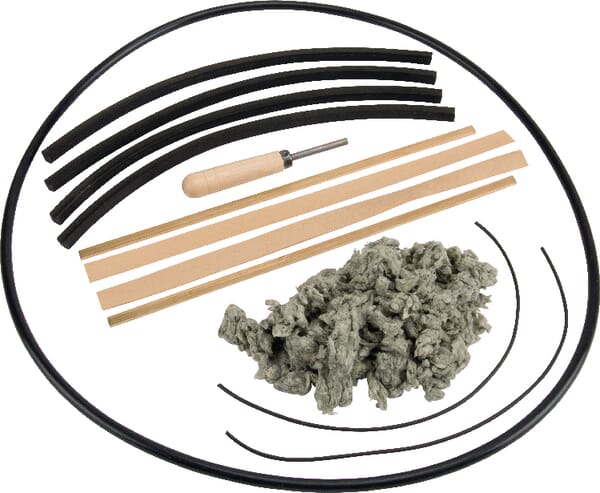

BPA000102515
Ramus Seal kit for knife valve 4" 39VGR07N
£84.10 excl.
£100.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

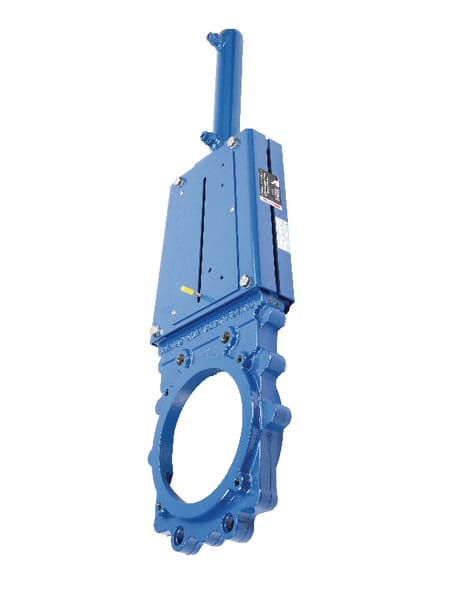

BPA000381896
Ramus Gate valve+hydraulic cylinder VGRDEH125
£1,119.18 excl.
£1,343.02 incl.
In stock
Expected to ship on Monday 28 September
Free shipping

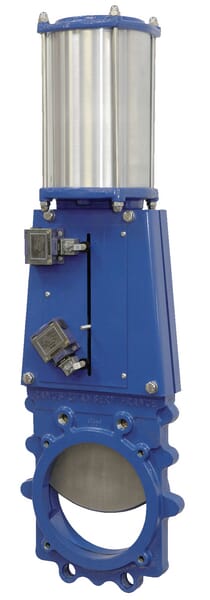

BPA000381906
Ramus Gate valve+pneumatic cylinder VGRP125
£1,465.27 excl.
£1,758.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

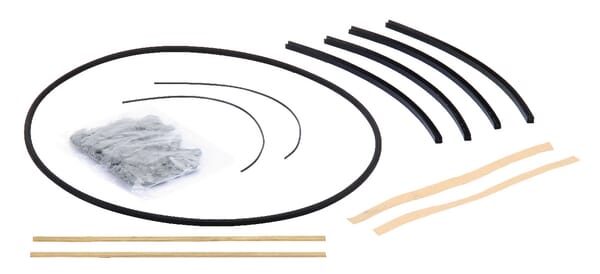

BPA000102518
Ramus Gasket set for 10" knife valve 39VGR11N
£115.27 excl.
£138.32 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

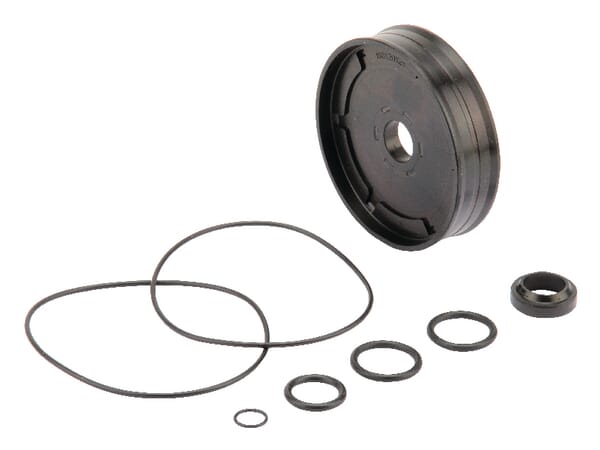

BPA000102513
