£1,711.47
excl. VAT
£2,053.76 incl. VAT
£2,053.76
incl. VAT
£1,711.47 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

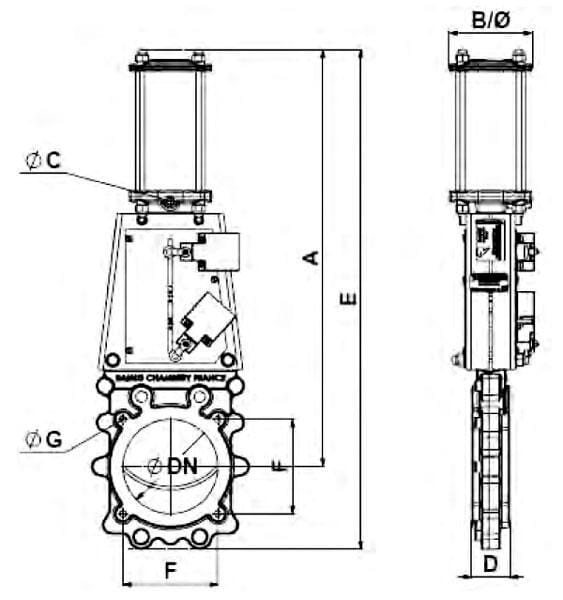

| APassage hole centre to lever end distance | 829 mm |
|---|---|
| Application range | Waste water treatment plants: untreated waste water, raw sludge, faecal matter etc., Biogas plants: food waste, slurry etc., Sugar industry: beet washing plant etc., Food industry: conveyors for cereals, vegetables etc., Pulp and paper industry |
| Benefits | No stagnant areas, Perfect bi-directional seal |
| B/ØCylinder outside diameter | 184 mm |
| Details | Valve end plate with cutting edge, Integrated through-flow |
| DTotal width | 60 mm |
| ETotal height | 985 mm |
| Flange mounting bolts/holes circle diameter | 180 mm |
| Flange mounting holes number | 4 |
| Max working pressure | 4 BAR |
| ØCCylinder mounting thread diameter | 1/4 Inch |
| ØDNPassage hole nominal diameter | 200 mm |
| ØGFlange mounting bolts/holes thread diameter | M12 |
| Properties | Two-piece body, Terminal ring around the plate, Transverse seal during operation, Refillable sealant, Cast metal housing, Stainless steel valve plate |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 39000 g |
| Dimensions | 1100 × 300 × 220 mm |
| Dangerous goods | No |
