£193.06
excl. VAT
£231.67 incl. VAT
£231.67
incl. VAT
£193.06 excl. VAT
Free shipping
In stock
Expected to ship on Friday 25 September
Product details
| Application range | Axle-hub connection, V-pulley, Sprockets, Fan blade |
|---|---|
| Benefits | Short assembly time, Lower machining costs |

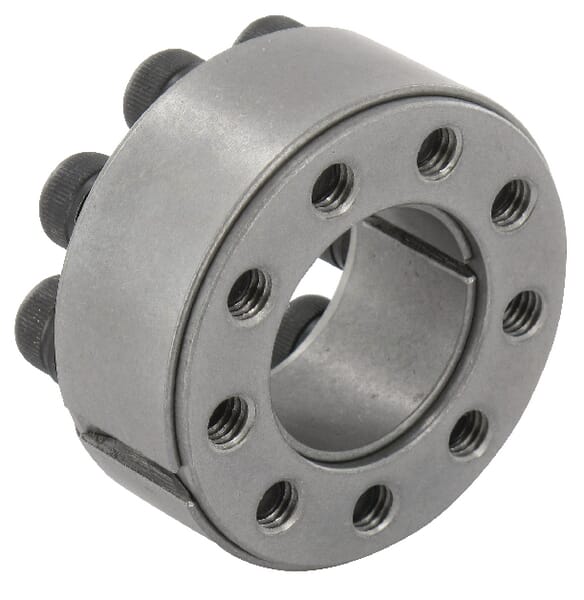

| Consists of | 2 conical half clamps, Outer ring, Inner ring, Pins |

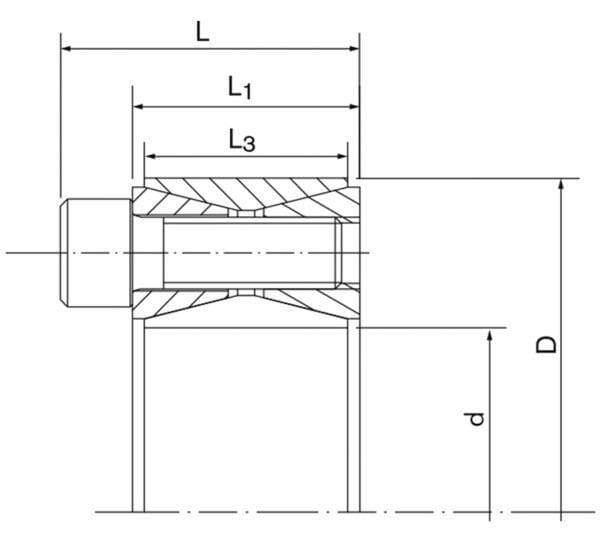

| dDiameter shaft max. | 45 mm |
| Details | Axle-hub connection without key, No axle weakening, Ideal at high speed, Simple assembly/dismantling, Precise centring |
| Dg (Clamping thread) | M8 x 22 |
| DOutside diameter | 75 mm |
| F ax (Transmissible axial force) | 84 kN |
| L1Length L1 | 24 mm |
| L3Length L3 | 20 mm |
| LLength | 33.5 mm |

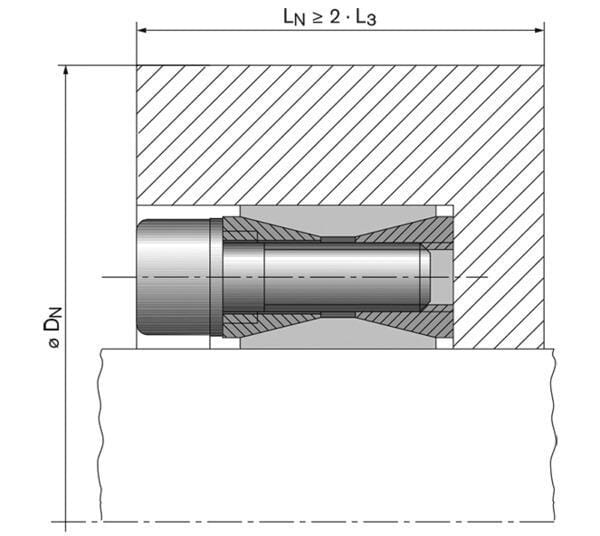

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 122 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 103 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 95 mm |
| Number of bolts | 12 |
| pN (Hub pressure at given TA) | 148 N/mm² |
| pW (Shaft pressure at given TA) | 247 N/mm² |
| TA (Locking torque) | 41 N·m |
| Technical info | Shaft tolerance between h8 and h9, Hub tolerance between h8 and h9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 2300 N·m |
| T (Transmissible tork at given TA) | 1886 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 556 g |
| Dimensions | 94 × 86 × 53 mm |
| Dangerous goods | No |
