£288.44
excl. VAT
£346.13 incl. VAT
£346.13
incl. VAT
£288.44 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Axle-hub connection, V-pulley, Sprockets, Fan blade |
|---|---|
| Benefits | Short assembly time, Lower machining costs |

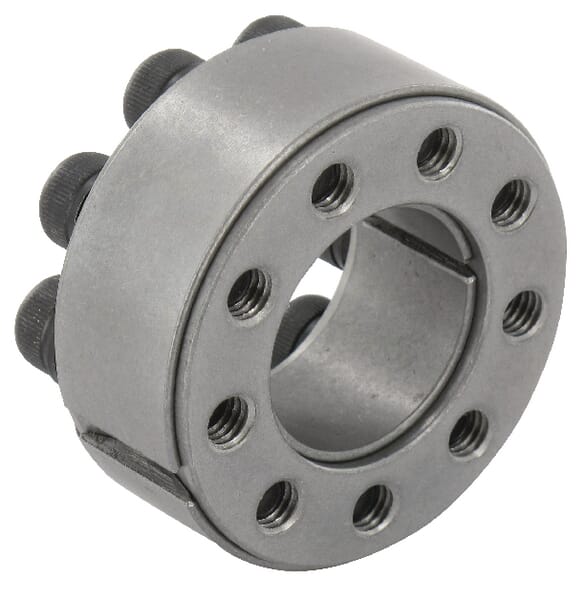

| Consists of | 2 conical half clamps, Outer ring, Inner ring, Pins |

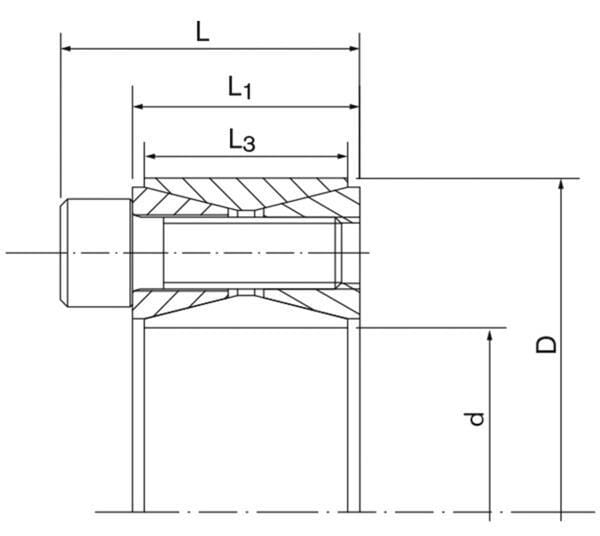

| dDiameter shaft max. | 90 mm |
| Details | Axle-hub connection without key, No axle weakening, Ideal at high speed, Simple assembly/dismantling, Precise centring |
| Dg (Clamping thread) | M10 x 25 |
| DOutside diameter | 130 mm |
| F ax (Transmissible axial force) | 175 kN |
| L1Length L1 | 28 mm |
| L3Length L3 | 24 mm |
| LLength | 39.5 mm |

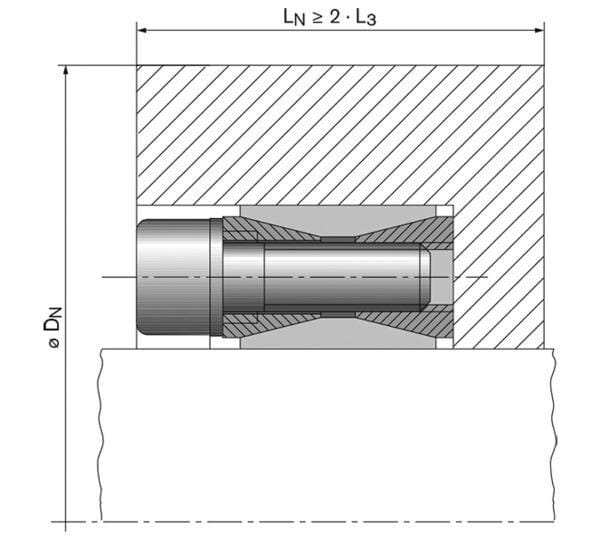

| Minimum required outside hub diameter at Rp0,2=200 N/mm² | 211 mm |
| Minimum required outside hub diameter at Rp0,2=300 N/mm² | 177 mm |
| Minimum required outside hub diameter at Rp0,2=400 N/mm² | 164 mm |
| Number of bolts | 16 |
| pN (Hub pressure at given TA) | 148 N/mm² |
| pW (Shaft pressure at given TA) | 214 N/mm² |
| TA (Locking torque) | 83 N·m |
| Technical info | Shaft tolerance between h8 and h9, Hub tolerance between h8 and h9, Material roughness < 3.2 µm, Material: steel C45E |
| Tmax (Maximum transmissible torque | 9900 N·m |
| T (Transmissible tork at given TA) | 7857 N·m |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1574 g |
| Dimensions | 139 × 139 × 45 mm |
| Dangerous goods | No |
