£73.55
excl. VAT
£88.26 incl. VAT
£88.26
incl. VAT
£73.55 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 80 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 150 mm |

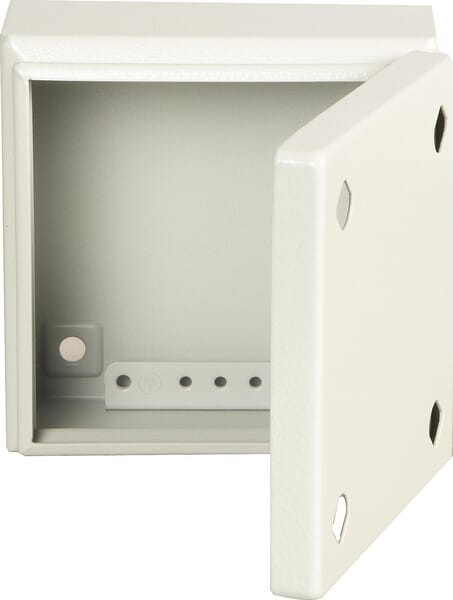

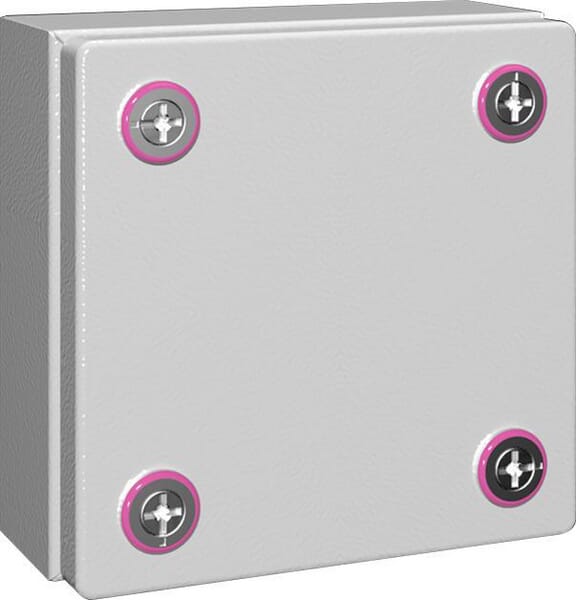

| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1514000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 12 |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Square |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 150 mm |
| With cover/lid | Yes |
| With transparent cover | No |
Logistics
| EAN | 4028177816282 |
|---|---|
| Unit of measure | BOX |
| Weight | 1181 g |
| Dimensions | 160 × 152 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000305435
Rittal Terminal box KX 150mm x 300mm x 80mm Steel KX1515000
£87.60 excl.
£105.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305491
Rittal Enclosure KX1579000
£336.08 excl.
£403.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000073021

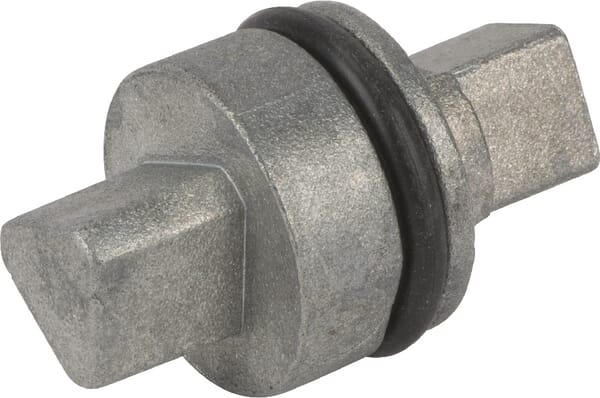

Rittal SZ lock insert 2463000
£7.60 excl.
£9.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305467
Rittal Terminal box KX 200mm x 200mm x 80mm Stainless steel KX1562000
£358.01 excl.
£429.61 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000289578
Rittal Cable gland M20x1.5; PA; Black HSKKM20X15
£1.94 excl.
£2.33 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000305487
Rittal Mounting plate KX 125x185x2mm KX1575800
£11.77 excl.
£14.12 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping
BPA000340446

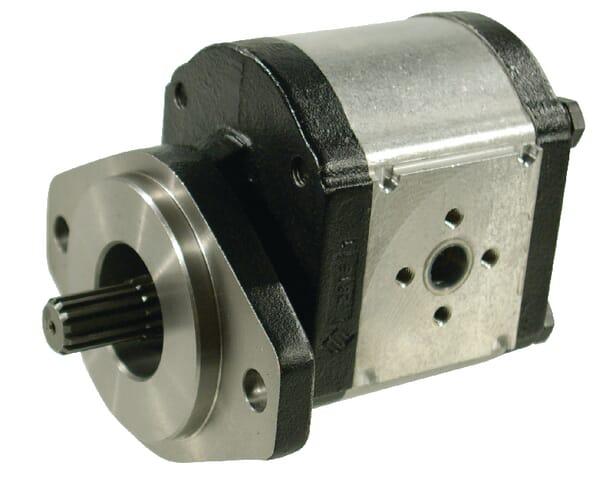

Casappa Pump PLP30.51S0-04S5-LED/EB-N-FS PLP3051S004S5
