£156.36
excl. VAT
£187.63 incl. VAT
£187.63
incl. VAT
£156.36 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Cabinet material thickness | 1.25 mm |
|---|---|
| Circuit integrity | None |
| Cover attachment | Snapped on |
| Depth | 120 mm |
| Explosion-tested version | No |
| Extension possible | No |
| For Ex-Zone dust | n/a |
| For Ex-Zone gas | n/a |
| Halogen free | No |
| Housing colour | Grey |
| Housing material | Steel |
| Impact strength class code | IK08 |
| Includes | Enclosure with cover, Mini cam lock |
| Insulation class | 66 |
| Length | 500 mm |
| Long description | The compact KX enclosure, KX terminal box, with flange allows flexible internal expansion and simple cable routing with optimal space utilisation. |
| Manufacturer Product ID | 1509000 |
| Mounting method | Surface mounted |
| Operating temperature | -40-80 °C |
| Product details | Enclosure: Sheet steel, Cover: Sheet steel, all-round foamed-in PU seal |
| Protection class (NEMA) | 12 |
| Rated insulation voltage Ui | 2500 V |
| Sealable | No |
| Shape | Rectangular |
| Type of inlet | Gland nut |
| Unit | Box |
| Width | 300 mm |
| With cover/lid | No |
| With transparent cover | No |
Compatible accessories
Parts and components that work with this product.
1590010

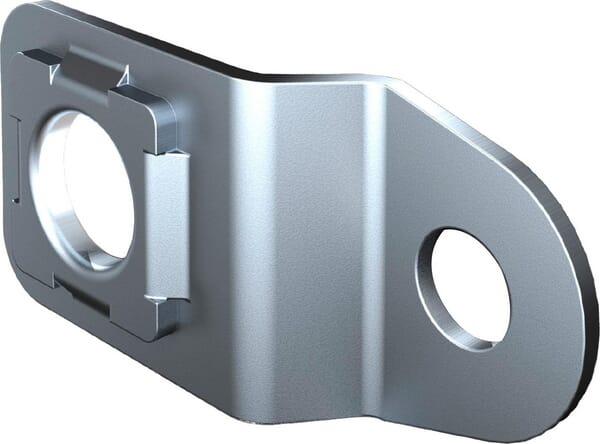

Rittal Wall mounting bracket 1590010
£27.14 excl.
£32.57 incl.
2309000

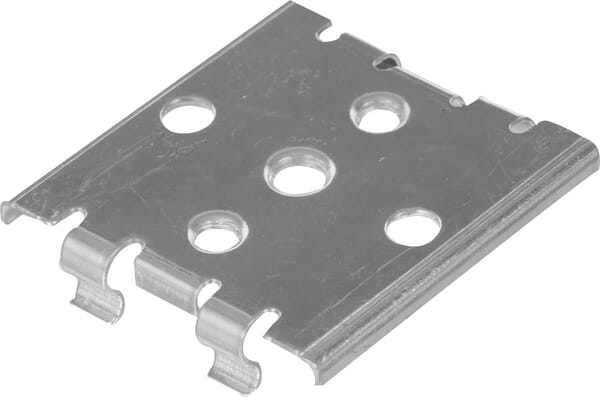

Rittal Mounting clip 2309000
£85.30 excl.
£102.36 incl.
KX1569800
Rittal Mounting plate KX 275x485x2mm KX1569800
£35.46 excl.
£42.55 incl.
KX1592220
Rittal Cover hinges KX1592220
£19.61 excl.
£23.53 incl.
SZ2459500
Rittal SZ Plugs M12x1.5 P005 SZ2459500
£46.80 excl.
£56.16 incl.
Logistics
| EAN | 4028177816237 |
|---|---|
| Unit of measure | BOX |
| Weight | 5563 g |
| Dimensions | 510 × 310 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000305489
Rittal Enclosure KX1577000
£219.82 excl.
£263.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000305436

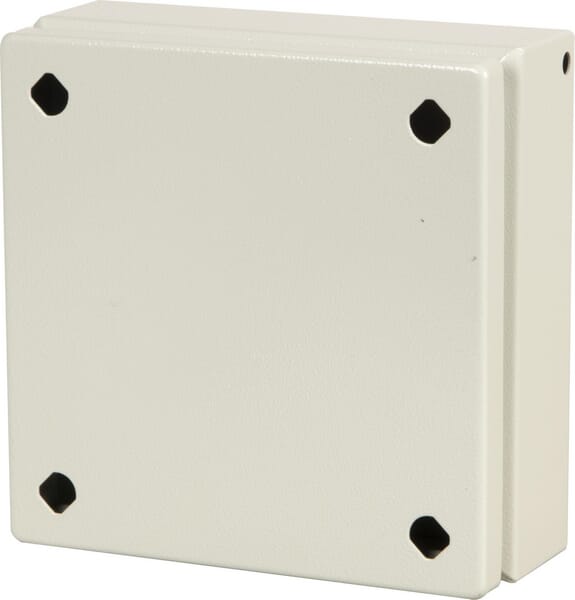

Rittal Terminal box KX 200mm x 200mm x 80mm Steel KX1516000
£86.21 excl.
£103.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000072984

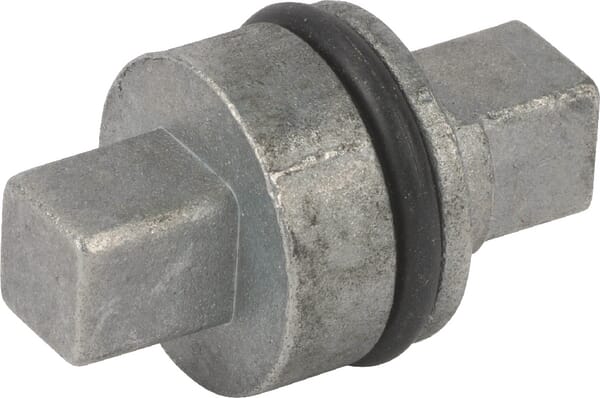

Rittal SZ lock insert 2460000
£7.60 excl.
£9.12 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000233474
Rittal Enclosure AX1057000
£458.76 excl.
£550.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000305471

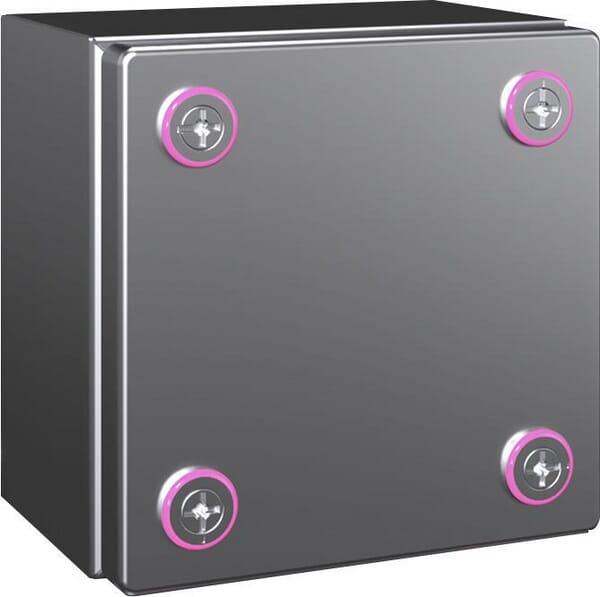

Rittal Terminal box KX 150mm x 150mm x 120mm Stainless steel KX1564000
