£12.73
excl. VAT
£15.28 incl. VAT
£15.28
incl. VAT
£12.73 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Ball material | Brass CW617N-UNIEN12165 |
|---|---|

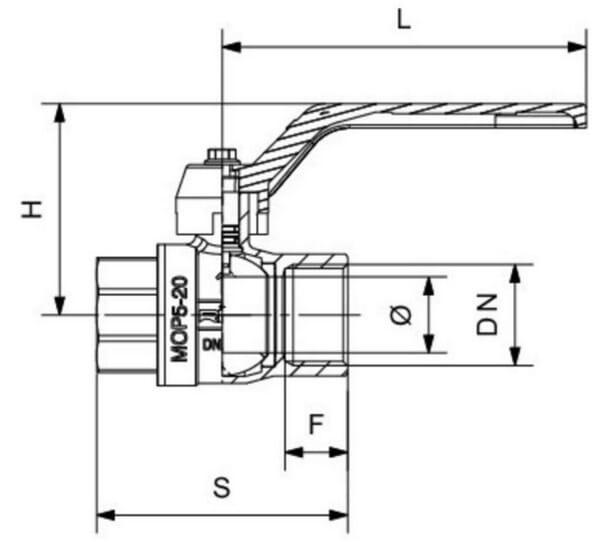

| Connection 2, thread diameter | 1/4 Inch |
| Connection 2, type - male/female | Female |
| Connection thread diameter | 1/4 Inch |
| Connection type | Thread |
| Connection type - male/female | Female |
| FConnection 2, thread length | 12 mm |
| HCenter bore to top distance | 48 mm |
| Housing material | Brass CW617N-UNIEN12165 |
| Housing surface treatment | Nickel-plated |
| LHandle length | 80 mm |
| Max working pressure | 64 BAR |
| Max working temperature | 120 °C |
| Min working temperature | -10 °C |
| Number of ports | 2 |
| Number of positions | 2 |
| ØNominal inner diameter | 10 mm |
| Product details | This heavy duty ball valve range features a full bore design, ensuring an unobstructed flow path without any narrowing, maximizing efficiency and minimizing pressure loss, Material: Housing: brass CW617N, nickel-plated, Spindle: brass CW614N, O-rings NBR + FKM, Ball: brass, chrome-plated, with PTFE seal rings, Lever: aluminium, The maximum working pressure (PN) means at a room temperature of about 23°C, Operating temperature: -20°C (without liquid) +150°C |
| STotal length | 45 mm |
| Type | Heavy |
| Unit | Each |
Logistics
| EAN | 8017685000012 |
|---|---|
| Unit of measure | EA |
| Weight | 115 g |
| Dimensions | 110 × 50 × 30 mm |
| Dangerous goods | No |
