£697.26
excl. VAT
£836.71 incl. VAT
£836.71
incl. VAT
£697.26 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

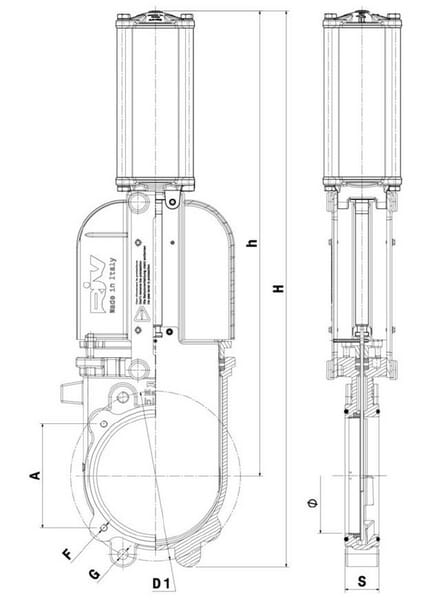

Product details
| Connection type | Double flanged |
|---|---|
| Flange 2 mounting bolts/holes thread diameter | M16 |
| Flange mounting bolts/holes distance | 150 mm |
| Flange mounting bolts/holes thread diameter | M12 |
| Flange thickness | 50 mm |
| Flow direction type | Bi-directional |
| Gate material | Stainless steel AISI 304 |
| Housing material | Cast iron |
| Max working pressure | 10 BAR |
| Passage hole centre to lever hole vertical distance | 558 mm |
| Passage hole nominal diameter | 100 mm |
| Total height | 664 mm |
| Type of drive/steering | Pneumatic double acting |
| Unit | Each |
| Water tight | No |
| Weight | 18.7 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
