£302.93
excl. VAT
£363.52 incl. VAT
£363.52
incl. VAT
£302.93 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | High radial loads and high speeds, Manual gearbox, Gearbox casing, Worm gear shaft, Spring plates |
|---|---|
| Basic radial load dynamic | 108000 N |
| Basic radial load static | 102000 N |
| Bearing model type | Cylindrical roller bearings |
| Bore type | Cylindrical |
| BWidth | 22 mm |
| Consists of | Cylindrical roller bearing with NUP inner ring |
| dInside diameter | 60 mm |
| DOutside diameter | 110 mm |
| Inner ring shape | Cylindrical |
| Limiting speed | 125 r/s |
| Material | Steel |
| Max rotation speed | 7500 r/min |
| Original number equivalent | NUP212ECJ |
| Radial internal clearance code | CN |
| Ref rotation speed | 6700 r/min |
| Regreasable | No |
| Rows number | 1 |
| Sealing | Open |
| Technical info | Outer ring with 2 fixed ribs, Inner ring with 1 fixed and 1 loose rib, Fixed bearing, to lock shaft axially in 2 directions |
| Unit | Each |
| Weight | 0.86 kg |
Logistics
| EAN | 7316577300867 |
|---|---|
| Unit of measure | EA |
| Weight | 860 g |
| Dimensions | — |
| Dangerous goods | No |
You might also like
Free shipping
BPA000326543

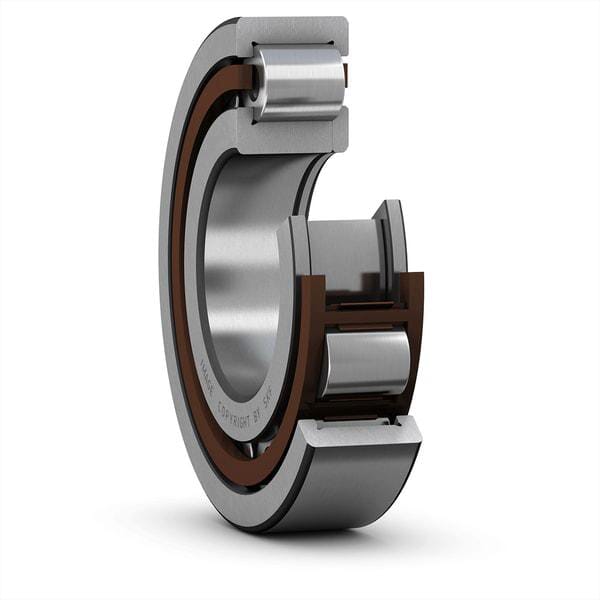

SKF Cylindrical roller bearing 60x110x22mm NUP212ECP
£174.51 excl.
£209.41 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326259
SKF Cylindrical roller bearing 17x40x12mm NU203ECPC3
£54.66 excl.
£65.59 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000129291

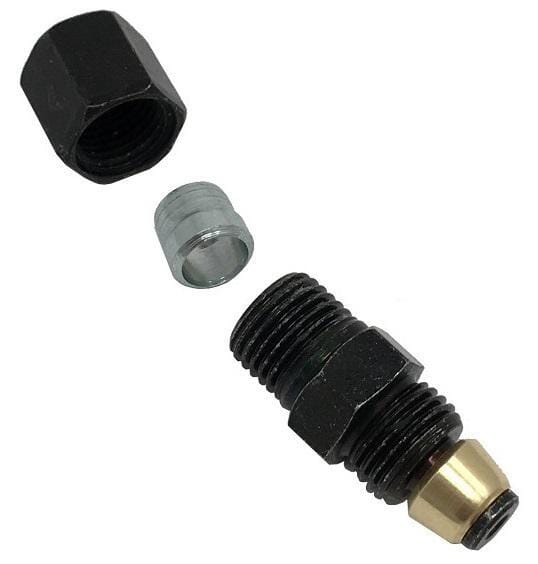

SKF Outlet screw 6 mm tube 504303444
£4.75 excl.
£5.70 incl.
In stock
Expected to ship on Friday 18 September
BPA000310761

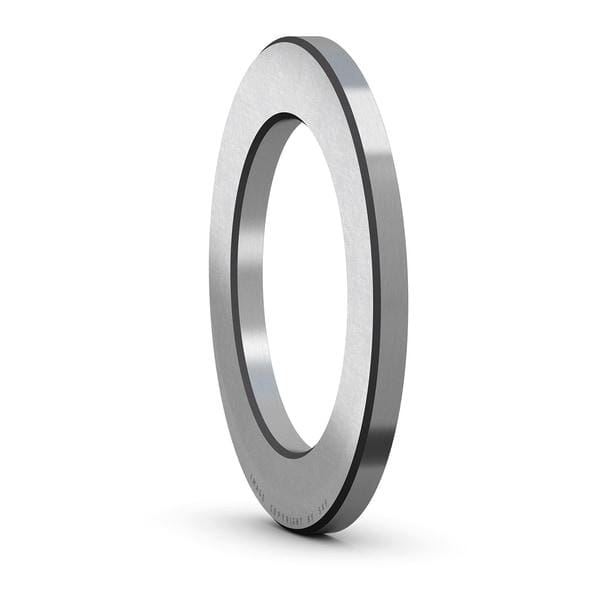

SKF Bearing washer LS5070SKF
£20.41 excl.
£24.49 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000154332

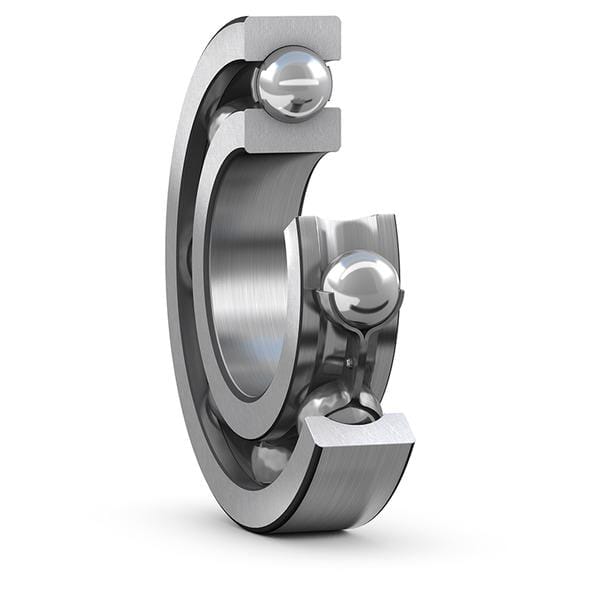

SKF Deep groove ball bearing 85x210x52mm 6417
