SKF Self-aligning ball bearing 30x62x20mm 2206ETN9C3

About this product

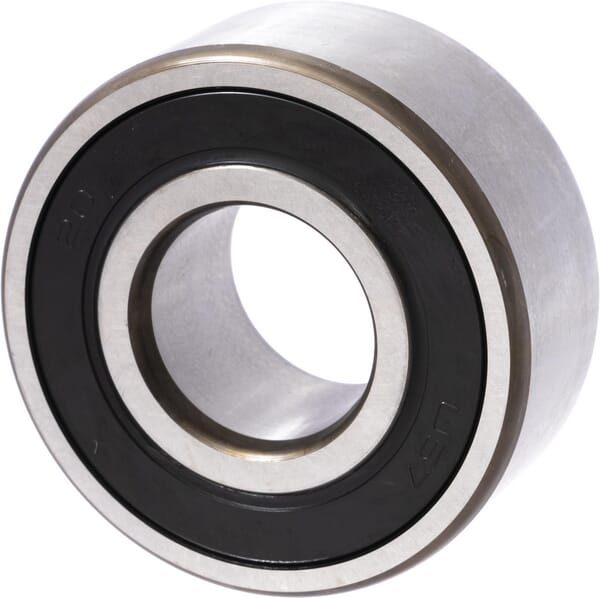

A SKF self-aligning ball bearing measuring 30 mm bore diameter, 62 mm outside diameter, and 20 mm width, sold as a single piece. The bearing features a double-row configuration with a cylindrical bore and inner ring, designed to accommodate considerable shaft deflection and alignment errors. It is rated for a basic dynamic radial load of 23,800 N and a static radial load of 6,700 N, with a contact angle of 12.07° and radial internal clearance code C3. The bearing has an open sealing arrangement and is not regreasable. Reference rotation speed is 22,000 r/min with a limiting speed of 250 r/s. The bearing is manufactured from steel and is suitable for conveyor belt systems and plants for steel production. Weight is approximately 258 g (0.245 kg). The product carries EAN 7316571022468.
