£3.37
excl. VAT
£4.04 incl. VAT
£4.04
incl. VAT
£3.37 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Colour | Blue, Black |
|---|---|
| Connection 1, thread diameter | 1/2 Inch |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 20 mm |
| Connection 2, thread diameter | 1/2 Inch |
| Connection 2, type | Quick coupling |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 20 mm |
| Connection 3, type | Quick coupling |
| Connection 3, type - male/female | Female |
| Connection no 1 diameter | 20 mm |
| Long description | Application:, Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation., Easy and fast assembly without any particular preparation of the pipe., Materials:, Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible., Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts., Grip ring: copolymer polyacetal resin (POM), white color., Conical gasket: rubber NBR or EPDM, hardness 70sh, black color, Reinforcement ring: only for female threads >=1 ½ “, stainless steel, Working temperature: -10/+45 °C, Nominal pressure (PN) and product approvals:, S16 fittings are designed and suitable to be used at PN16 pressure rate., Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark) |
| Material | Polypropylene |
| Max working pressure | 16 BAR |
| Max working temperature | 45 °C |
| Min. working temperature | -15 °C |
| Properties | BSP female thread, Clamping connection |
| Pros | By tightening the nut – Special Conical gasket – is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches. |
| Quality label | KIWA (NL) |
| Shape | Tee (T) |
| Unit | Each |
Logistics
| EAN | 8716106152896 |
|---|---|
| Unit of measure | EA |
| Weight | 88 g |
| Dimensions | 150 × 60 × 47 mm |
| Dangerous goods | No |
You might also like
BPA000156315

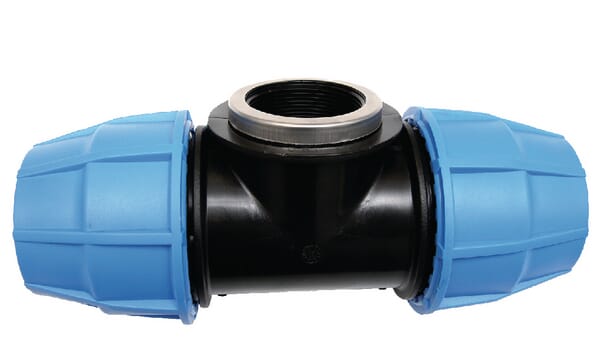

Supreme S16 T piece 20x 1/2" F 654395S
£3.37 excl.
£4.04 incl.
In stock
Expected to ship on Friday 18 September
BPA000156380

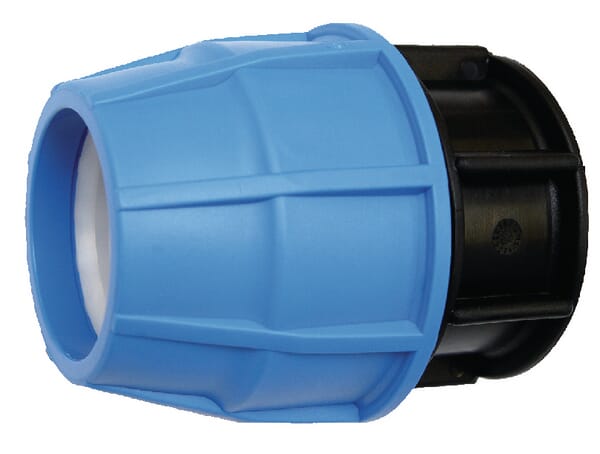

Supreme Endfitting S16 16 mm 654600S
£1.61 excl.
£1.93 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156424

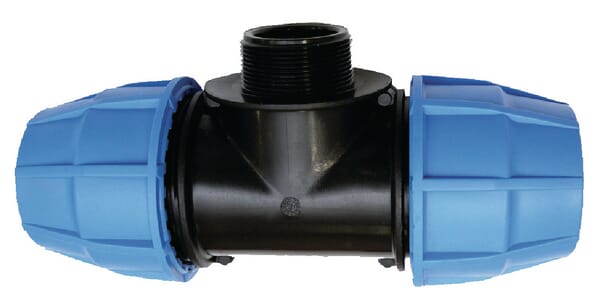

Supreme S16 T piece 50x1 1/2" male 654775S
£14.96 excl.
£17.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000156183

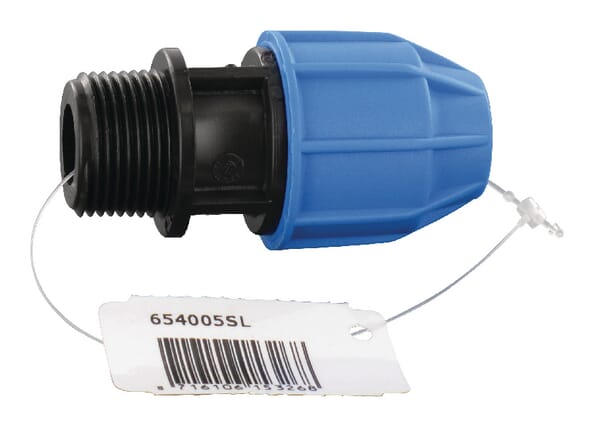

Supreme S16 coupling 16x¾" male thread 654005SL
£1.52 excl.
£1.82 incl.
In stock
Expected to ship on Friday 18 September
BPA000156438

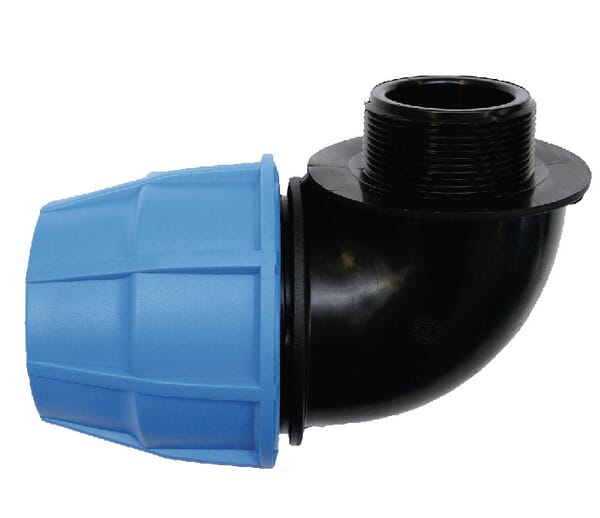

Supreme S16 elbow coupling 32x¾" male 654817S
£3.15 excl.
£3.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000229982

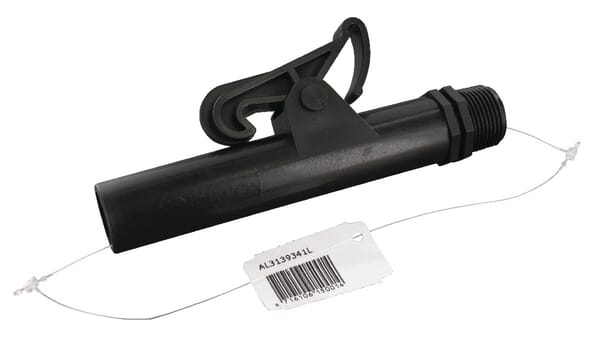

Supreme Coupling valve key 3/4" - 1" AL3139341L
