£14.96
excl. VAT
£17.95 incl. VAT
£17.95
incl. VAT
£14.96 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Colour | Blue, Black |
|---|---|
| Connection 1, thread diameter | 1-1/2 Inch |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 50 mm |
| Connection 2, type | Quick coupling |
| Connection 2, type - male/female | Female |
| Connection 3, type | Thread |
| Connection 3, type - male/female | Male |
| Connection no 1 diameter | 50 mm |
| Long description | Application:, Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation., Easy and fast assembly without any particular preparation of the pipe., Materials:, Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible., Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts., Grip ring: copolymer polyacetal resin (POM), white color., Conical gasket: rubber NBR or EPDM, hardness 70sh, black color, Reinforcement ring: only for female threads >=1 ½ “, stainless steel, Working temperature: -10/+45 °C, Nominal pressure (PN) and product approvals:, S16 fittings are designed and suitable to be used at PN16 pressure rate., Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark) |
| Material | Polypropylene |
| Max working pressure | 16 BAR |
| Max working temperature | 45 °C |
| Min. working temperature | -10 °C |
| Properties | BSP male thread, Clamping connection |
| Pros | By tightening the nut – Special Conical gasket – is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches. |
| Quality label | WRAS |
| Shape | Tee (T) |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 568 g |
| Dimensions | 260 × 125 × 102 mm |
| Dangerous goods | No |
You might also like
BPA000156299

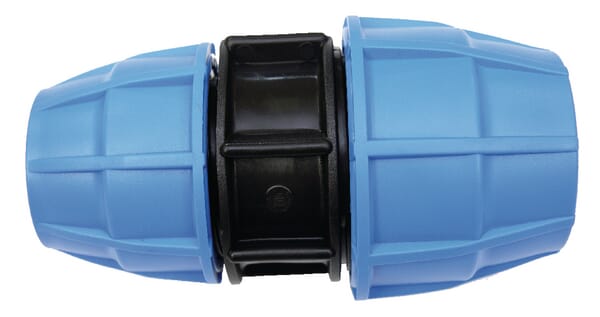

Supreme S16 reducer coupling 63x50 654310S
£14.96 excl.
£17.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000156388

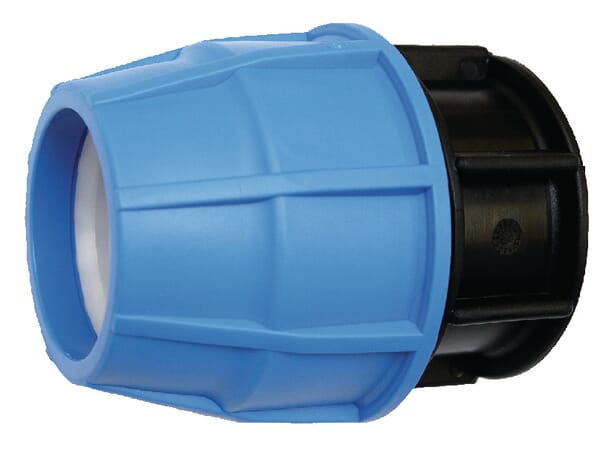

Supreme Endfitting S16 40 mm 654620S
£4.69 excl.
£5.63 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000156444

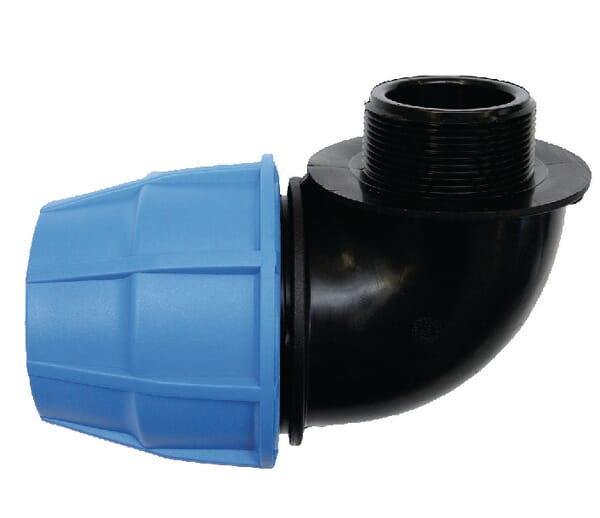

Supreme S16 elbow coupling 40x1.1/4" male 654825S
£5.43 excl.
£6.52 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000156398

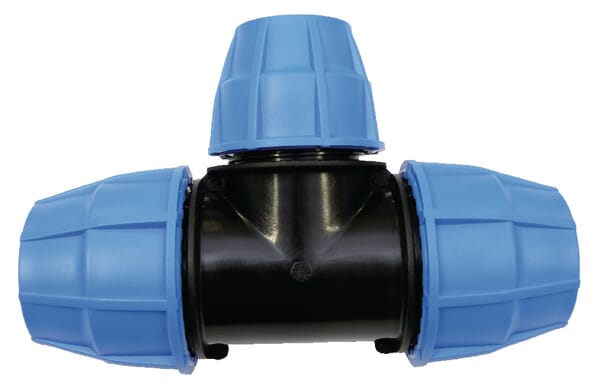

Supreme Reducer T piece S16 63x50x63 654715S
£21.40 excl.
£25.68 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000156332

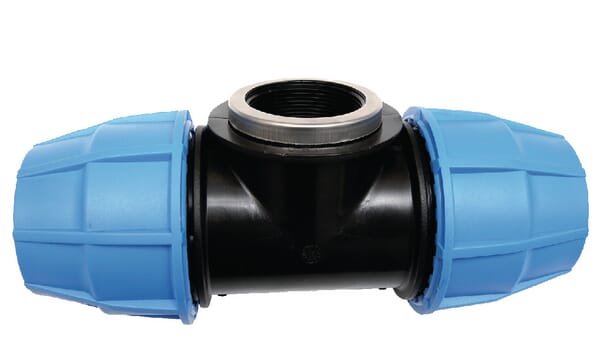

Supreme S16 T piece 50x1.1/4" F 654439S
