£15.56
excl. VAT
£18.67 incl. VAT
£18.67
incl. VAT
£15.56 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Colour | Blue, Black |
|---|---|
| Connection 1, thread diameter | 1-1/4 Inch |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 50 mm |
| Connection 2, thread diameter | 1-1/4 Inch |
| Connection 2, type | Quick coupling |
| Connection 2, type - male/female | Female |
| Connection 3, diameter | 50 mm |
| Connection 3, type | Quick coupling |
| Connection 3, type - male/female | Female |
| Connection no 1 diameter | 50 mm |
| Long description | Application:, Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation., Easy and fast assembly without any particular preparation of the pipe., Materials:, Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible., Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts., Grip ring: copolymer polyacetal resin (POM), white color., Conical gasket: rubber NBR or EPDM, hardness 70sh, black color, Reinforcement ring: only for female threads >=1 ½ “, stainless steel, Working temperature: -10/+45 °C, Nominal pressure (PN) and product approvals:, S16 fittings are designed and suitable to be used at PN16 pressure rate., Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark) |
| Material | Polypropylene |
| Max working pressure | 16 BAR |
| Max working temperature | 45 °C |
| Min. working temperature | -15 °C |
| Properties | BSP female thread, Clamping connection |
| Pros | By tightening the nut – Special Conical gasket – is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches. |
| Quality label | KIWA (NL) |

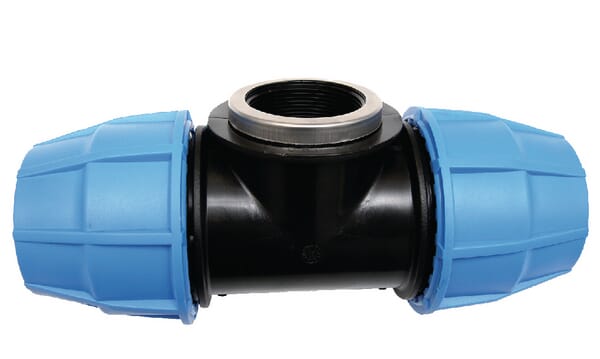

| Shape | Tee (T) |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 560 g |
| Dimensions | 250 × 108 × 96 mm |
| Dangerous goods | No |
You might also like
BPA000156433

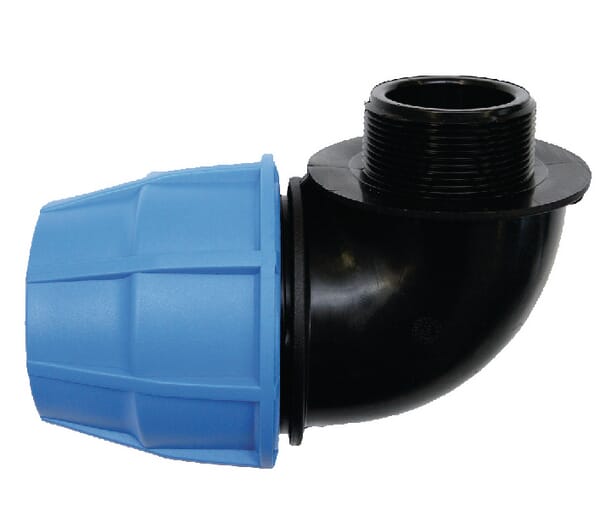

Supreme S16 elbow coupling 25x 1/2" male 654805S
£2.69 excl.
£3.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000156260

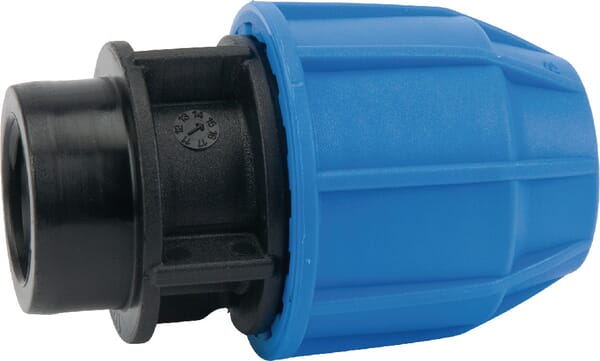

Supreme S16 coupling 32x1.1/4" female thread 654170S
£3.94 excl.
£4.73 incl.
In stock
Expected to ship on Friday 18 September
BPA000156405

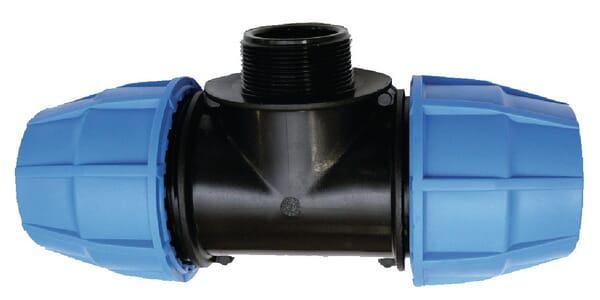

Supreme S16 T piece 20x 1/2" male 654740S
£3.32 excl.
£3.98 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156371

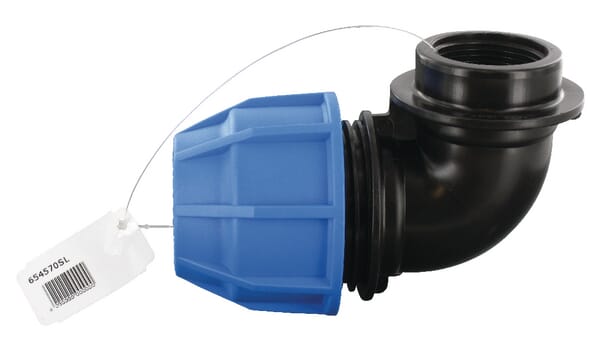

Supreme S16 elbow 40x1.1/4" female thread 654570SL
£7.23 excl.
£8.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000234951

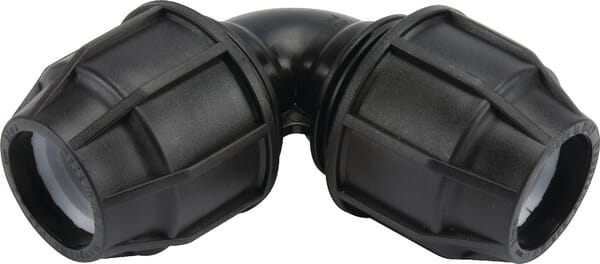

Supreme Elbow 32mm PExPE AZ99132
£3.73 excl.
£4.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000156343

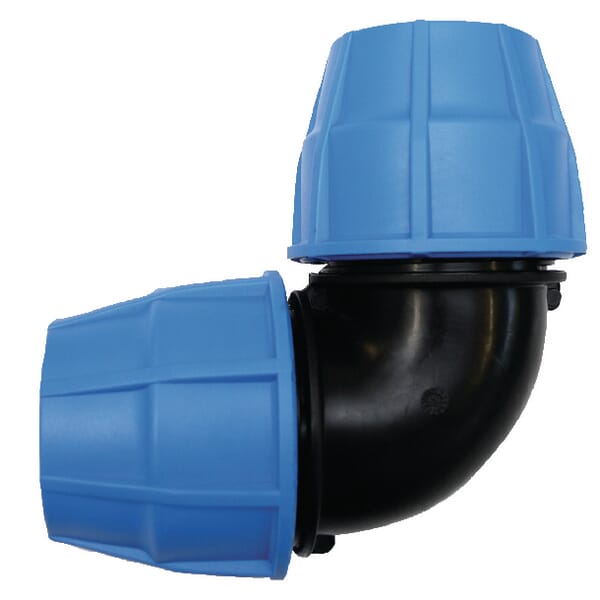

Supreme S16 elbow coupling 32 mm 654485S
