£45.42
excl. VAT
£54.50 incl. VAT
£54.50
incl. VAT
£45.42 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application range | As connection plug for electronics under the engine cover, on transmissions or in cabs |
|---|---|
| Benefits | Designed specifically for dirty environments, Wear-resistant plastic, Very user-friendly |
| Cable position type - connection no 1 | Standard |
| Connection 1, type - male/female | Female |
| Connection 2, connection type | DS16 |
| Connection 3, connection type | DS16 |
| Connection type | DS16 |
| Consists of | Individual components (self-assembly plug) |
| Content in sale unit | 1 pcs |
| Details | Dustproof and waterproof, Thermoplastic housing, Easy mounting |
| DIN standard | 40050 |
| Electric application category | Signal, Sensor |
| Housing material | Plastic |
| Max working temperature | 125 °C |
| Min working temperature | -55 °C |
| Nominal voltage | 250 V |
| Nominal voltage range | 12-48 V |
| Number of poles | 31 |
| Properties | Housing size: Shell 18 & Shell 24, Integrated cable seal, Silicone seal |
| Protection class IP | 6K9K |
| Series | HDP |
| Technical info | HDP20 is the plastic version of HD30 |
| Type | SH24 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
DS046220916141
TE Connectivity DEUTSCH Contact pin male DS16 female DS046220916141
£0.74 excl.
£0.89 incl.
DS11226390
TE Connectivity DEUTSCH Nut HD30 SH 24 DS11226390
£3.81 excl.
£4.57 incl.
DS112264
TE Connectivity DEUTSCH Spring washer HDP30 SH24 DS112264
£3.74 excl.
£4.49 incl.
DSHDT4800
TE Connectivity DEUTSCH Crimping Pliers Contact DSHDT4800
£700.18 excl.
£840.22 incl.
DSWHDS241
TE Connectivity DEUTSCH Cable guide SH 24 DSWHDS241
£17.54 excl.
£21.05 incl.
DSWHDS242
TE Connectivity DEUTSCH Cable guide SH 24 90º DSWHDS242
£26.52 excl.
£31.82 incl.
Logistics
| EAN | 8719607002622 |
|---|---|
| Unit of measure | EA |
| Weight | 55 g |
| Dimensions | 50 × 50 × 39 mm |
| Dangerous goods | No |
You might also like
BPA000250409

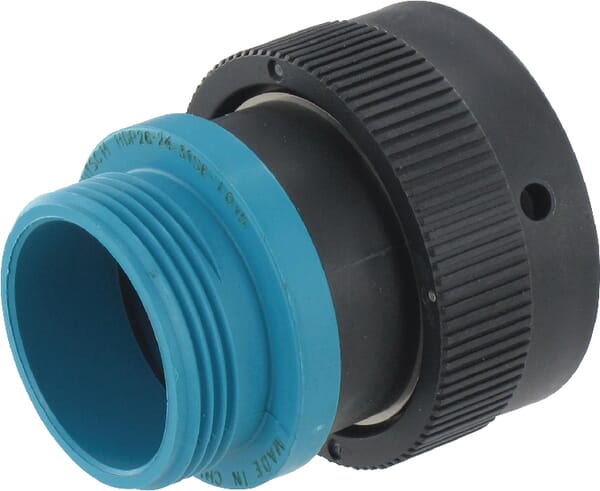

TE Connectivity DEUTSCH Plug housing 31 P. Female HDP20 DSHDP262431SEL015
£74.18 excl.
£89.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000250405

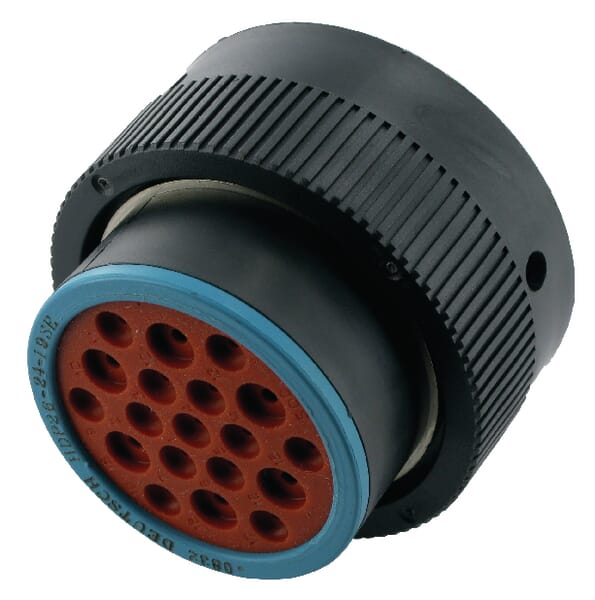

TE Connectivity DEUTSCH Plug housing 19 P. Female HDP20 DSHDP262419SE
